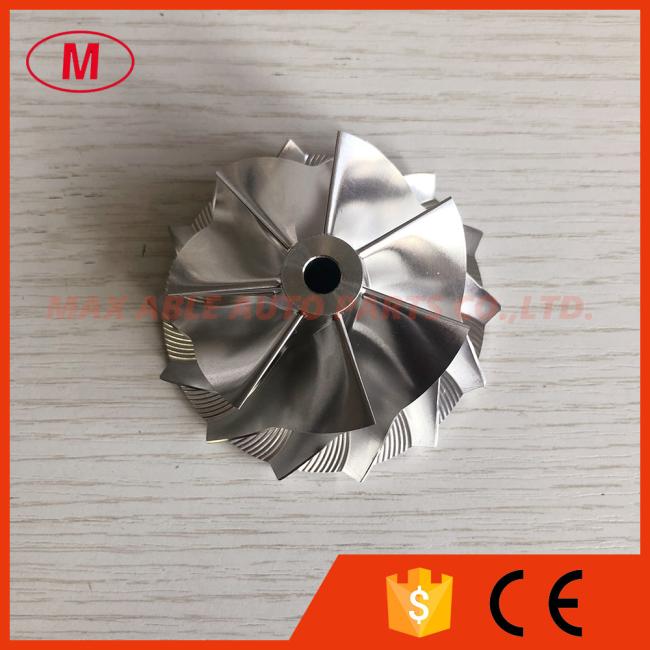

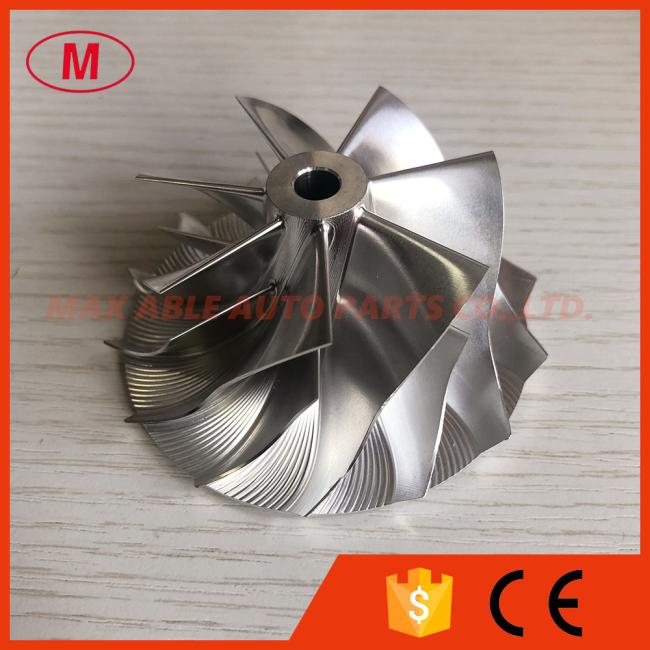

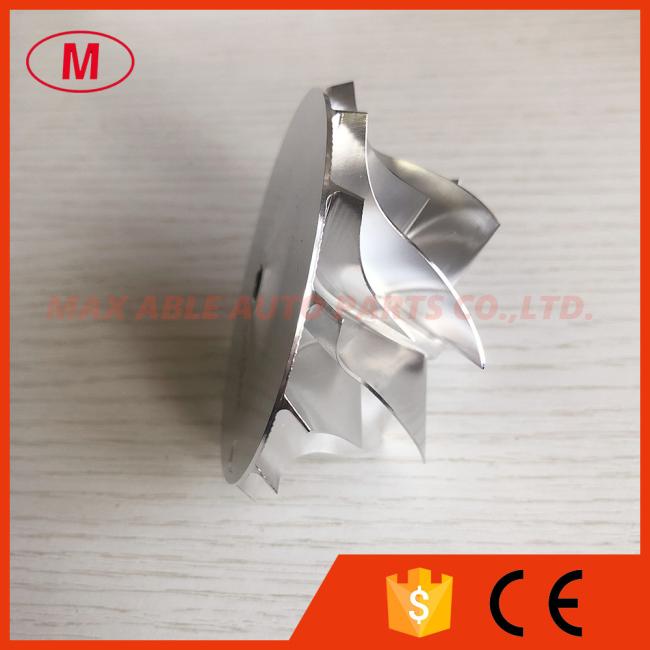

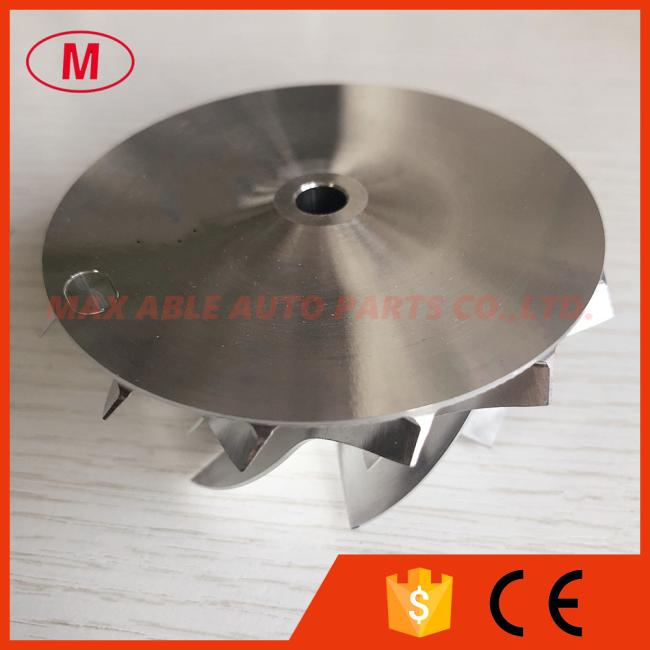

TD05H reverse 54.56/70.01mm 7+7 blades high performance turbo milling/aluminum 2618/billet turbo compressor wheel

1.Model:TD05H reverse rotation

2. TD05H reverse 54.56/70.01mm 7+7 blades high performance turbo milling/aluminum 2618/billet turbo compressor wheel
3.Size:

Nose diameter:14.62mm

Inducer:54.56mm

Exducer:70.01mm

Tapered tip exducer:75.05mm

Tip height:5.37mm

Superback:1.60mm

Overall height:35.10mm

Bore size:6.50mm

bore type:through

Trailing angle:45 DEGREE

Cutback:-0.00

SP Height angle:-4.30

Blades height:31.87mm

Splitter height:19.70mm

7+7 blades

reverse rotation

Tapered tip angle:30 degree

It is custom size ,please check carefully before buying.

4.Good quality and competitive price.

5.if you want to know more details ,please send email to me !

We have more model you want.
