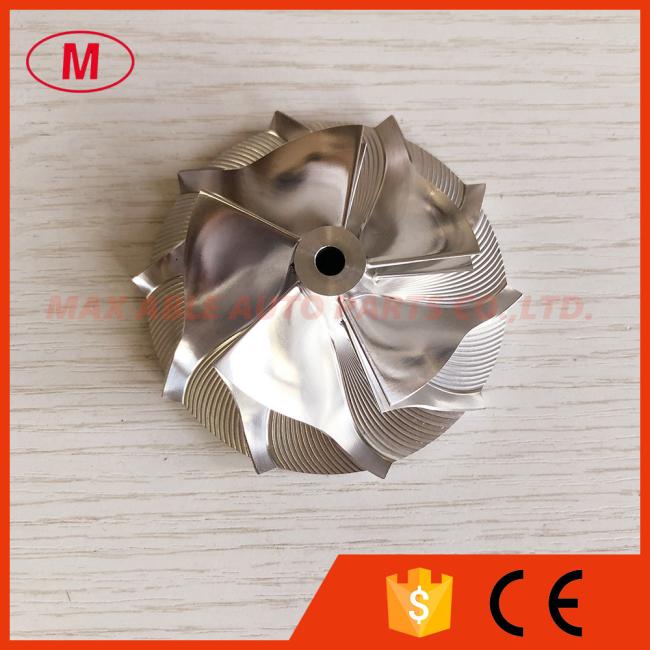

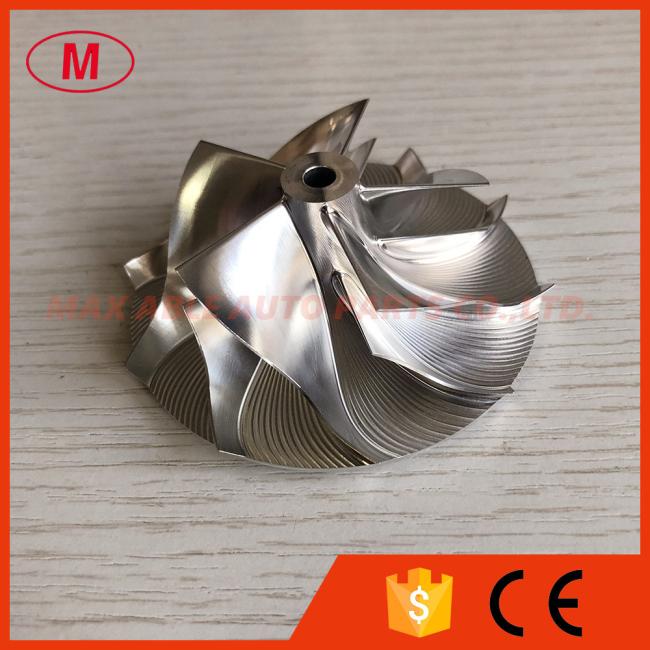

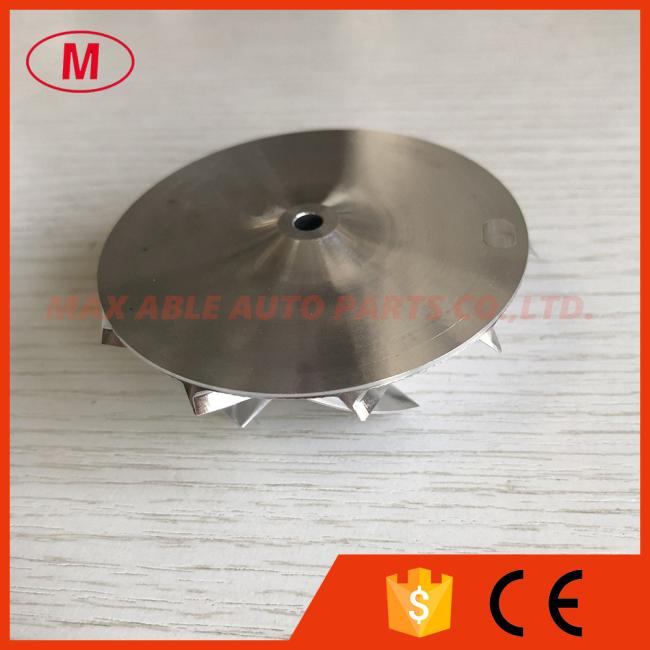

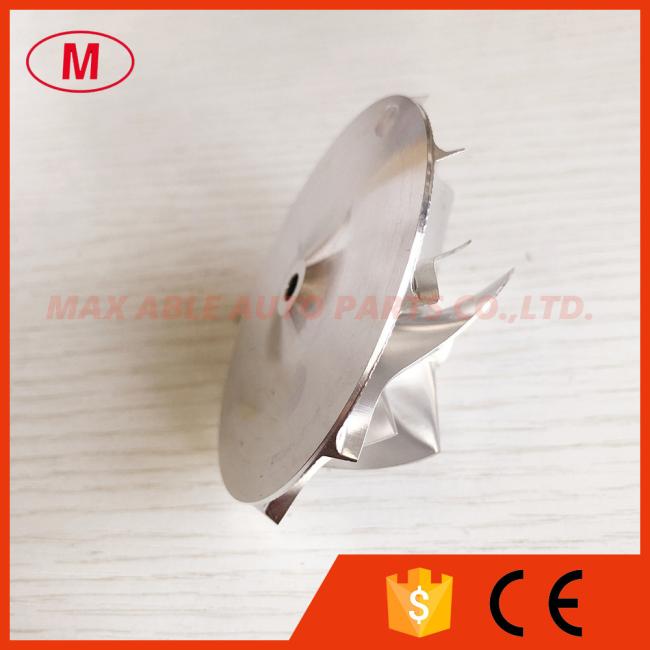

K04 49.62/68.58mm 5+5 blades high performance turbo milling/aluminum 2618/billet compressor wheel

1.Model:K04 forward
2.K04 5+5 blades 49.62/68.58mm high performance turbo milling/aluminum 2618/billet compressor wheel

3.SIZE:

Nose diameter:11.55mm

inducer:49.62mm

Exducer:68.58mm

Tapered tip exducer:72.83mm

Tip height:4.48mm

Superback:2.60mm

Overall height:27.95mm

bore size :4.61mm

bore type:through

Trailing Angle:60 degree

Cutback:4.9mm

SP Height angle:-5.00

Blades height:23.75mm

Splitter height:14.00mm

5+5 blades

Forward rotation

Tapered tip Angle:30 degree

It is custom size ,please check carefully before buying.

4.Good quality and competitive price

5.please email to me or talk to me on online ,if you want to know more details.

All the compressor wheels have been balanced.

We can produce as your requirement.
