TD04 forward 55.28/65.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel

Price Negotiable
Price: DISCUSS
MOQ: 1PC
Delivery Time: 3-7 DAYS
Brand: no
Product Description
1.Model:TD04 Forward

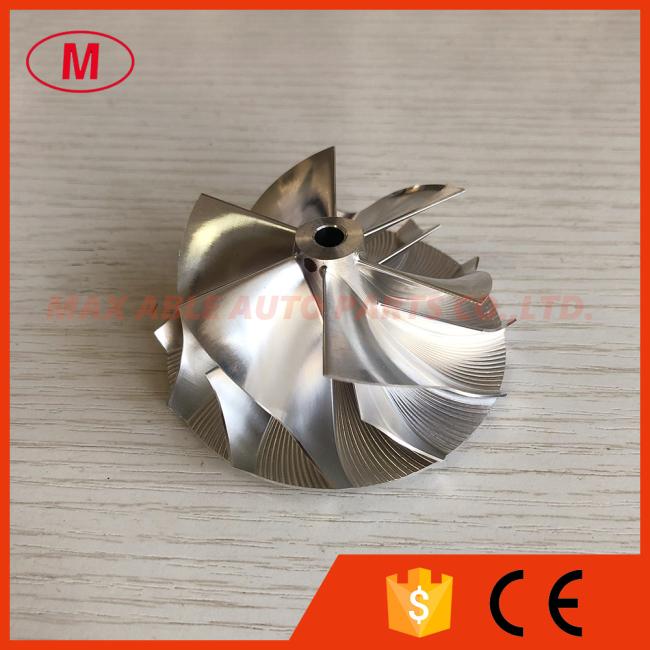

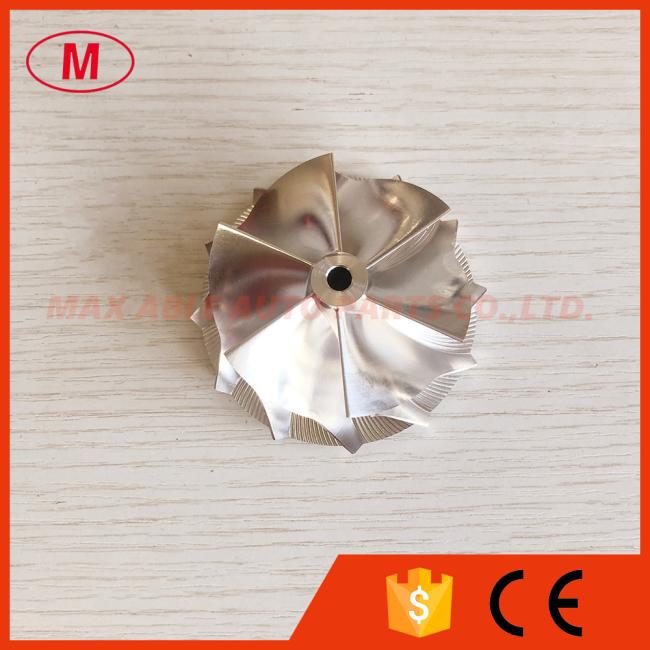

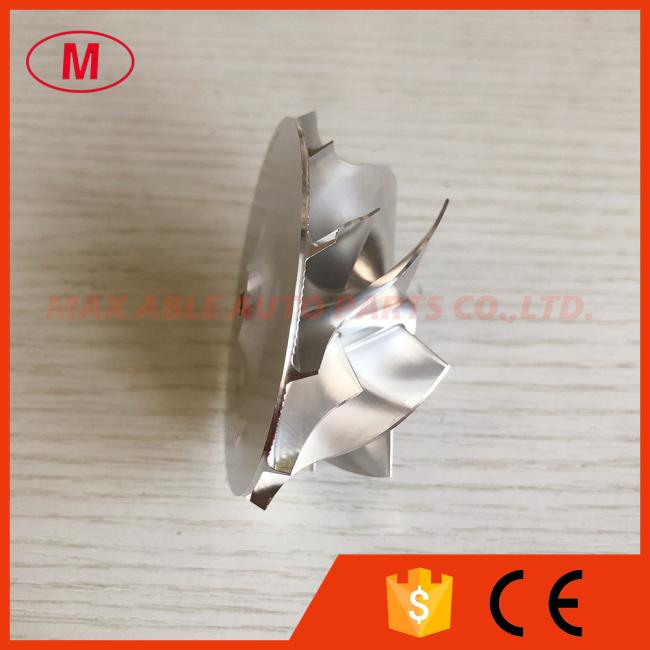

2.TD04 55.28/65.00mm 6+6 blades high performance turbo milling/aluminum 2618/billet compressor wheel

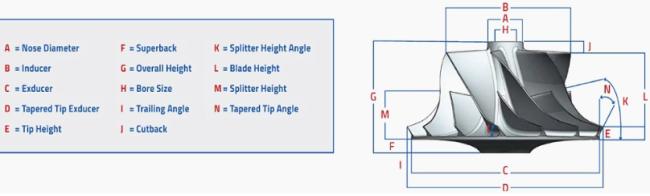

3.Size:

Nose diameter:11.50mm

Inducer:55.28mm

Exducer:65.00mm
Tapered tip exducer:68.97mm
Tip height:4.44mm
Superback:2.80mm
Overall height:30.50mm
Bore size:5.00mm
Trailing angle:60
Bore type:Through
Cutback:0.0
SP Height angle:0.0
Blade height:25.70mm
Splitter height:13.50mm
6+6 blades
Forward rotation
Tapered tip angle:30 degree
It is custom size,please check carefully before buying
4.High quality ,competitive price and good service.
5.We can also produce as your requirement.
All the compressor wheel have been balanced.
6.If you want more details, please send email to me or talk to me online.
We will try our best to meet your needs.
