GT15-25 436131-0002/436131-0016 38.62/52.19mm 11+0 blades high performance point milling/snake curve Turbo billet compressor wheel

1. MODEL:GT15-25 forward

2. GT15-25 436131-0002/436131-0016 38.62/52.19mm 11+0 blades high performance point milling/snake curve Turbo Billet/milling/aluminum 2618 compressor wheel for 452204-0001, 452204-0003, 452204-0004, 452204-0005, 452204-0007 / 454061-0006, 454061-0007, 454061-0008, 454061-0009, 454061-0010, 454061-0011, 454061-0012, 454061-0014 / 454135-0001, 454135-0002, 454135-0006 / 701196-0001, 701196-0002, 701196-0006, 701196-0007 / 704594-0001, 704594-0004, 704594-0009 / 705954-0004, 705954-0009

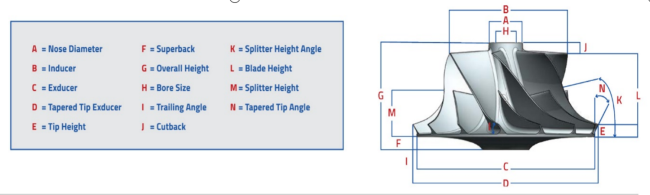

3.Size:

Nose Diameter:10.42mm

inducer:38.62mm

Exducer:52.19mm

Tapered tip exducer:56.39mm

Tip height:4.64mm

Superback:2.39mm

Overall height:26.07mm

Bore size:5.08mm

bore type:through

Trailing angle:60 degree

Cutback:6.0mm

SP height angle:0.00

Splitter height:0.00

Blade height:19.10mm

11+0 blades

forward rotation

Tapered tip angle:30 degree

it is custom size ,please check carefully before buying

Application:

452204-0001, 452204-0003, 452204-0004, 452204-0005, 452204-0007 / 454061-0006, 454061-0007, 454061-0008, 454061-0009, 454061-0010, 454061-0011, 454061-0012, 454061-0014 / 454135-0001, 454135-0002, 454135-0006 / 701196-0001, 701196-0002, 701196-0006, 701196-0007 / 704594-0001, 704594-0004, 704594-0009 / 705954-0004, 705954-0009​

4.High quality and competitive price.

5.Any questions please send email to me.

All the billet compressor wheels have been balanced.

We have more size ,if you want ,please don't hesitate to contact me.
