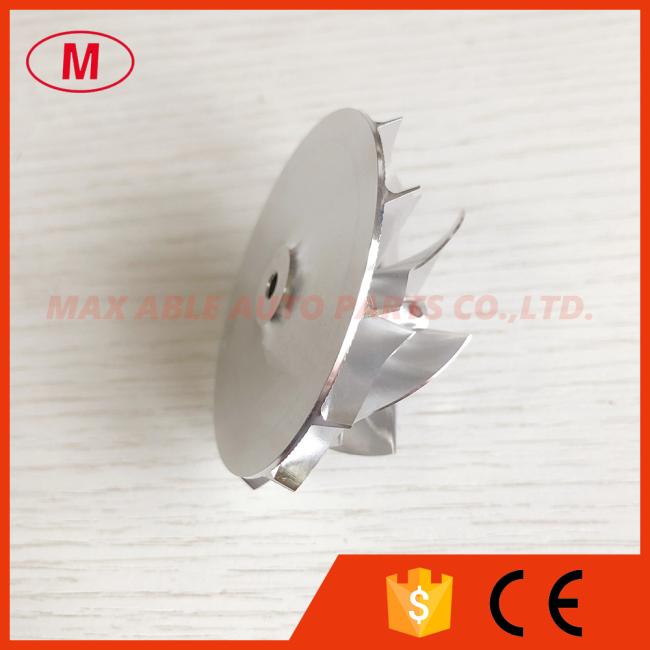

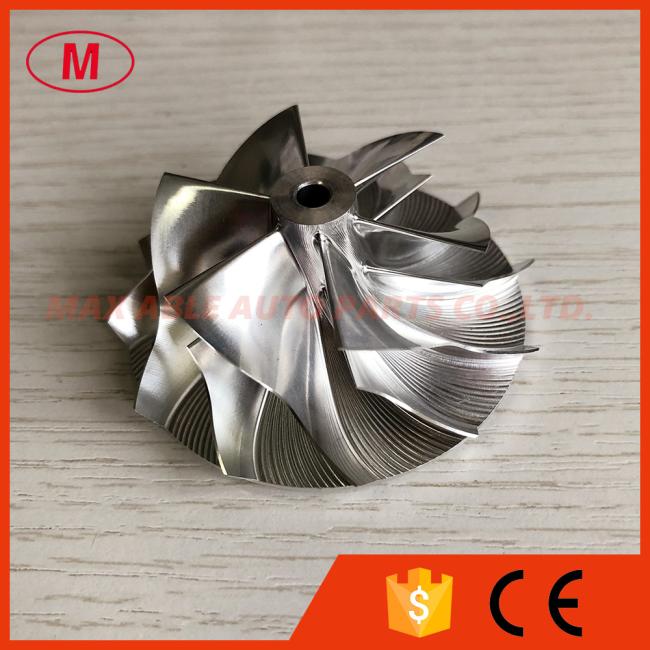

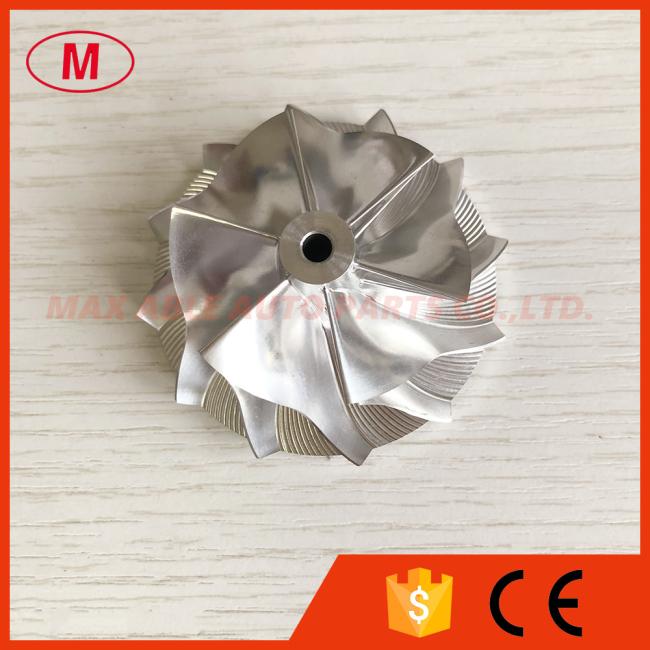

TD03 42.20/55.00mm 6+6 blades high performance Turbo milling/aluminum 2618/billet compressor wheel

Price Negotiable
Price: DISCUSS
MOQ: 1PC
Delivery Time: 3-7 DAYS
Brand: no
Product Description


1. MODEL:TD03 forward

2.TD03 42.20/55.00mm 6+6 blades high performance Turbo milling/aluminum 2618/billet compressor wheel

3. Size :

Nose diameter:10.24mm

Inducer:42.20mm

Exducer:55.00mm

Tapered tip exducer:59.01mm

Tip height:4.60mm

Superback:1.68mm

Overall height:24.00mm

bore size :4.00mm

Trailing angle:60

Cutback:2.0

SP Height angle:0.00

blades height:20.30mm

Splitter height:11.85mm

6+6 Blades

forward rotation

Tapered tip angle:29.1degree

It is custom size ,please check carefully before buying.

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced
