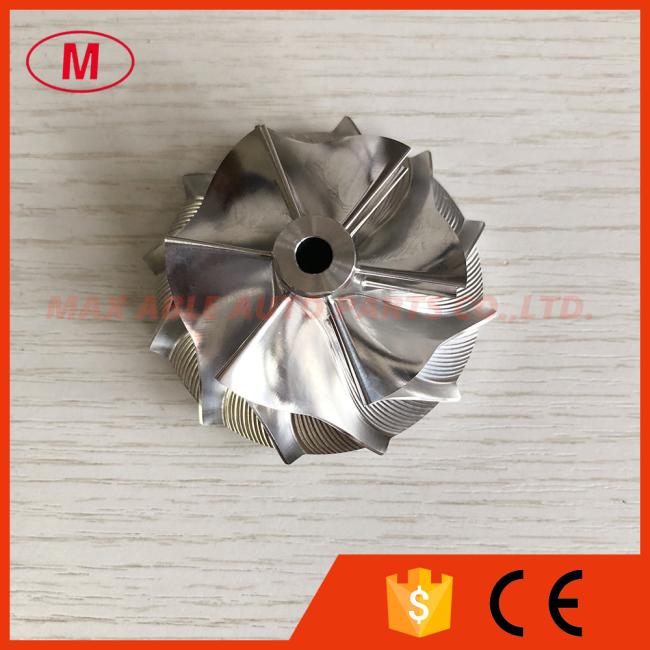

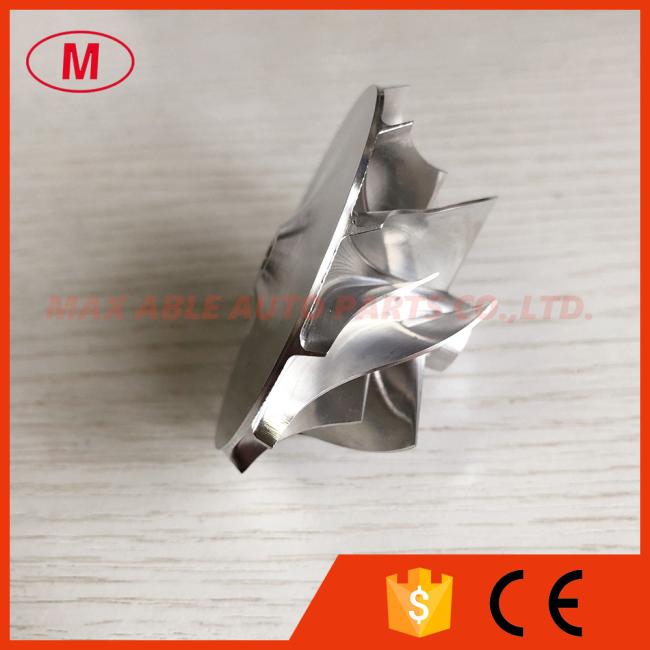

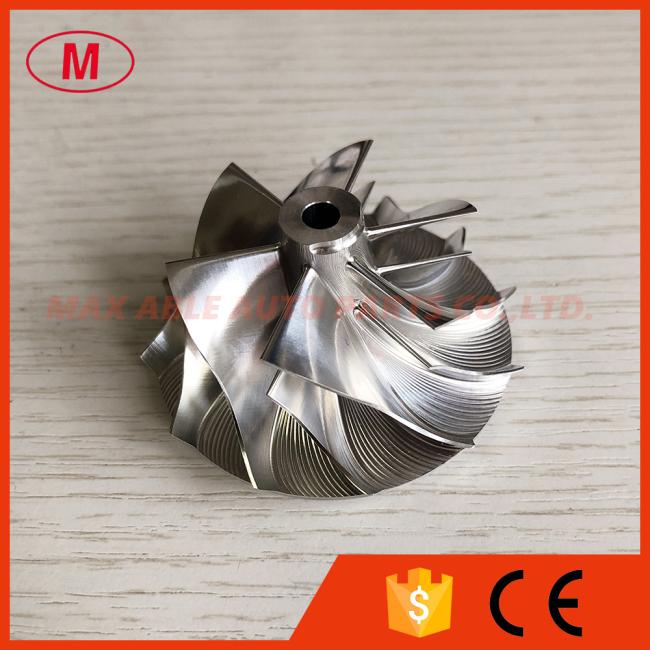

GT15-25 6+6 blades 43.36/56.03mm 784366-0001HF performance turbo milling/aluminum 2618/billet compressor wheel for BENZ

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description

1.Model:GT15-25 forward

2.GT15-25 6+6 blades 43.36/56.03mm 784366-0001HF turbo billet/milling/aluminum 2618 compressor wheel for BENZ 765155-0007

3.Size:

Nose diamter:11.31mm

inducer:43.36mm

Exduder:56.03mm

Tapered tip exducer:59.95mm

Tip height:4.40mm

Superback:3.68mm

Overall height:30.80mm

bore size :5.08mm

bore type:through

Trailing angle:60 degree

Cutback:0.0

SP height angle:0.00

Blade height:22.94mm

Splitter height:14.90mm

Fit for OE compressor housing

6+6 blades

Forward rotation

Tapered tip angle:30 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

6.Application:

765155-0007



The more models we also have.

All the billet compressor wheels have been balanced.
