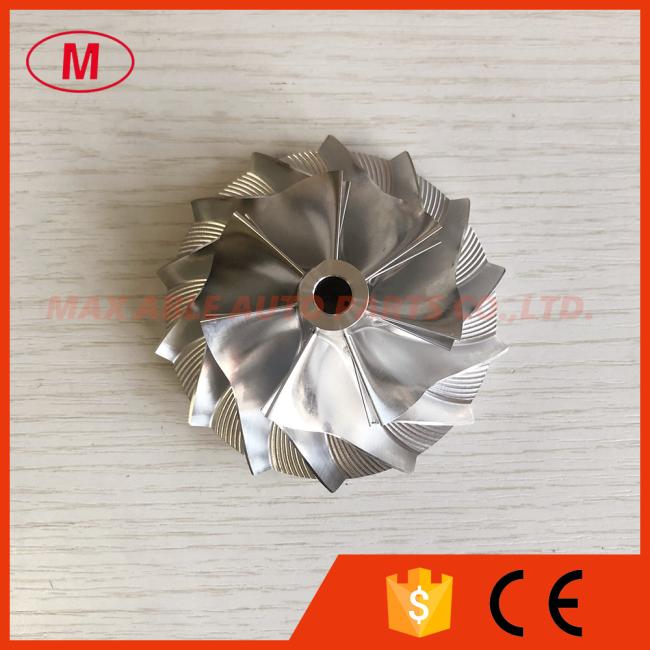

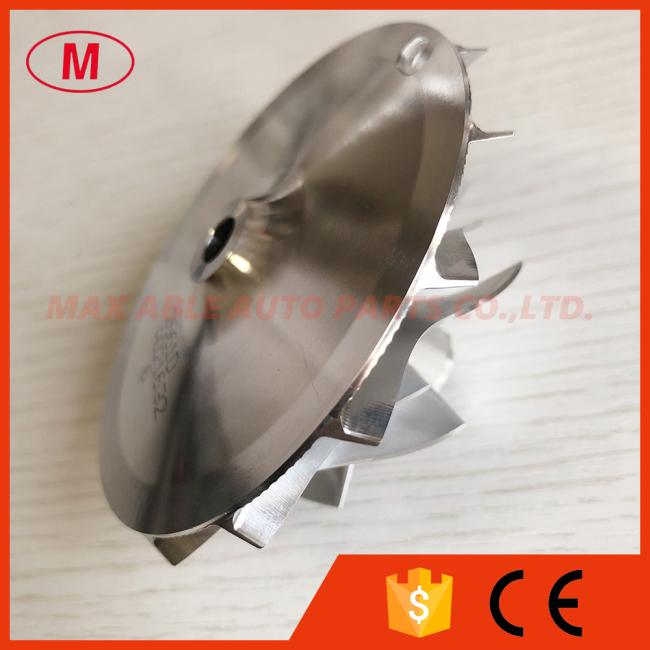

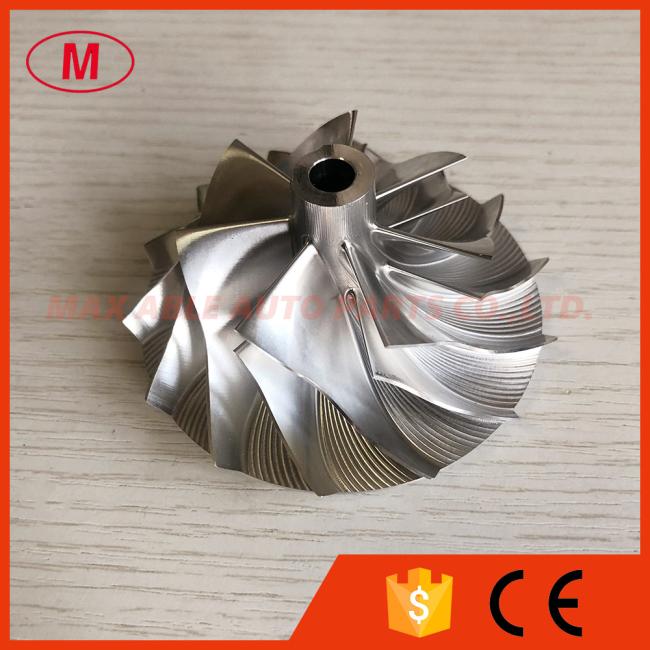

K26 52.40/75.60mm 7+7 blades turbocharger milling/aluminum 2618/billet compressor wheel

1.Model:K26 Forward

2.K26 52.40/75.60mm 7+7 blades turbocharger billet/milling/aluminum 2618 compressor wheel

3.Size:

Nose diameter:13.25mm

Inducer:52.40mm

Exducer:75.60mm

Tapered tIp exducer:80.31mm

Tip height:5.08mm

Superback:5.30mm

Overall height:40.30mm

Bore size:7.02mm

bore type:through

Trailing angle:60 degree

Cutback:3.0mm

SP Height angle:-3.10

Blade height:25.91mm

Splitter height:17.00mm

7+7 blades

Forward rotation

Tapered tip angle:30 degree

It is custom size,please check carefully before buying.

3.High quality and competitive price.

4.if you want more details, please send email to me.

We can produce as your requirement.

All the compressor wheels have been balanced.

The more models we also have.
