GT15-25 436131-0002 38.58/52.02mm 6+6 blades turbocharger milling/billet compressor wheel for 452204/454061/454135/70595

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description
1.Model:GT15-25 Forward

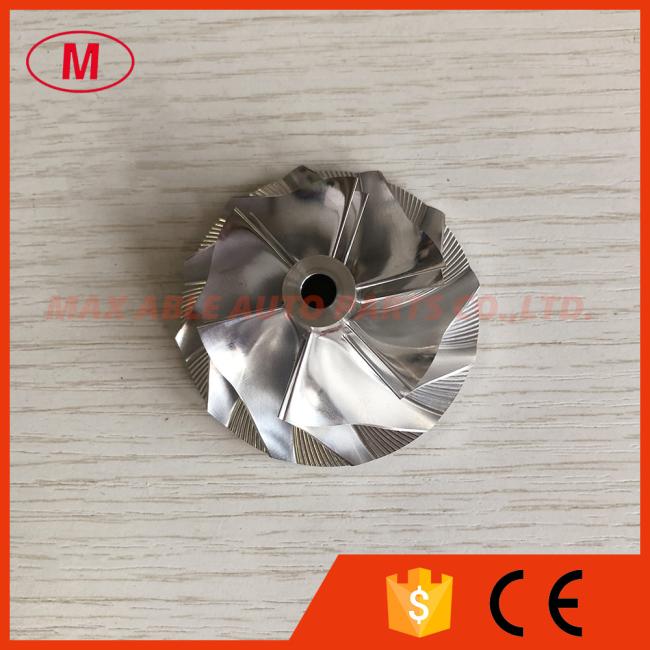

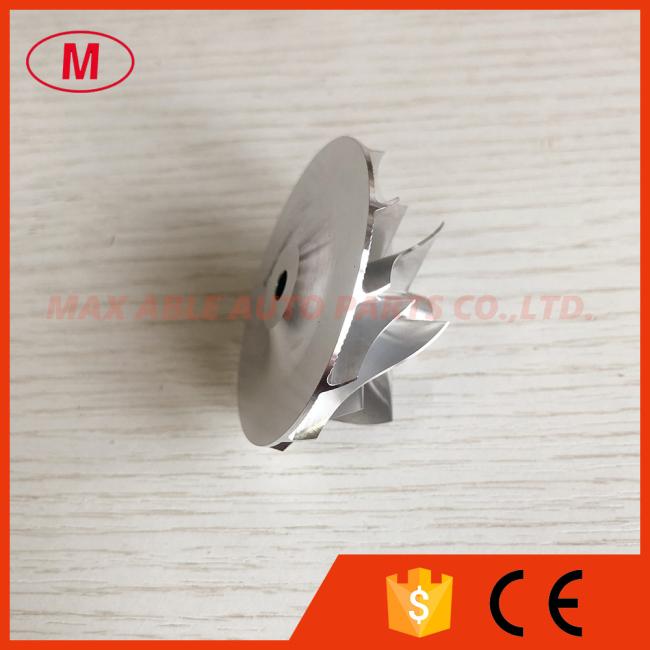

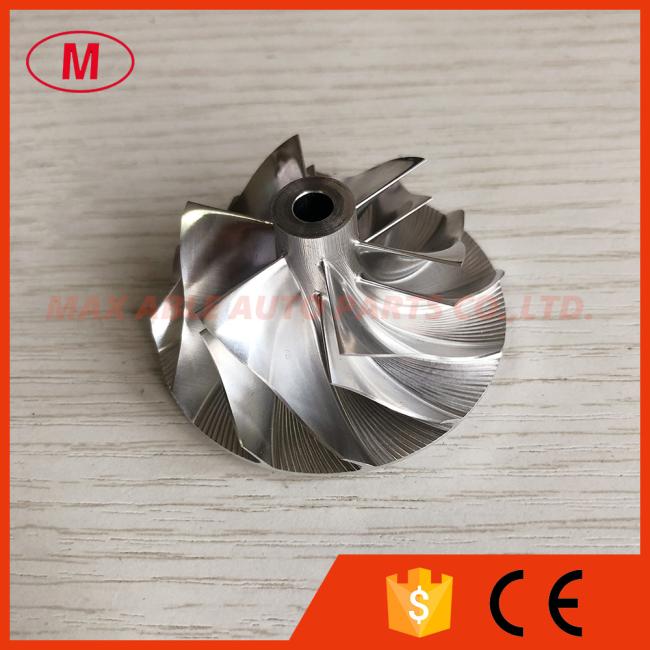

2.GT15-25 436131-0002 38.58/52.02mm 6+6 blades turbocharger billet/milling/aluminum 2618 compressor wheel for 452204/454061/454135/70595

3.Size:
Nose diameter:10.54mm
Inducer:38.58mm
Exducer:52.02mm
Tip height:4.86mm
Superback:2.37mm
Overall height:26.04mm
Bore size:5.08mm
bore type:through
Trailing angle:50 degree
Cutback:0.0
SP Height angle:1.00
Blade height:18.77mm
Splitter height:12.50mm
6+6 blades
Forward rotation
Tapered tip angle:0 degree
It is custom size ,please check carefully before buying.
3.High quality and competitive price.

4.if you want more details, please send email to me.

We can produce as your requirement.minimun order 5pcs

All the compressor wheels have been balanced.

The more models we also have.
