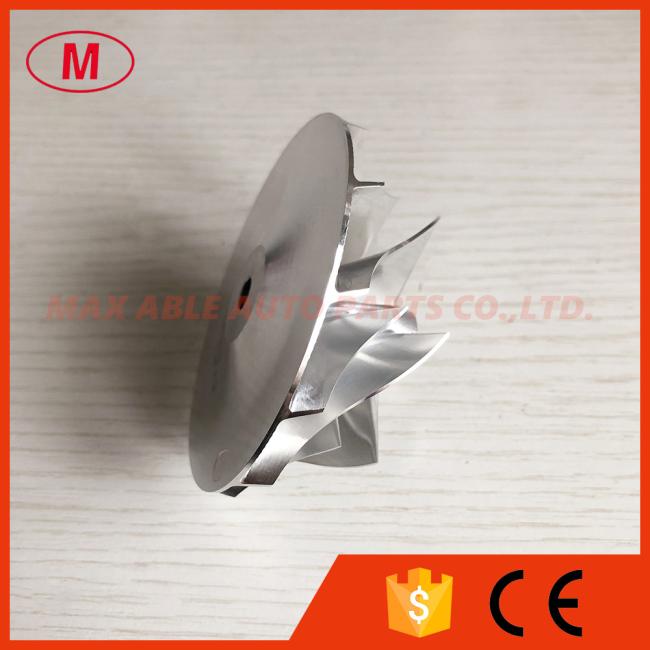

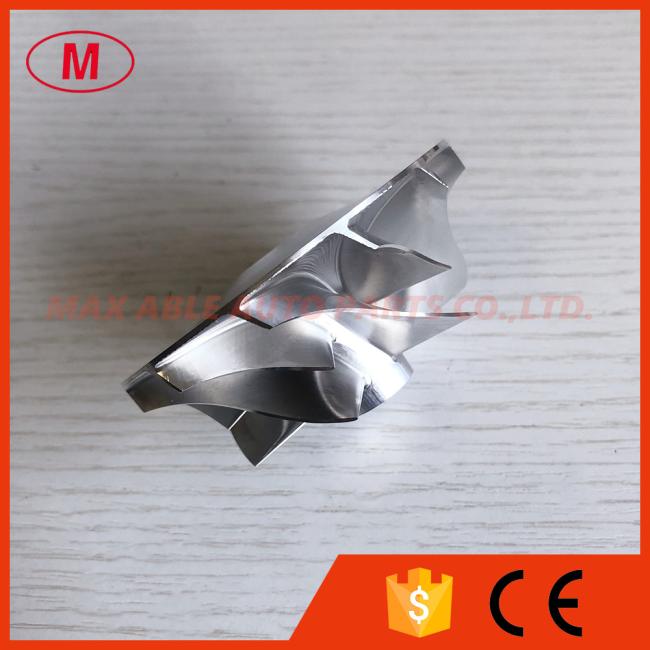

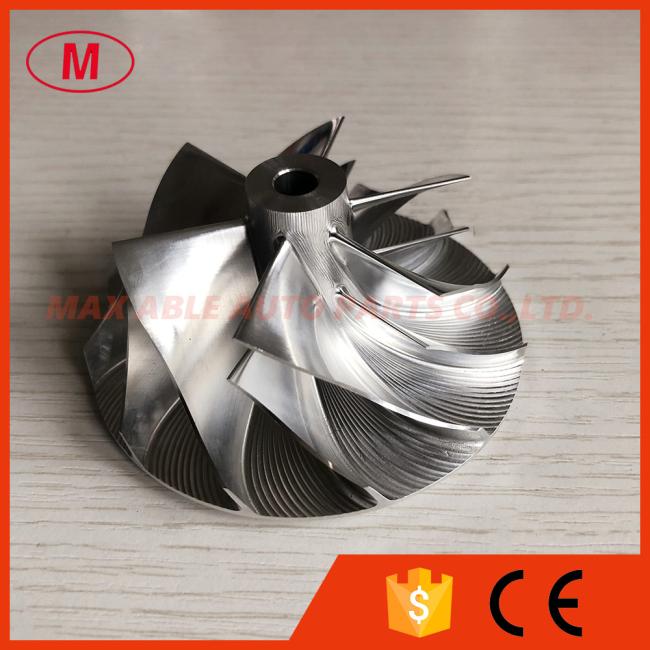

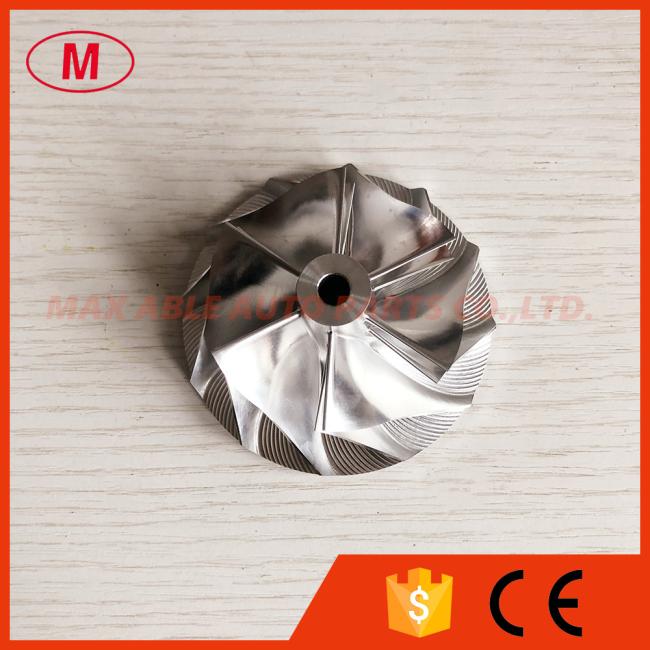

TD05H forward 49179-02712 56.24/75.00mm 6+6 blades turbo aluminum 2618/milling/ Billet compressor wheel for 49179-02712
Price:
Negotiable
MOQ:
1PC
Delivery Time:
3-7 days
Brand:
NO
Product Description
1. MODEL:TD05H forward
2.TD05H forward 49179-02712 56.24/75.00mm 6+6 blades turbo aluminum 2618/milling/ Billet compressor wheel for 49179-02712
3.Size:
Nose diameter:15.28mm
Inducer:56.24mm
exducer:75.00mm
Tip height:6.58mm
Superback:2.70mm
Overall height:34.78mm
bore size :6.50mm
Trailing Angle:60
Cutback:0.00
Blade height:27.04mm
SP height angle:-7.00
Splitter height:18.35mm
6+6 blades forward
Tapered tip angle:0 degree
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the compressor wheel have been balanced.
