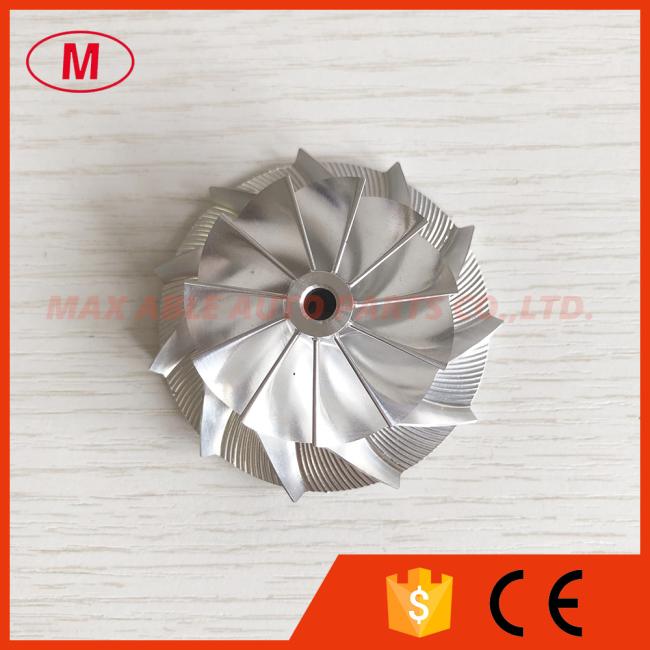

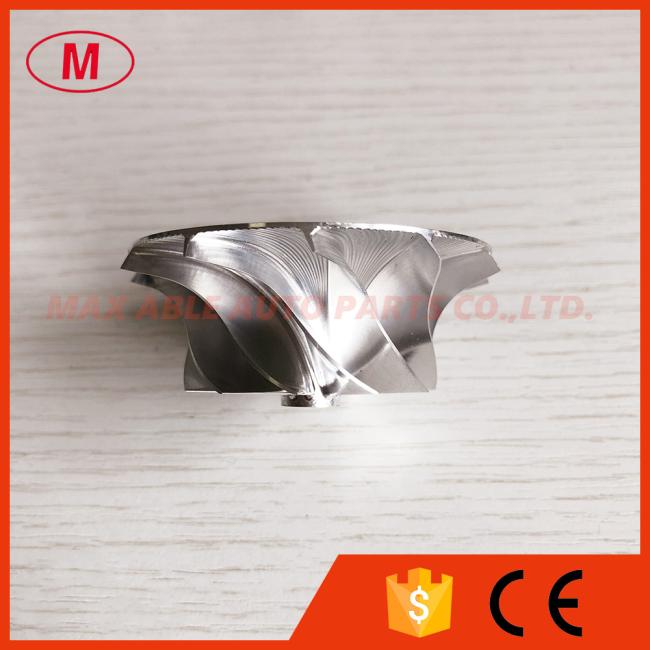

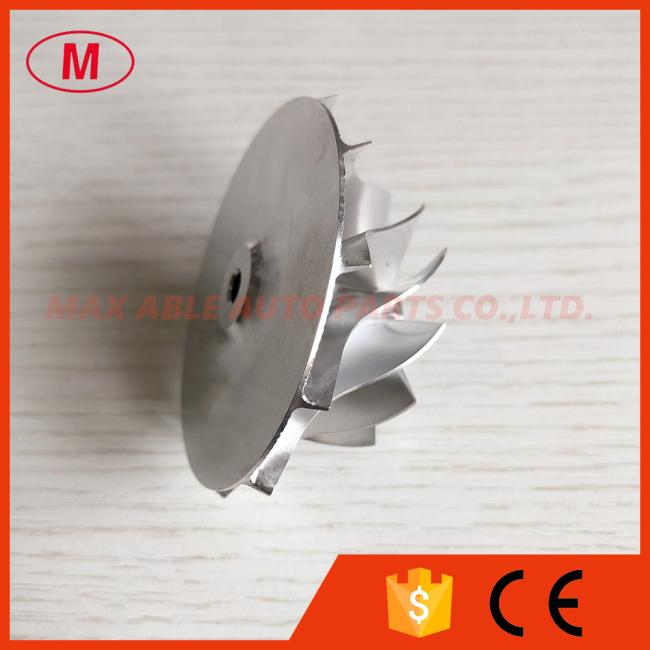

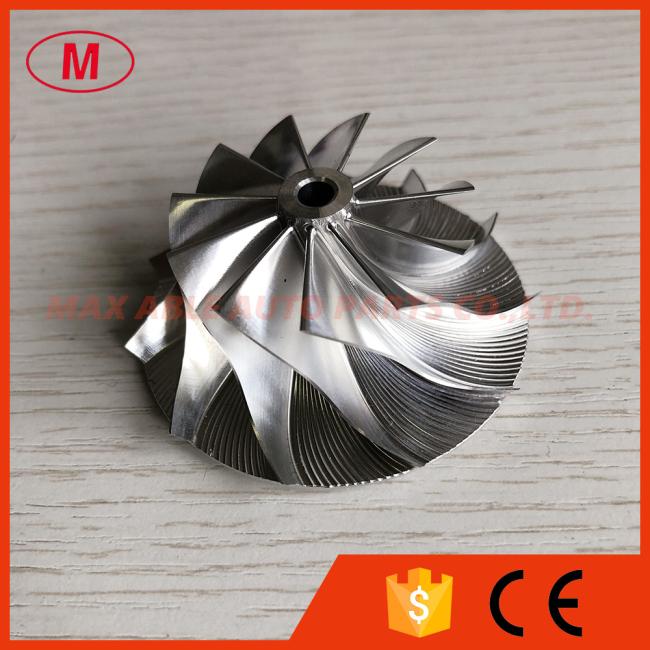

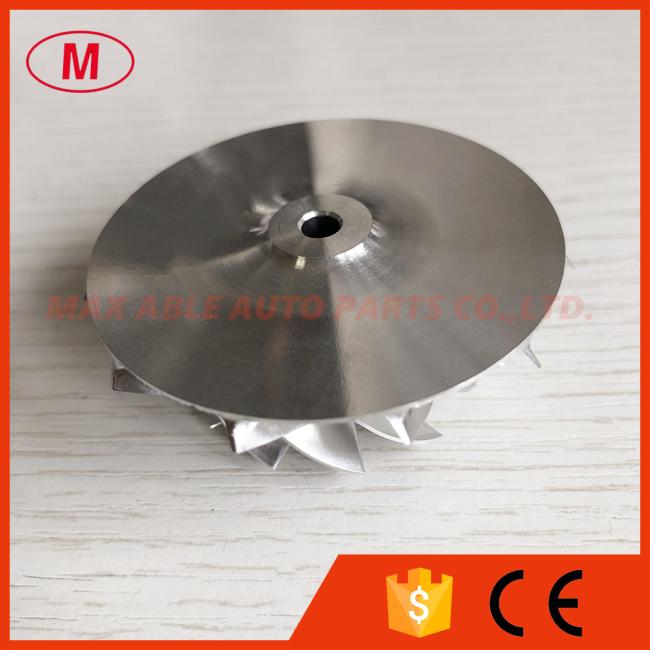

K04 5306-123-20166 39.30/56.08mm 11+0 blades high performance Turbo Billet/milling/aluminum 2618 compressor wheel

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description

1. MODEL:K04 forward

2. K04 5306-123-20166 39.30/56.08mm 11+0 blades high performance Turbo Billet/milling/aluminum 2618 compressor wheel for 5309-988-0129/0137/0207
3.Size:

Nose diameter:9.38mm

Inducer:39.30mm

Exducer:56.08mm

Tapered tip Exducer:59.43mm

Tip height:3.90mm

Superback:1.80mm

Bore size :4.61mm

Overall height:25.60mm

Trailing Angle:50

Cutback:3.0

Blade height:22.16mm

SP height Angle:0.00

Splitter height:0.00

Tapered tip Angle:30 degree

11+0 blades

Forward rotation

It is for OE compressor housing

3.Application:

5309-988-0129

5309-988-0137

5309-988-0207

5304-970-0086

5304-970-0103

5304-970-0129

5304-970-0139

4.High quality and competitive price.
