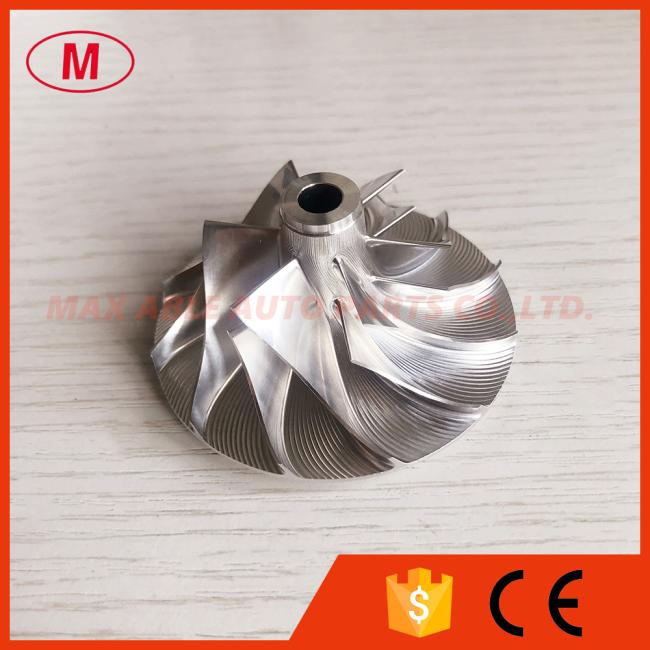

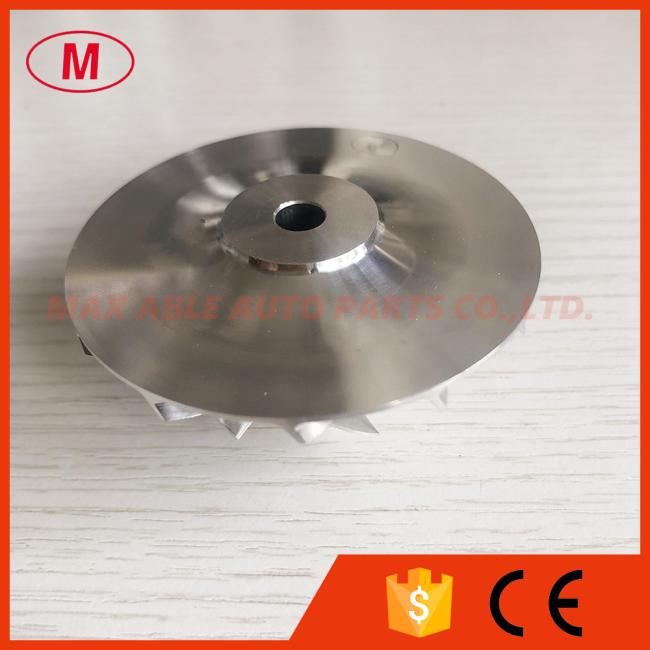

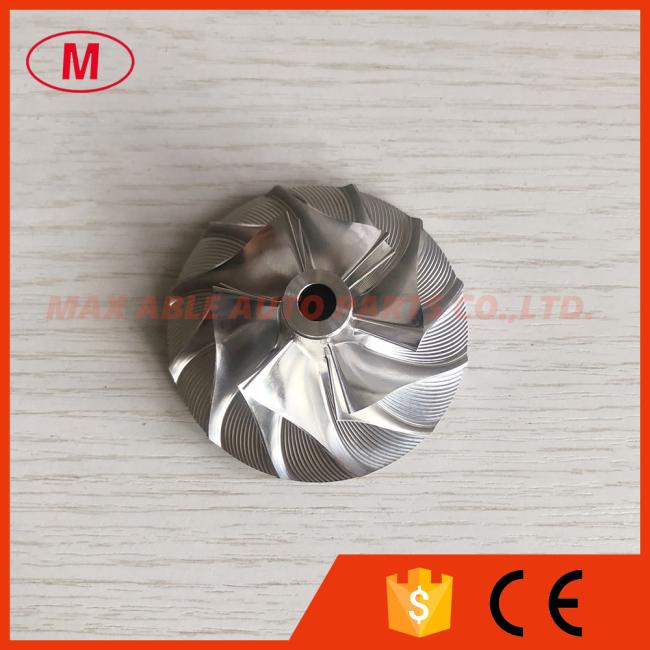

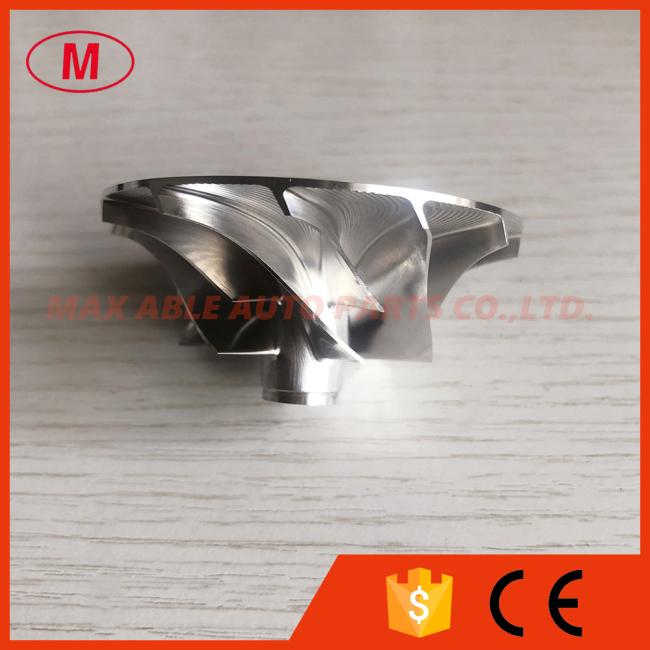

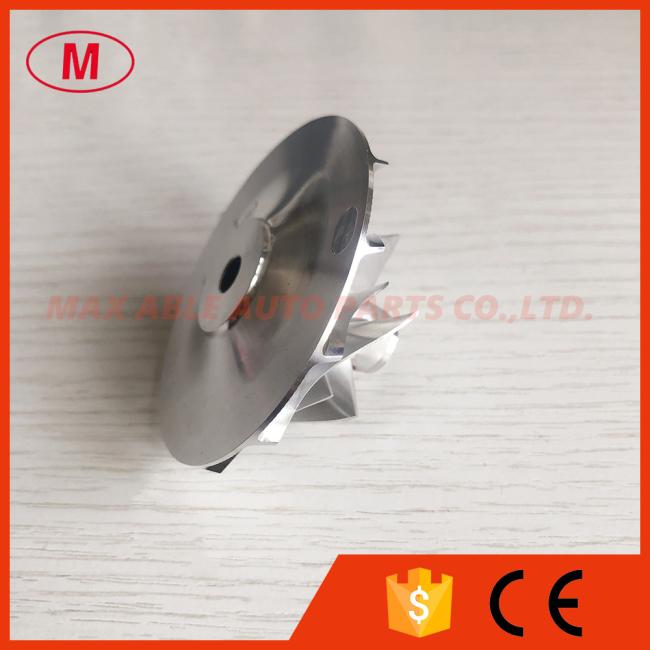

TA31 37.74/60.25mm 6+6 blades 409096-00116205-81-8150 milling/aluminum 2618/billet compressor wheel for 452012-0001

1. MODEL:TA31 forward

2. TA31 37.74/60.25mm 6+6 blades 409096-0011 6205-81-8150 turbo milling/aluminum 2618/billet compressor wheel for 452012-0001/154104-0001/465296-0005/465318-0002/465354-0002

3.Size:

Nose diameter:12.16mm

inducer:37.74mm

Exduder:60.25mm

Tip height:4.14mm

Superback:3.81mm

Overall height:31.00mm

bore size:6.35mm

Trailing angle:60 degree

Splitter height:13.65mm

SP height angle:-4.50

Cutback:1.0

Blades height:20.50mm

6+6 blades

forward rotation

Tapered tip angle:0 degree

Fits OE Compressor Housing

4.High quality and competitive price.

5.if you want more details, please send email to me.

6.Application:

452012-0001

154104-0001

465296-0005

465318-0002

465354-0002

We can produce as your requirement.

All the turbine shaft and compressor wheel have balanced .

The more models we also have
