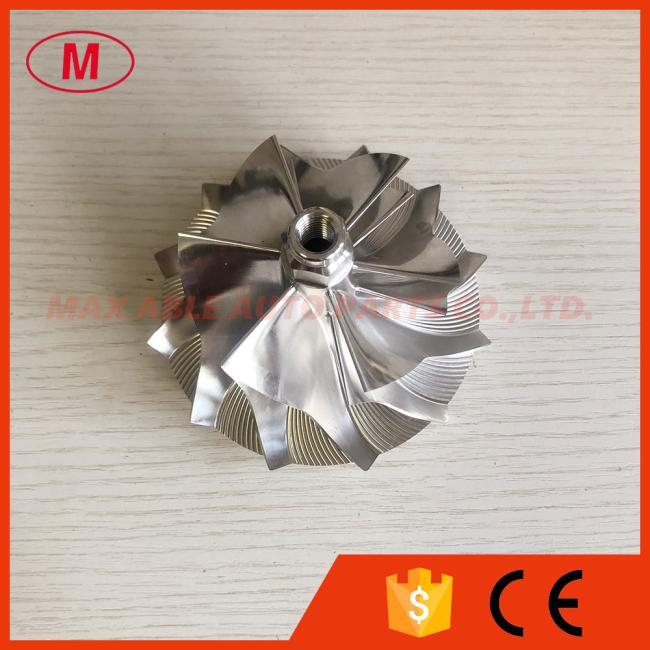

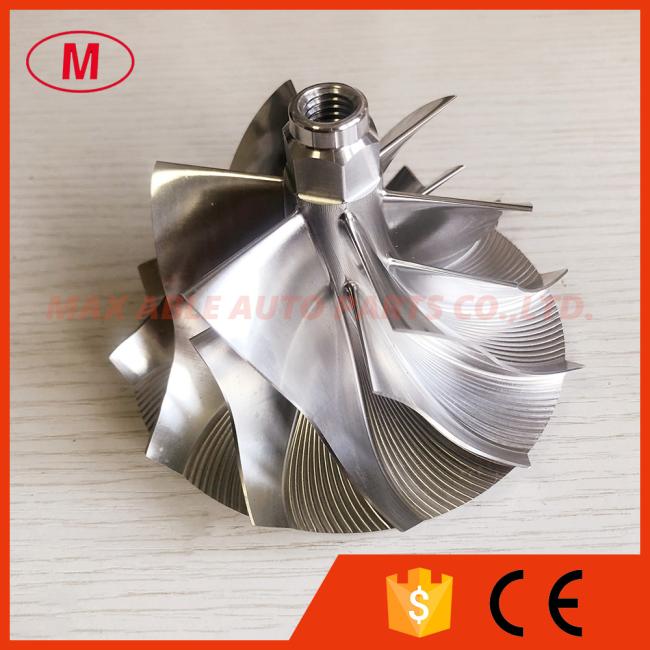

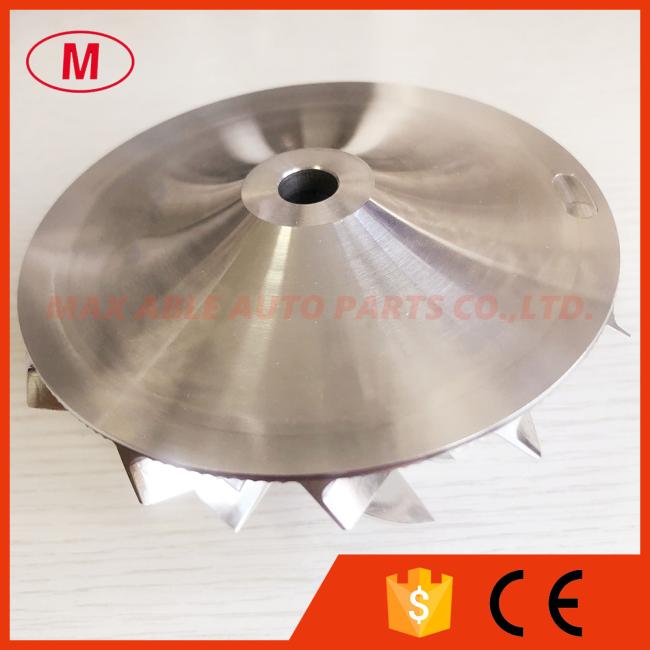

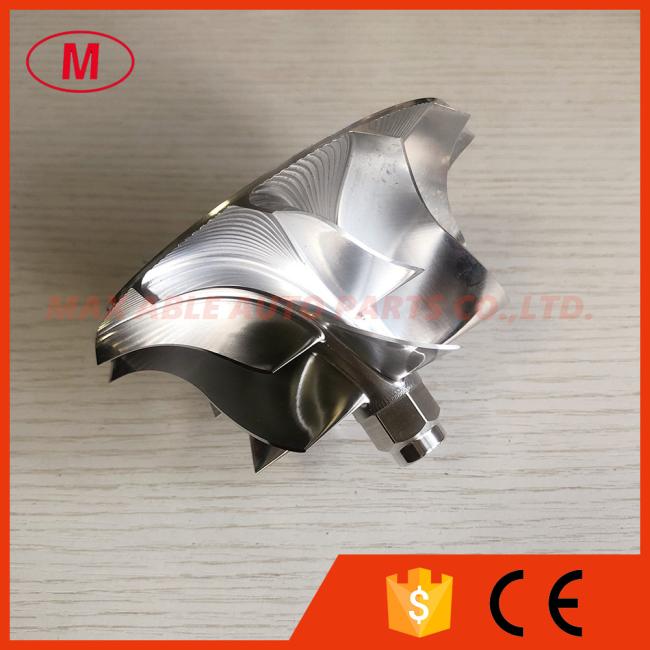

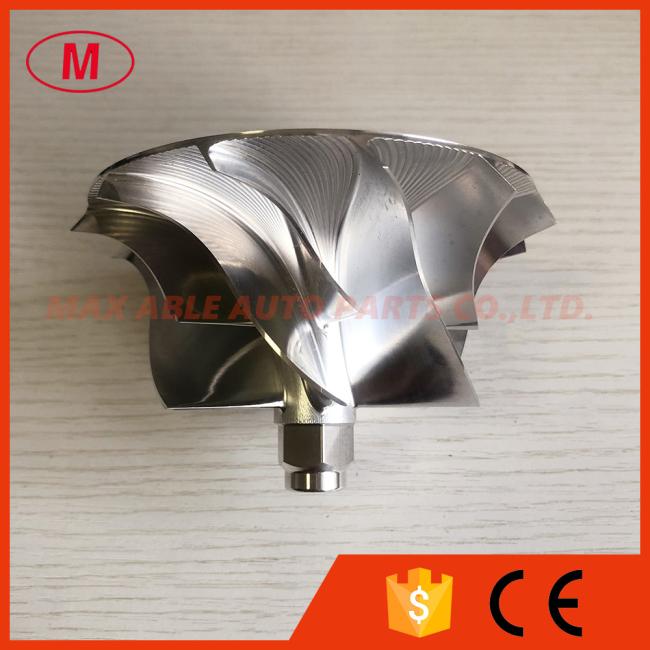

S400 171691 74.53/101.44mm 6+6 blades Turbo milling/aluminum 2618/billet compressor wheel for 171702(S400SX4-75), 176806

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description

1. MODEL:S400 forward

2. S400 171691 74.53/101.44mm 6+6 blades Turbo Billet/milling/aluminum 2618 compressor wheel for 171702(S400SX4-75), 176806(S400SX4-75), 179174(S400SX-75) racing.
3.Size:

Nose diameter:18.85mm

Inducer:74.53mm

Exducer:101.44mm

Tapered tip exducer:109.14mm

Tip height:7.67mm

Superback:8.41mm

Overall height:73.00mm

Bore size:10.00mm

Bore type:Threaded-M10x1.5LHT

Trailing angle:55

Overall height:73.00mm

Cutback:0.0

SP Height angle:-2.50

Blades height:46.36mm

Splitter height:29.65mm

6+6 blades

Forward rotation

Tapered tip angle:30 degree

Fits OE Compressor Housing

4.High quality and competitive price.

5.Any questions please send email to me

We can produce as your requirement.



All the compressor wheel have been balanced.
