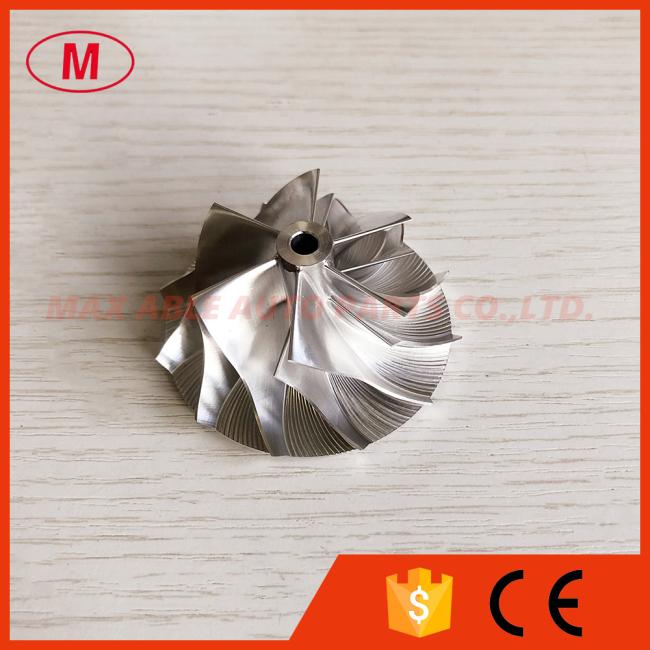

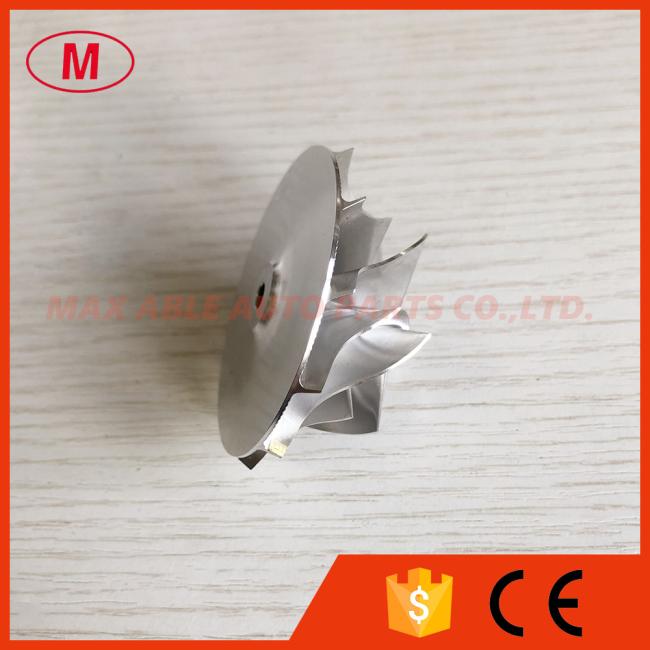

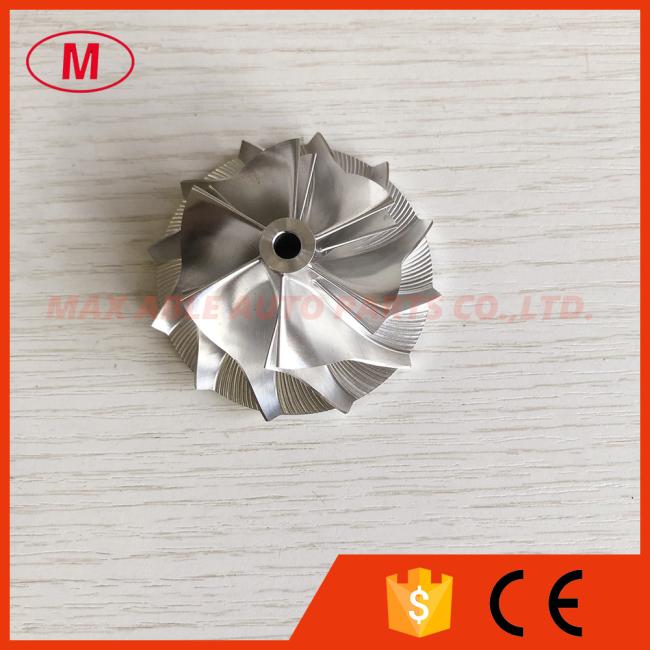

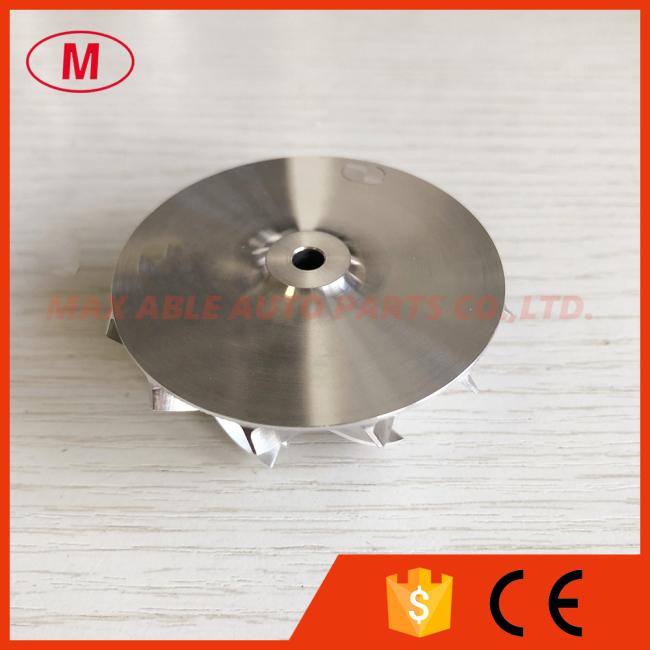

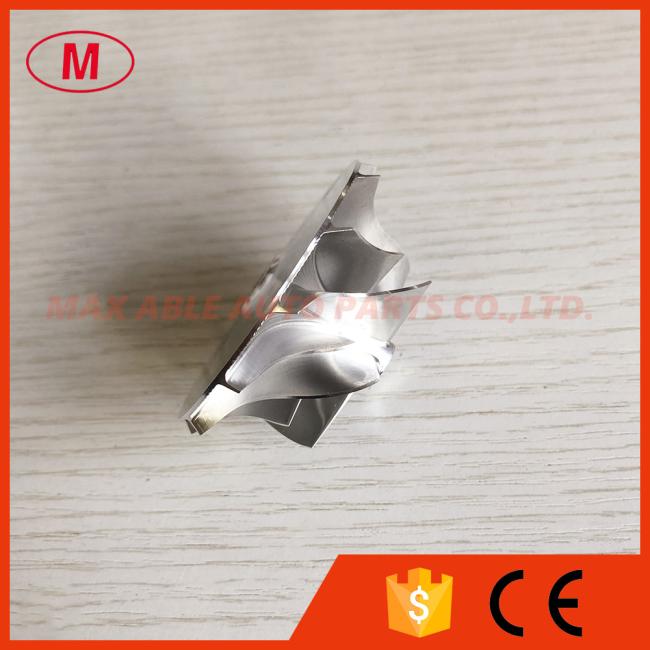

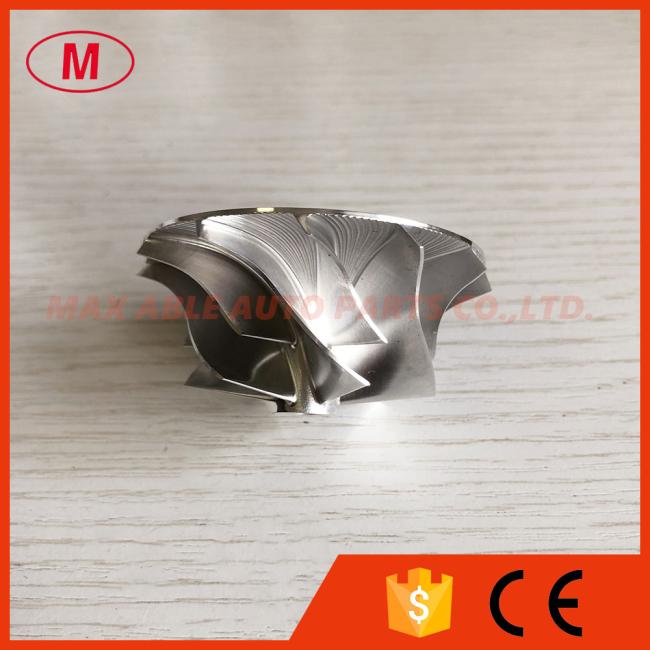

K04 5306-123-2005 1302-003-410 41.20/56.08mm 6+6 blades high performance milling/aluminum 2618/Billet compressor wheel

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description

1. MODEL:K04 forward

2.K04 5306-123-2005 1302-003-410 41.20/56.08mm 6+6 blades high performance milling/aluminum 2618/Billet compressor wheel

3.Size:

Nose diameter:9.64mm

inducer:41.20mm

Exduder:56.08mm

Tapered tip exducer:59.58mm

Tip height:4.03mm

Superback:1.80mm

Overall height:27.70mm

bore size :4.61mm

Trailing Angle:60

Cutback:8.0

SP height angle:-2.50

Blade height:24.20mm

Splitter height:15.90mm

6+6 blades

Tapered tip Angle:30 degree

Forward rotation

It is for OE compressor housing

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.



The more models we also have.
