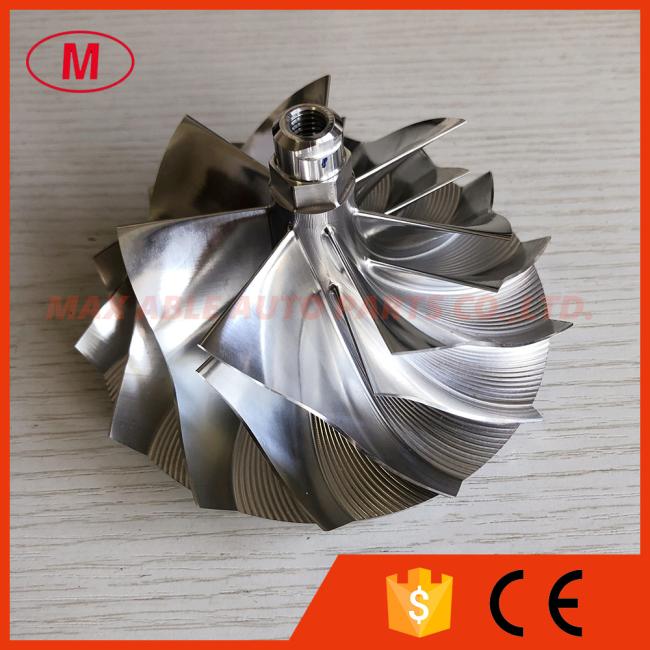

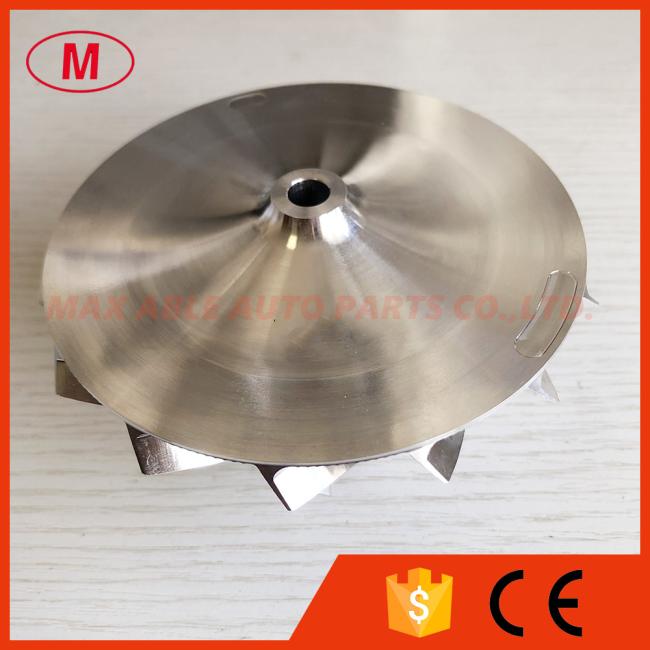

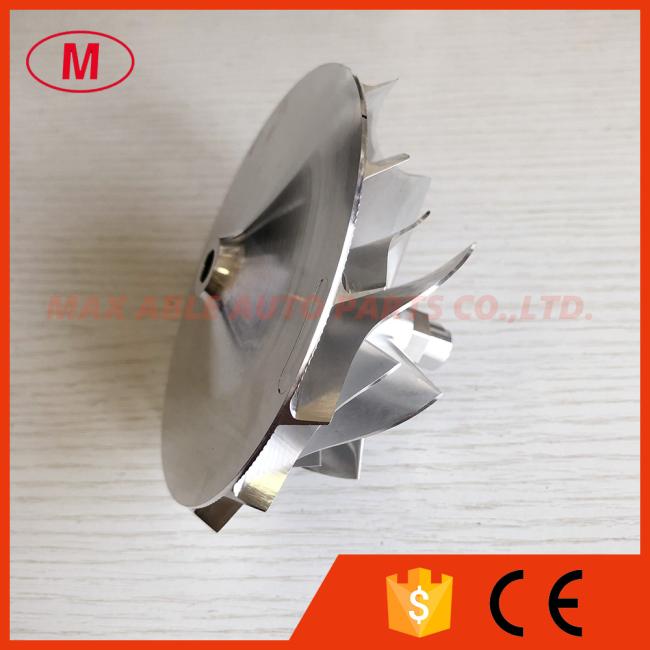

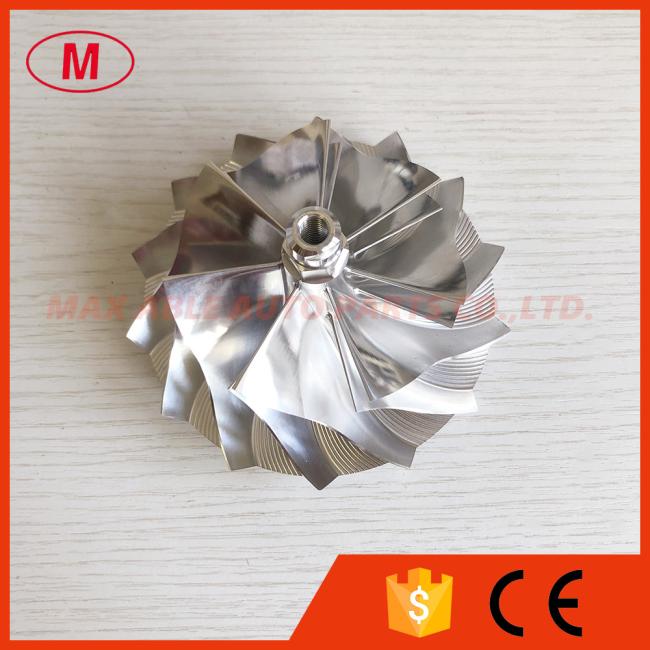

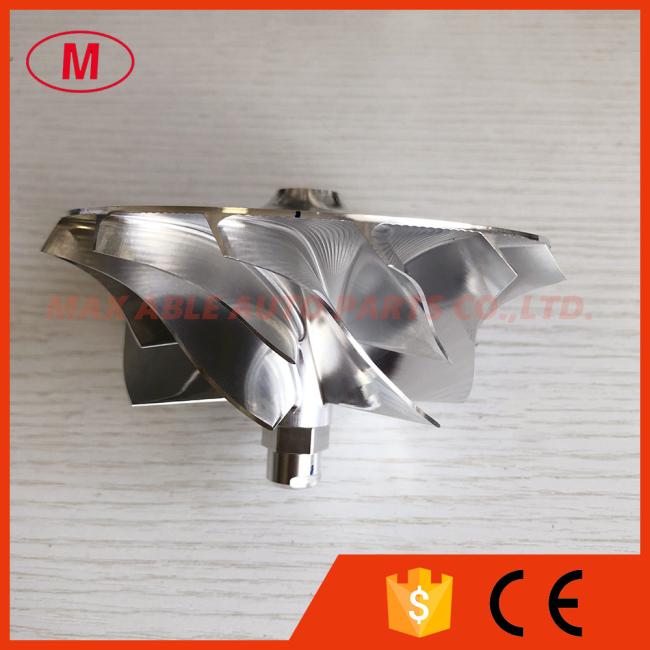

GTA4508R 742582-0001 79.81/108.04mm 7+7 Blades high performance turbo aluminum 2618/milling/billet compressor wheel

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description

1.Model:GTA4508R forward

2. GTA4508R 79.81/108.04mm 7+7 Blades 742582-0001 high performance turbo billet/aluminum 2618/milling compressor wheel
3.Size:

Nose diameter:17.22mm

Inducer:79.81mm

Exducer:108.04mm

Tapered tip exducer:116.19mm

Tip height:8.06mm

Superback:9.52mm

Overall height:68.49mm

Bore:8.25mm

Trailing angle:55

Bore type:Threaded-M8x1.25LHT

Cutback:0.0

SP height :26.20mm

SP height angle:-5.50

Blades height:38.46mm

7+7 blades forward

Tapered tip angle:30 degree

It is for OE compressor housing

4.Good quality and competitive price

5.if you want to know more details ,please send email to me !



All the compressor wheel have been balanced.
