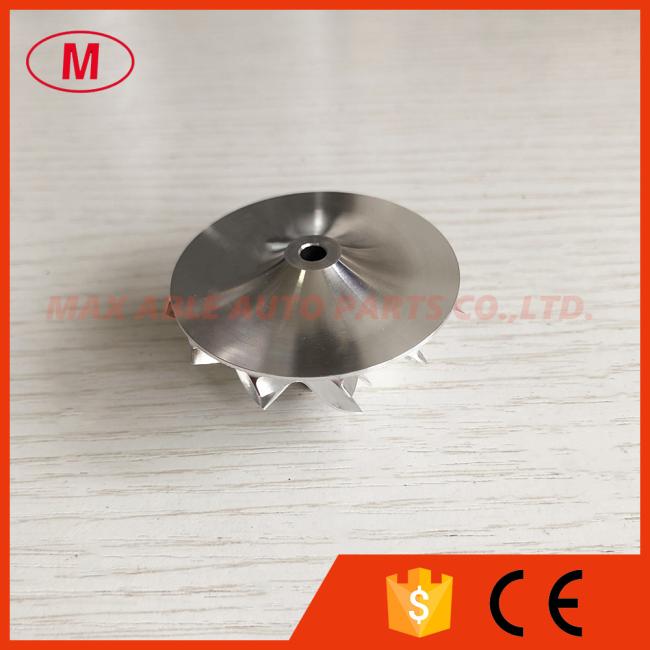

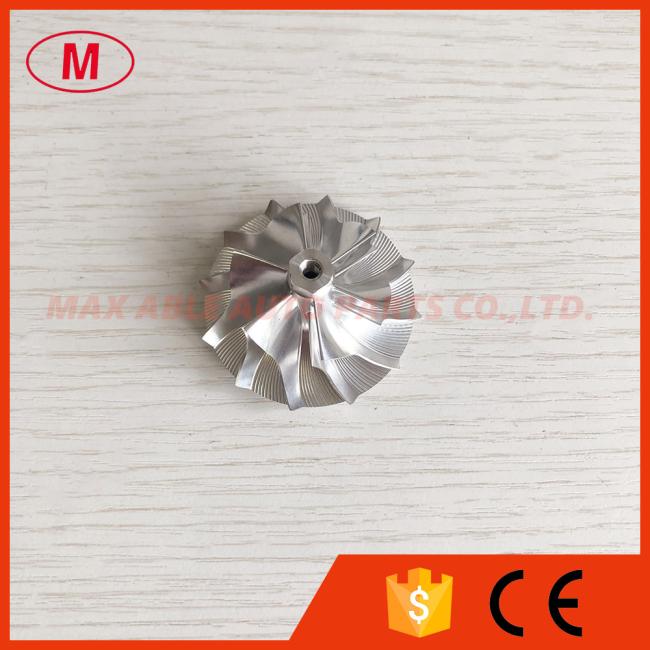

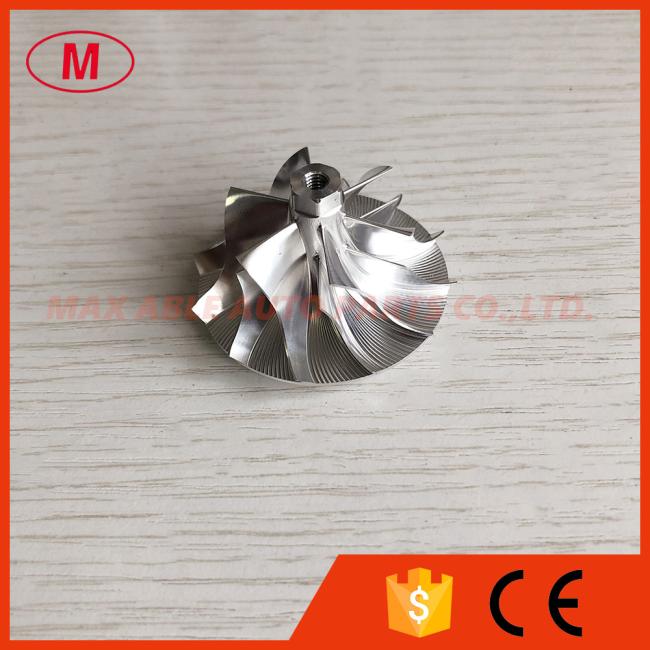

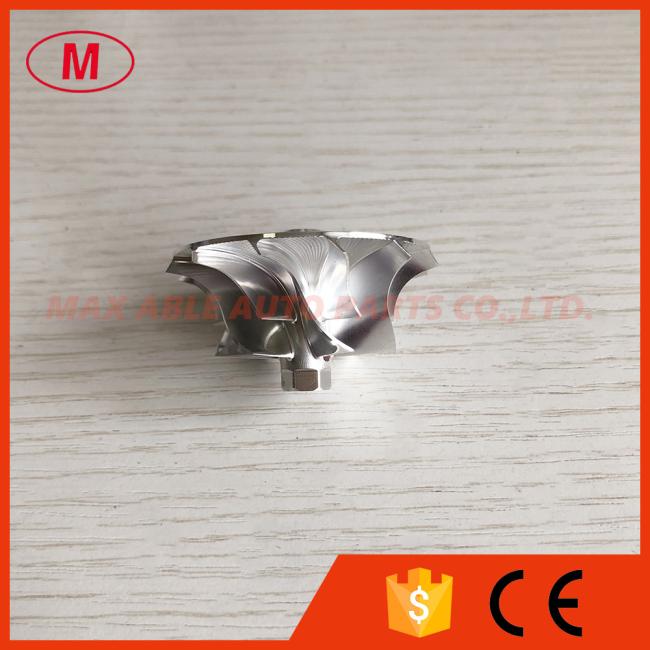

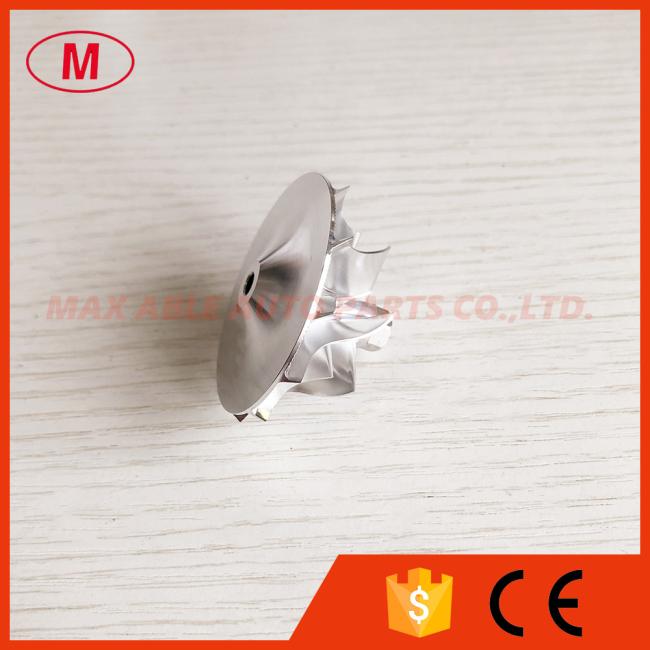

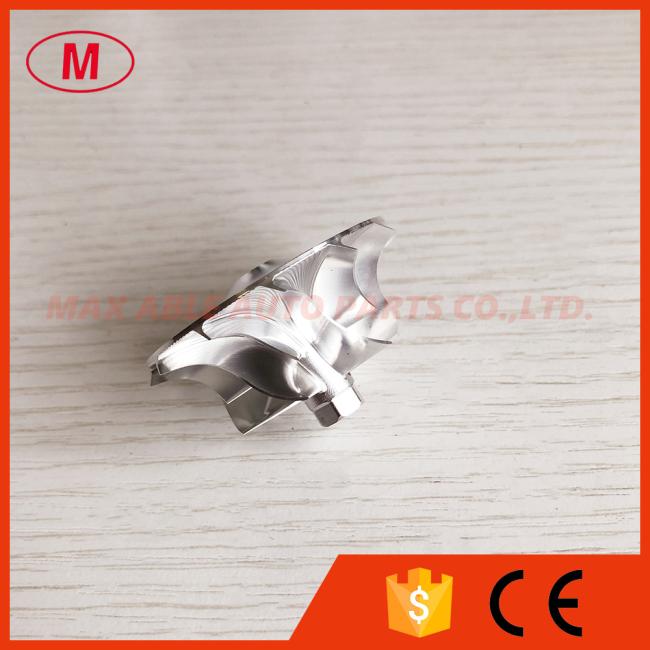

GT1246 784538-0003R 6+6 blades 32.50/46.00mm high performance turbo milling/aluminum 2618/billet compressor wheel

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description

1. MODEL:GT1246 FORWARD

2.GT1246 784538-0003R 6+6 blades 32.50/46.00mm high performance turbo milling/aluminum 2618/billet compressor wheel

3.Size:

Nose diameter:9.15mm

inducer:32.50mm

Exduder:46.00mm

Tapered tip exducer:48.82mm

Tip height:3.45mm

Superback:3.90mm

Overall height:28.45mm

bore size :4.08mm

Bore type:Threaded-M4x0.7LHT

Trailing Angle:55

Cutback:0.0

Blades height:18.79mm

Splitter height:12.50mm

SP height angle:-1.00

Tapered tip Angle:30 degree

6+6 blades

forward rotation

Fit for OE compressor housing



4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.



The more models we also have.
