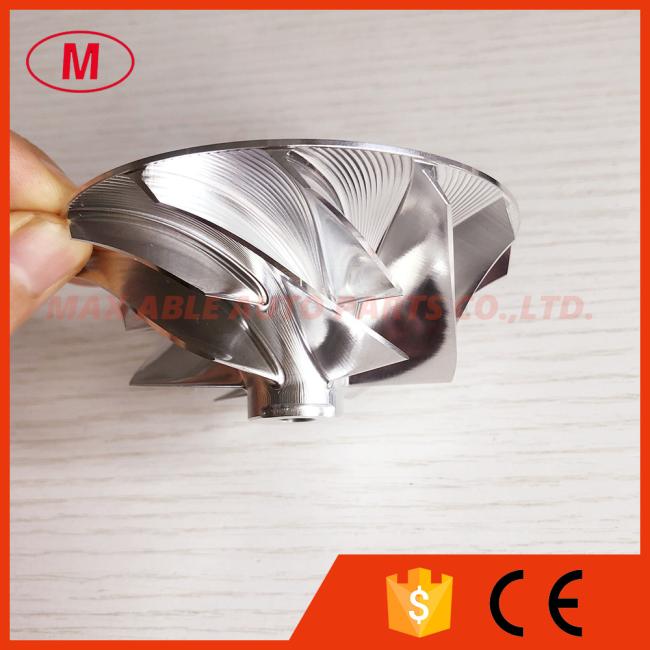

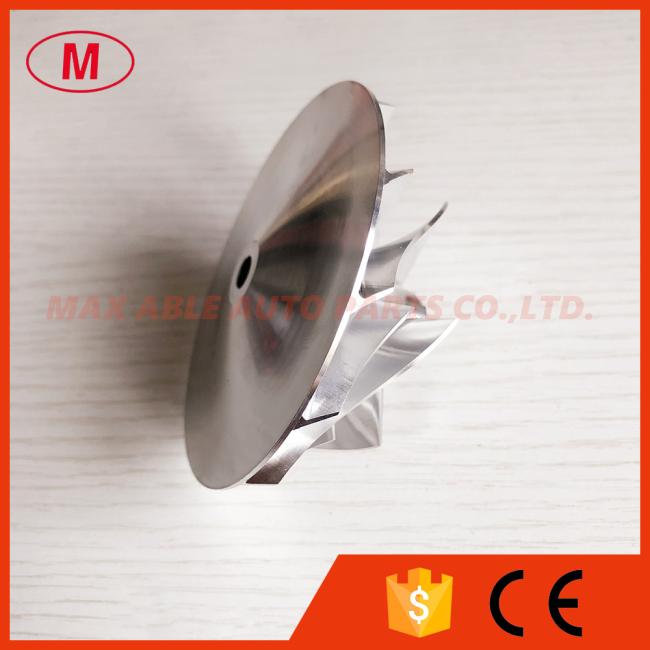

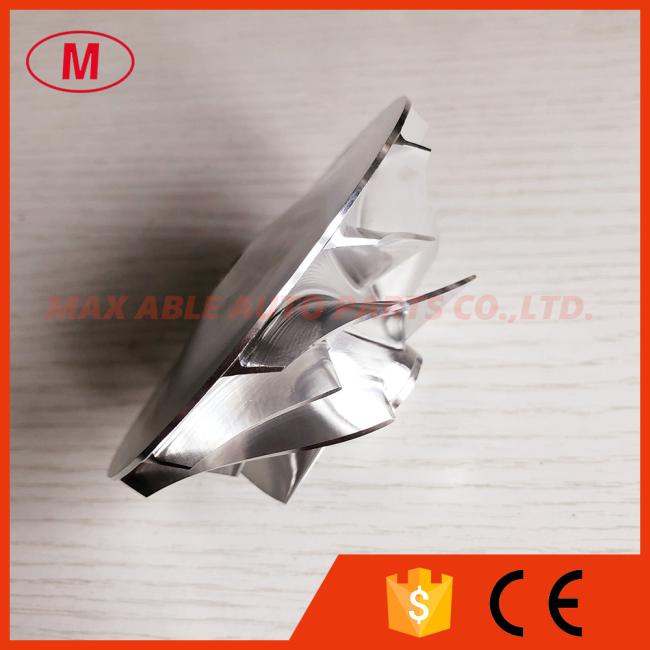

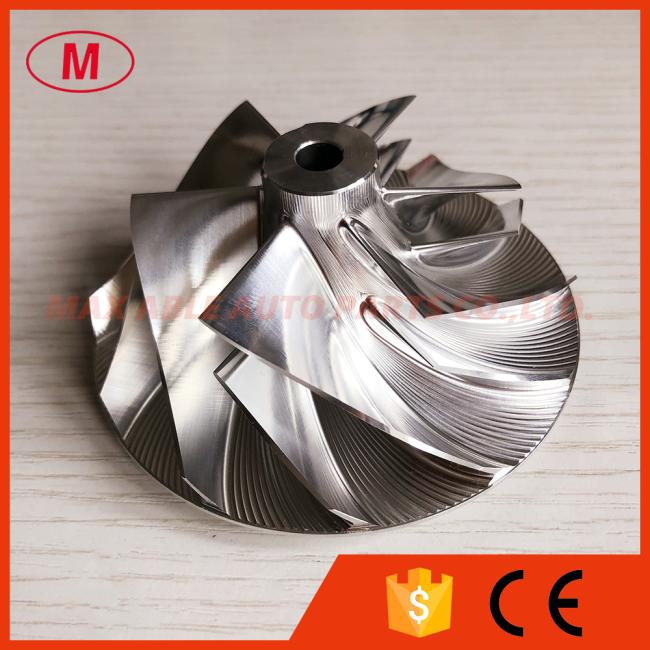

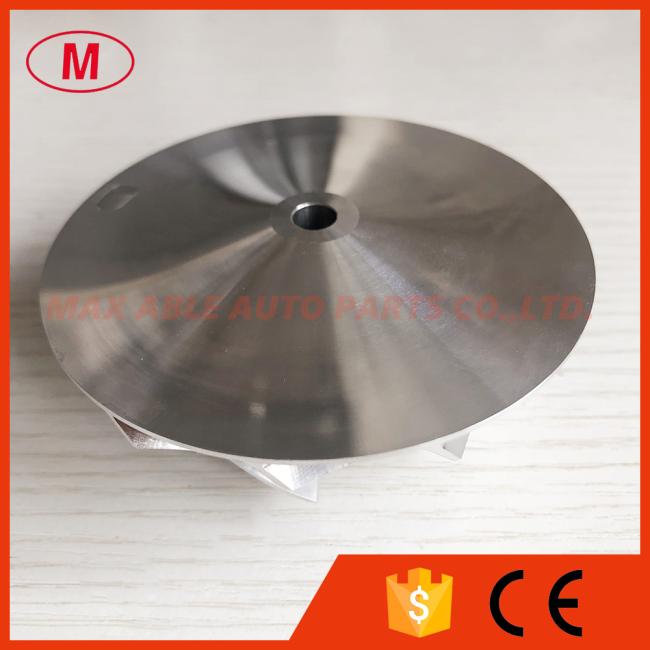

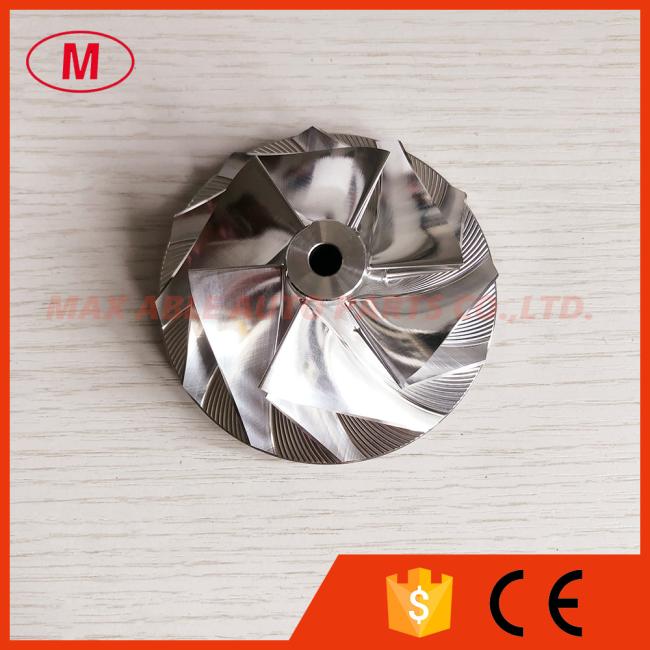

HX40 3599550 60.00/86.01mm 6+6 blades Turbocharger milling/Aluminum 2618/billet compressor wheel for 6CTAA

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description

1. MODEL:HX40 Forward

2.HX40 3599550 60.00/86.01mm 6+6 blades Turbocharger milling/Aluminum 2618/billet compressor wheel for 6CTAA

3.Size:

Nose diameter:17.75mm

inducer:60.00mm

Exducer:86.01mm

Tip height :7.03mm

superback:4.97mm

Bore size:7.00mm

Overall height:39.80mm

Trailing angle:45

Cutback:2.5

Sp Height angle:-7.00

Splitter height:18.05mm

Blade height:28.80mm

Tapered tip angle: 0 degree

6+6 blades Forward rototion

It is for OE compressor housing.

4.High quality and competitive price.

5.Any questions please send email to me.
