RHF55 5+5 blades 52.00/68.00mm high performance turbo milling/aluminum 2618/billet compressor wheel

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description
1. MODEL:RHF55 forward

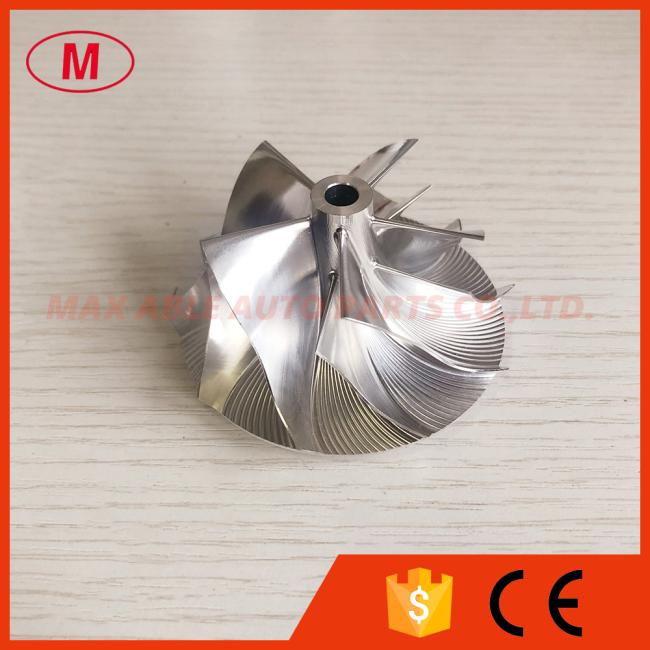

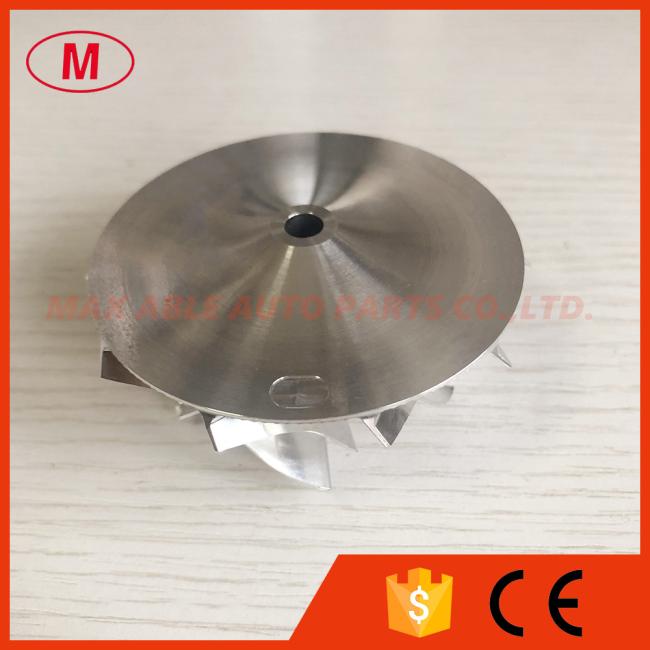

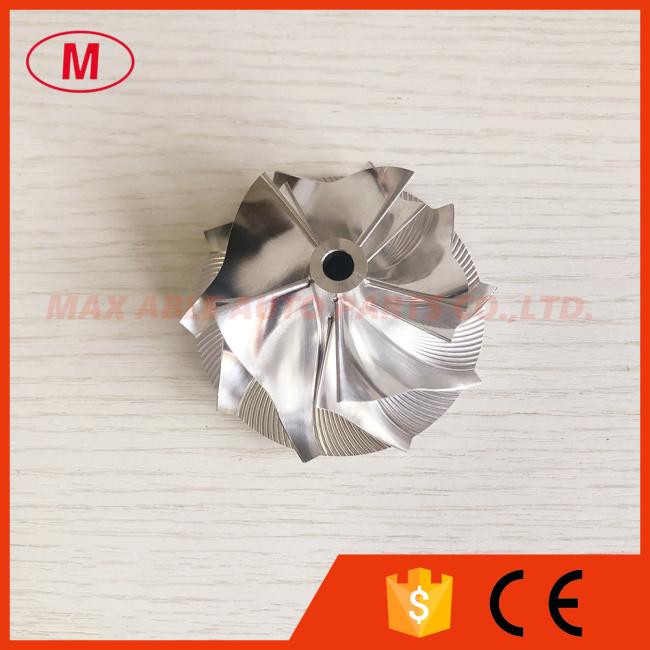

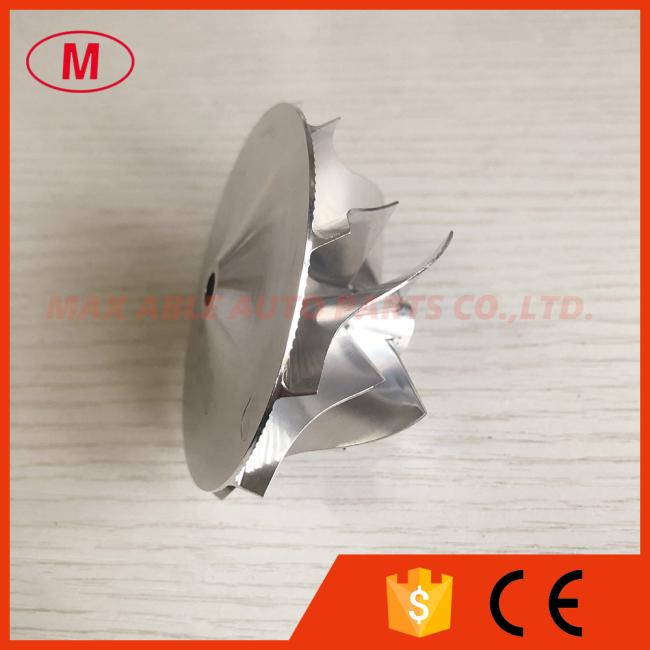

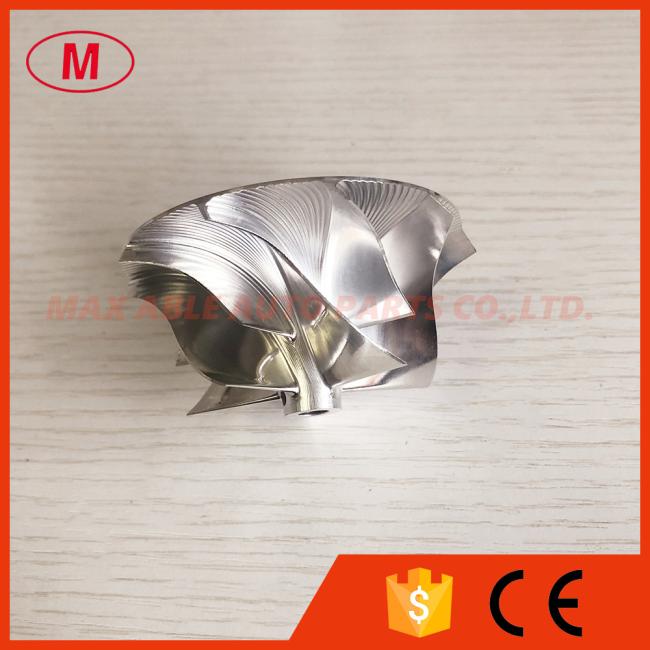

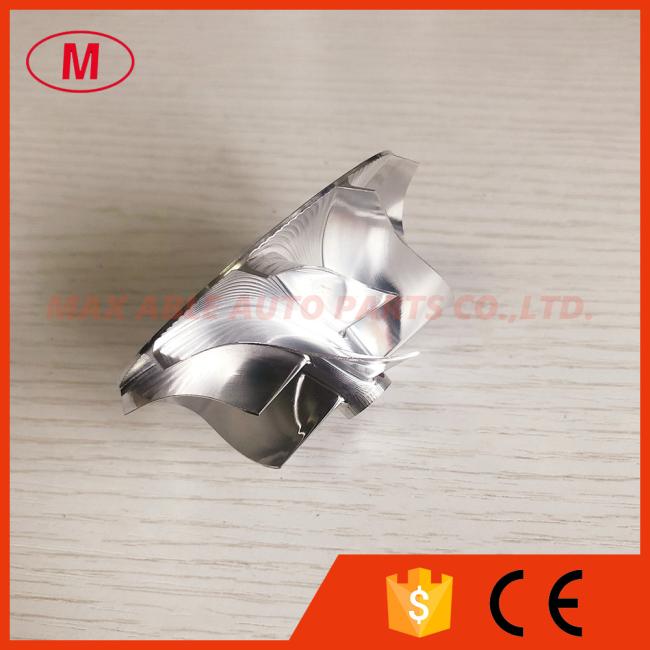

2.RHF55 5+5 blades 52.00/68.00mm high performance turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:11.26mm
Inducer:52.00mm
exducer:68.00mm
Tapered tio exducer:73.04mm
Tip height:5.37mm
Superback:4.53mm
bore size :6.10mm
bore type:through
Overall height:37.92mm
Cutback:0.0mm
Trailing Angle:60 degree
Blade height:29.65mm
sp Height angle:-2.80
Splitter height:20.35mm
5+5 blades forward rotation
It is for custom size ,please check carefully before buying.
Tapered tip Angle:30 degree

4.High quality and competitive price.
5.if you want more details, please send email to me.

All the compressor wheels have been balanced.
