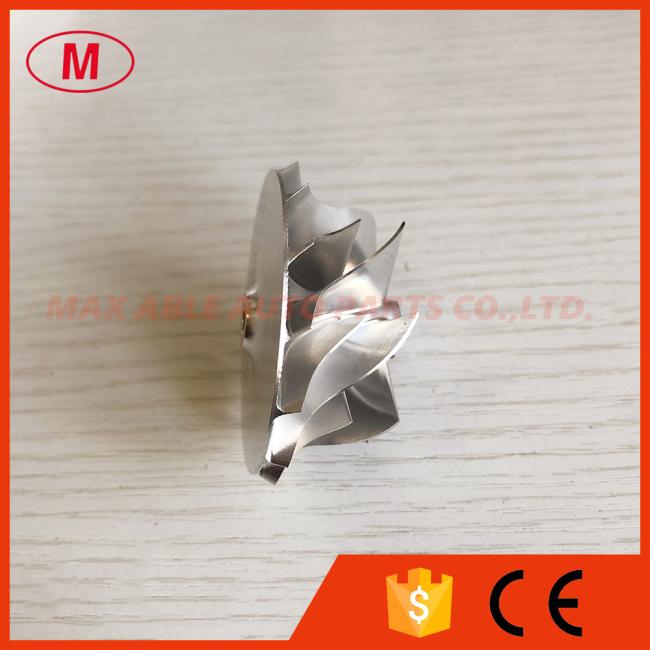

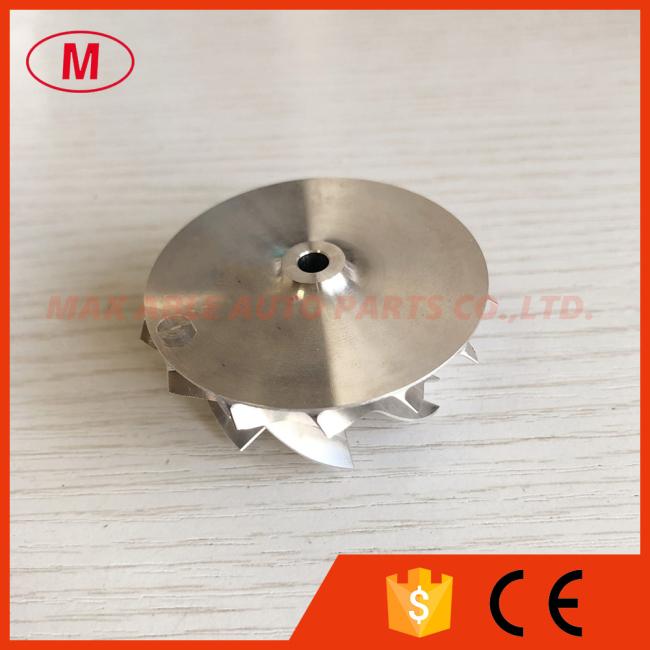

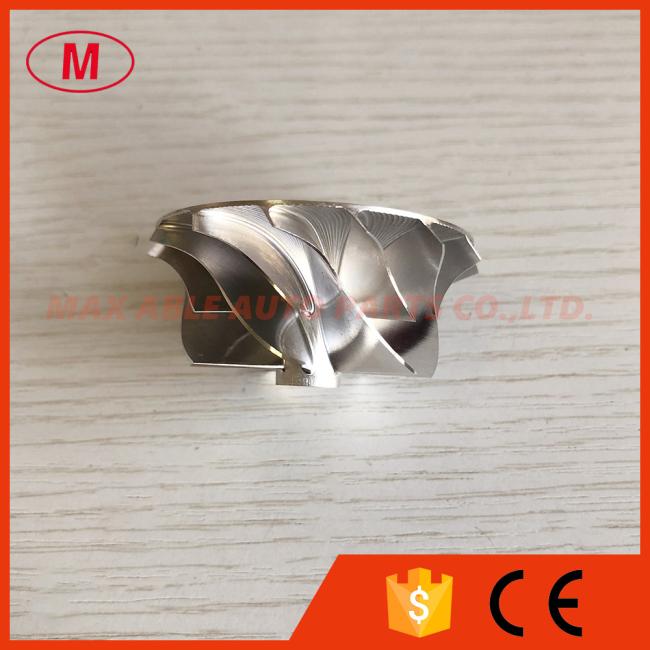

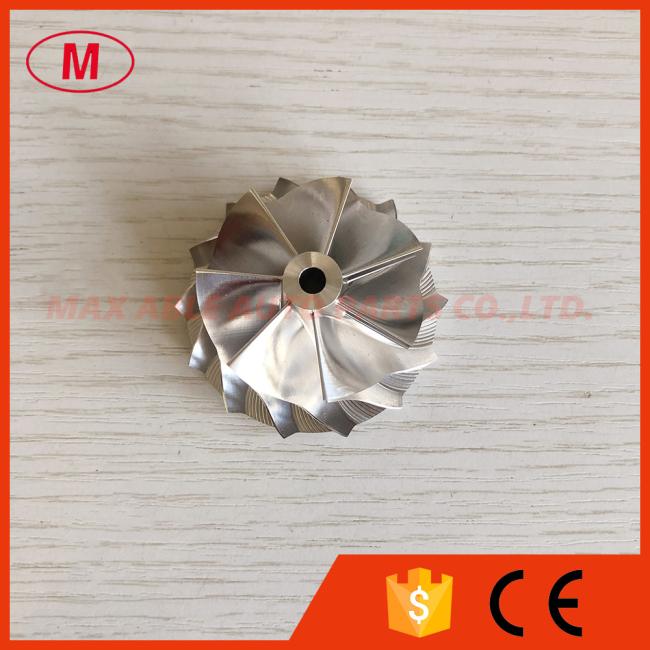

K04 41.00/50.80mm 7+7blades turbo milling/aluminum 2618/billet compressor wheel
Price:
DISCUSS
MOQ:
1PC
Delivery Time:
3-7 DAYS
Brand:
NO
Product Description
1.Model:K04 forward
2.K04 41.00/50.80mm 7+7blades turbo milling/aluminum 2618/billet compressor wheel
3.SIZE:
Nose Diameter:10.33mm
inducer:41.00mm
Exducer:50.80mm
Tapered tip exducer:54.16mm
Tip height:3.91mm
Superback:2.60mm
Overall height:26.47mm
bore size :4.61mm
Trailing angle:55
Cutback:0.0
SP Height angle:-5.90
Splitter height:14.00mm
Blade height:21.50mm
7+7 blades
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.Good quality and competitive price
5.Please send email to me or talk to me on online ,if you want to know more details.
All the compressro wheel have been balanced.
