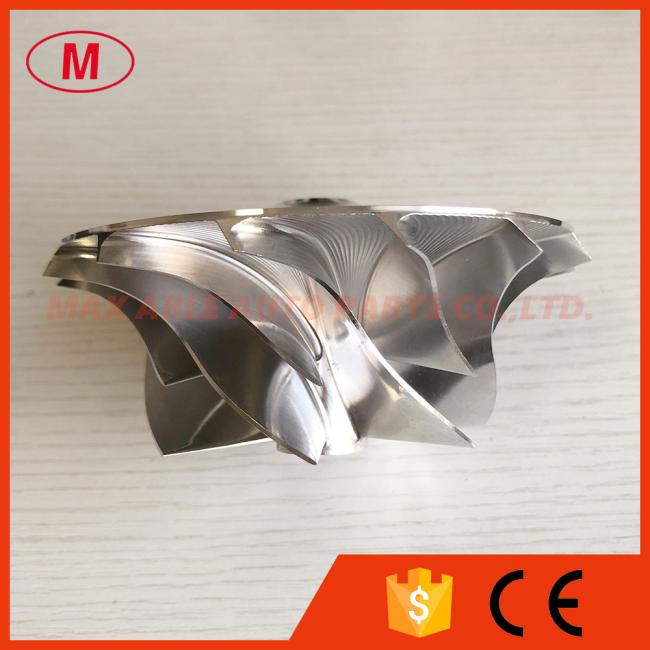

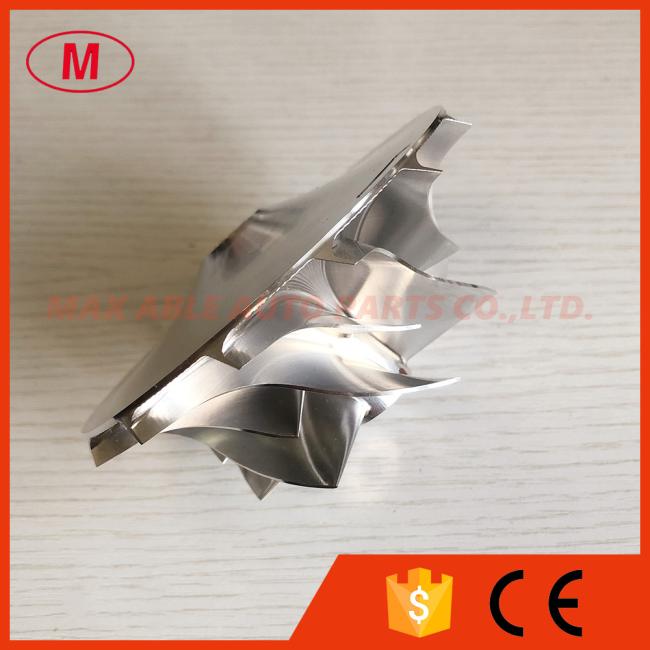

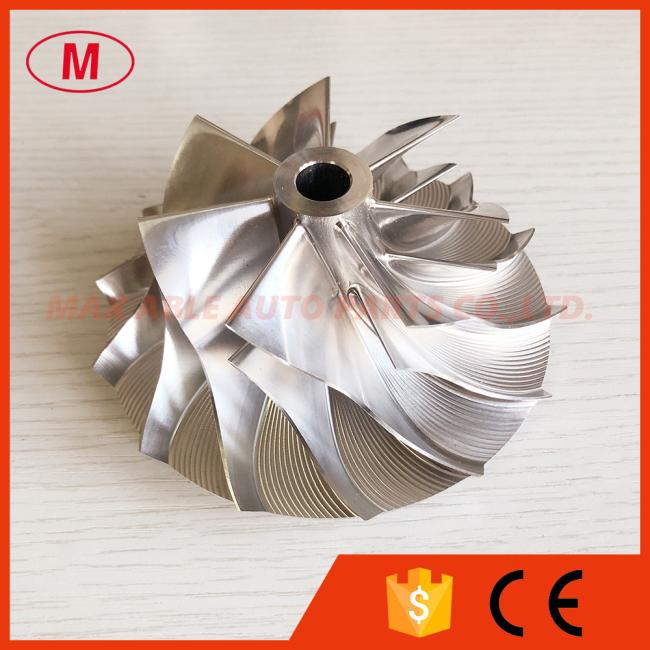

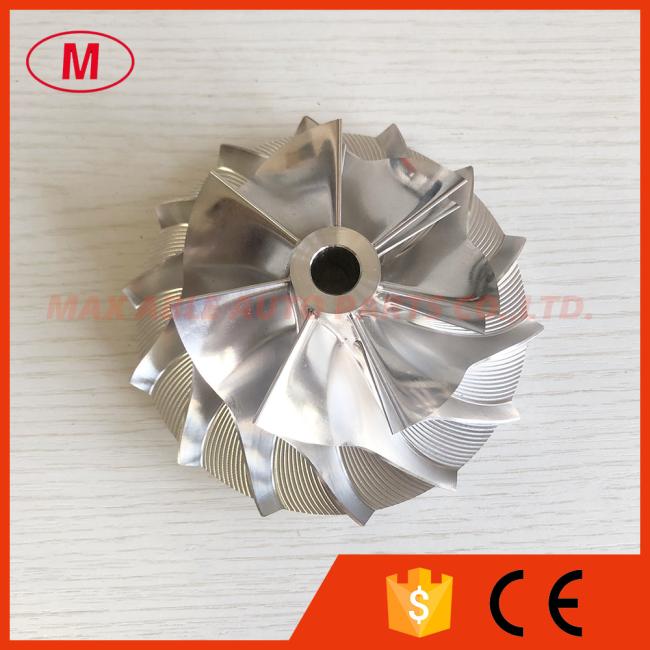

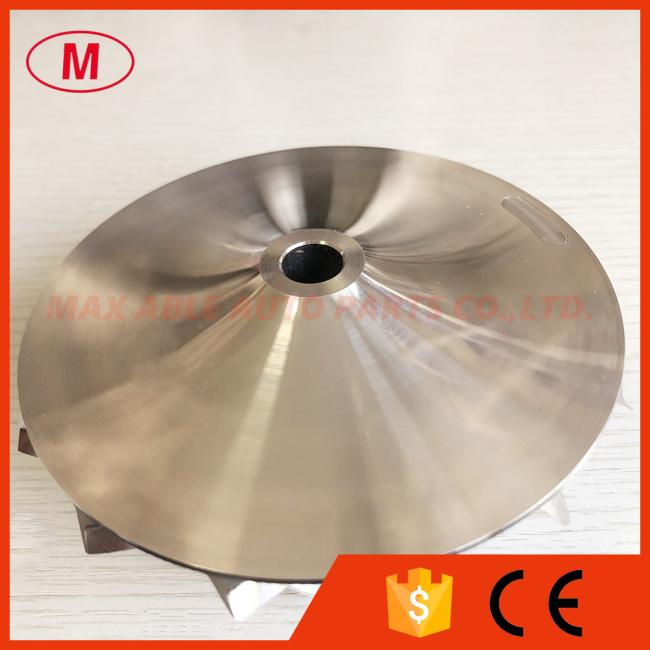

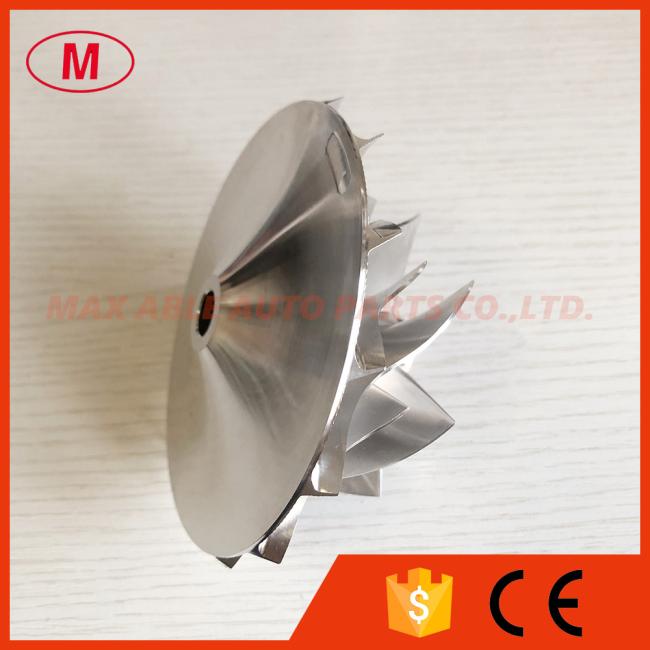

HX60 3531538 76.00/109.00mm 7+7 blades high performance turbo milling/Aluminum 2618/billet compressor wheel for 4045532

Price Negotiable
Price: DISCUSS
MOQ: 1PC
Delivery Time: 3-7 DAYS
Brand: NO
Product Description

1. MODEL:HX60 forward

2. HX60 3531538 76.00/109.00mm 7+7 blades high performance turbo milling/Aluminum 2618/billet compressor wheel for 4045532/4027403/4027260/4027648/4027256/4027437/4027261/4030876/4027400/4027257/4027023/3575195

3.Size:

Nose Diameter:20.21mm

inducer:76.00mm

Exducer:109.00mm

Tapered tip exducer:115.48mm

Tip height:6.61mm

Superback:9.68mm

Overall height:54.00mm

Bore size:11.12mm

Trailing angle:60

Cutback:0.0

Splitter height:28.10mm

SP height angle:-10.00

Blades height:41.39mm

7+7 BLADES

forward rotation

Tapered tip angle:30 degree

It is for OE compressor housing

4.High quality and competitive price.

5.Any questions please send email to me.We have many size.

All the compressor wheel have been balanced.
