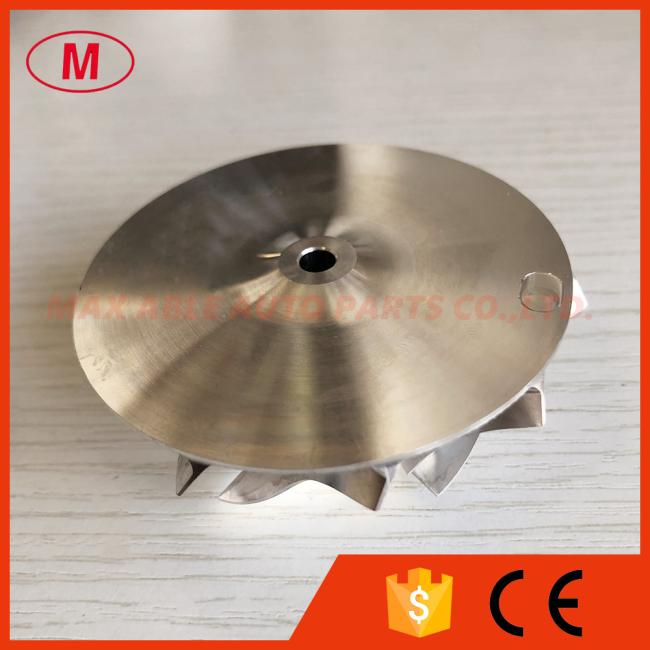

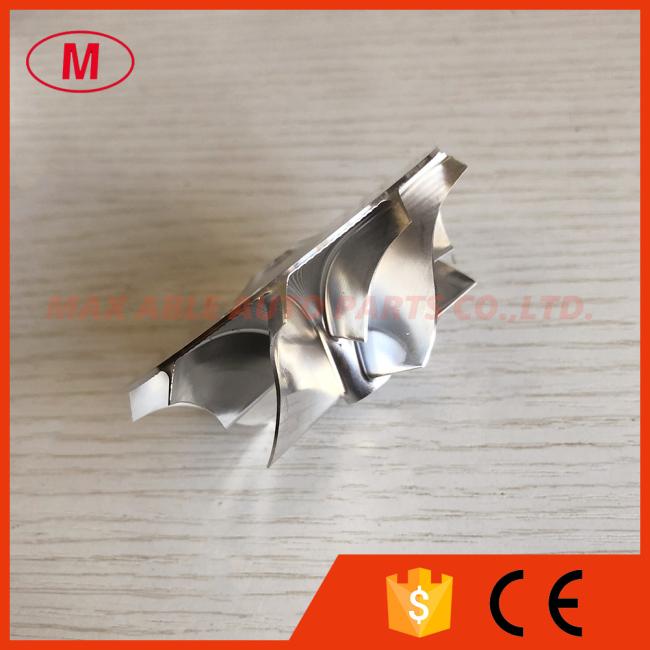

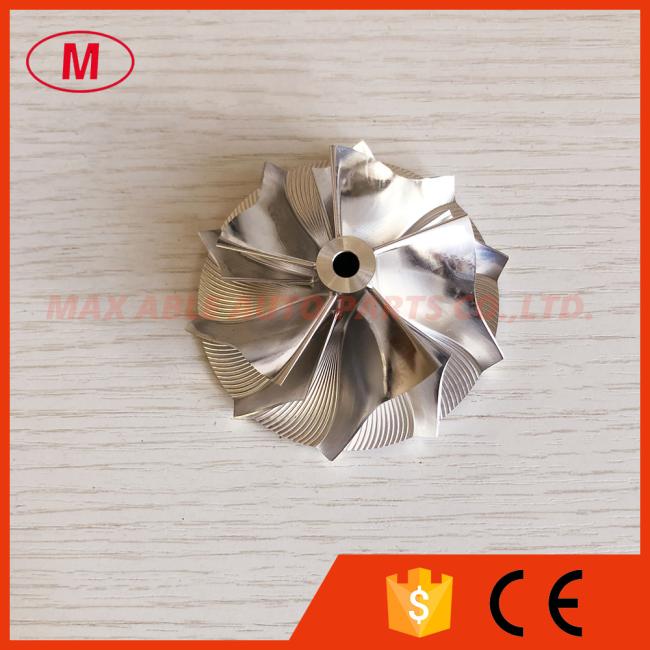

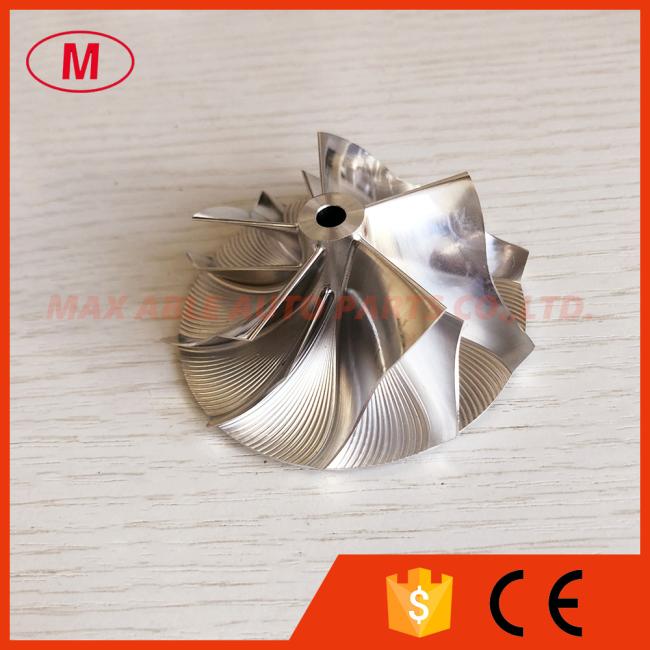

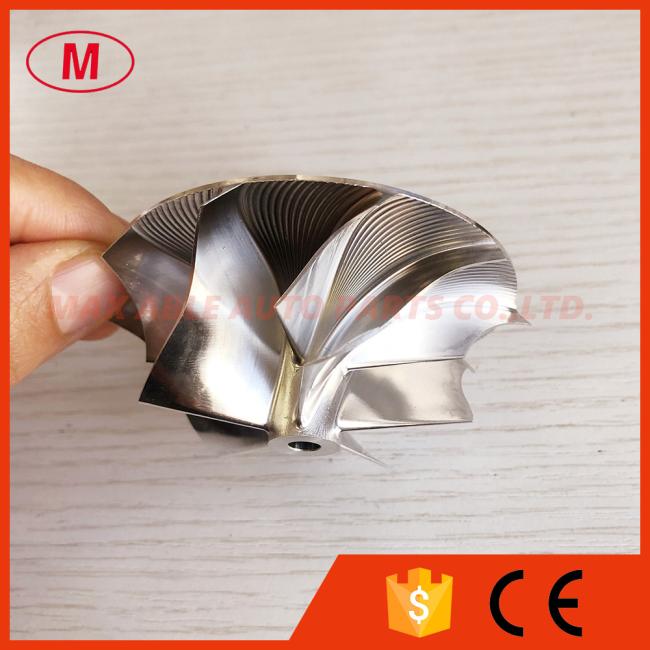

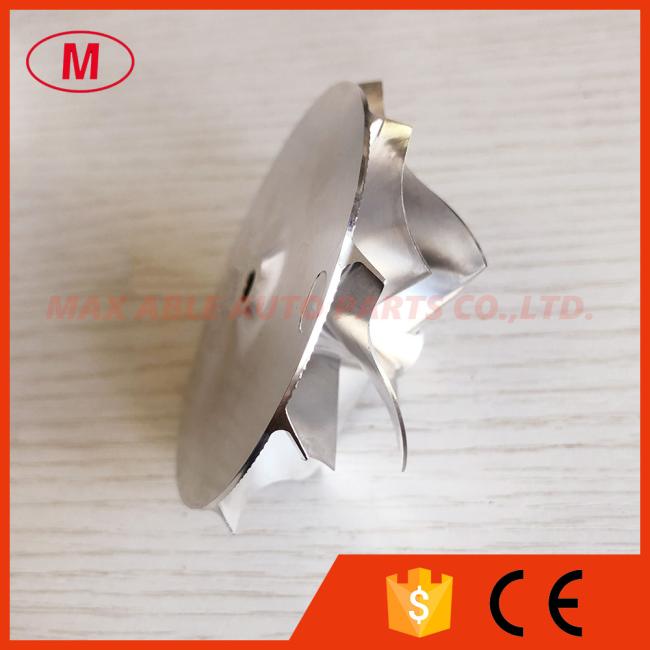

RHF5 reverse 52.56/68.001mm 5+5 blades high performance turbo aluminum 2618/milling/billet compressor wheel
Price:
Negotiable
MOQ:
1PCS
Delivery Time:
3-7 days after payment
Brand:
no
Product Description
1. MODEL:RHF5 REVERSE
2.RHF5 reverse 52.56/68.01mm 5+5 blades high performance aluminum 2618/Billet/milling compressor wheel
3.Size:
Nose diameter:11.60mm
Inducer:52.56mm
exducer:68.01mm
Tapered tip exducer:73.05mm
Tip height :5.36mm
superback:1.53mm
Overall height:28.70mm
Bore size:5.10mm
Trailing Angle:60
Cutback:3.0
SP height angle:-1.20
Blade height:25.20mm
Splitter height:15.90mm
5+5 blades
reverse rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying
4.High quality and competitive price.
5.Any questions please send email to me.
All the compressor wheel have been balanced.
We can produce as your requirement.
