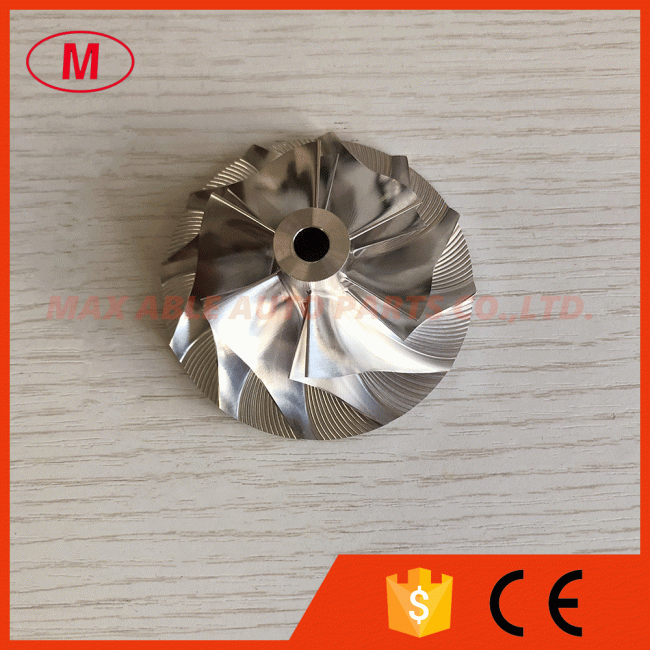

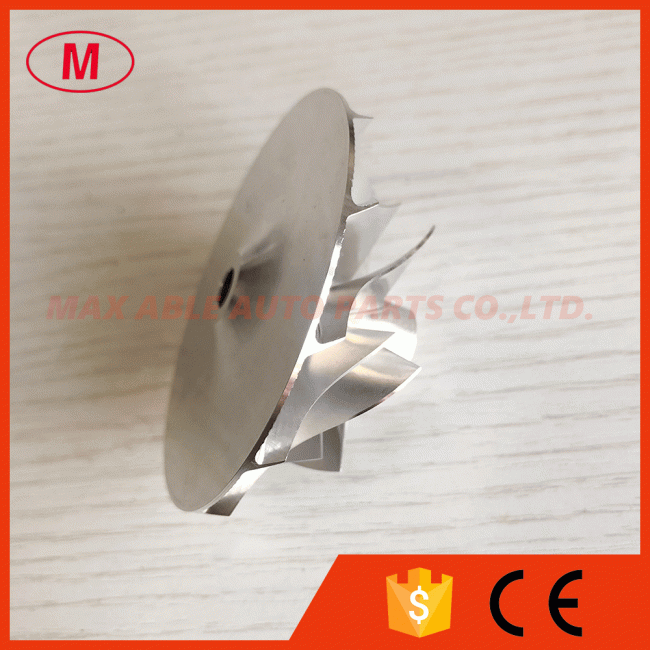

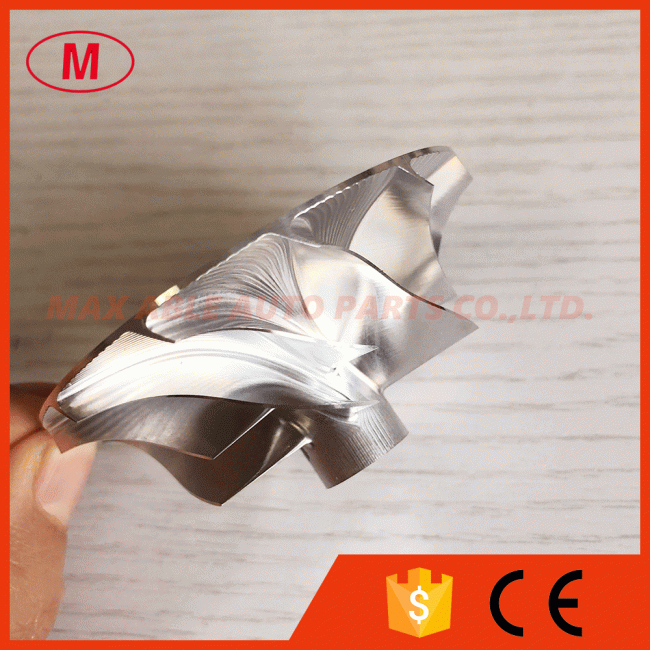

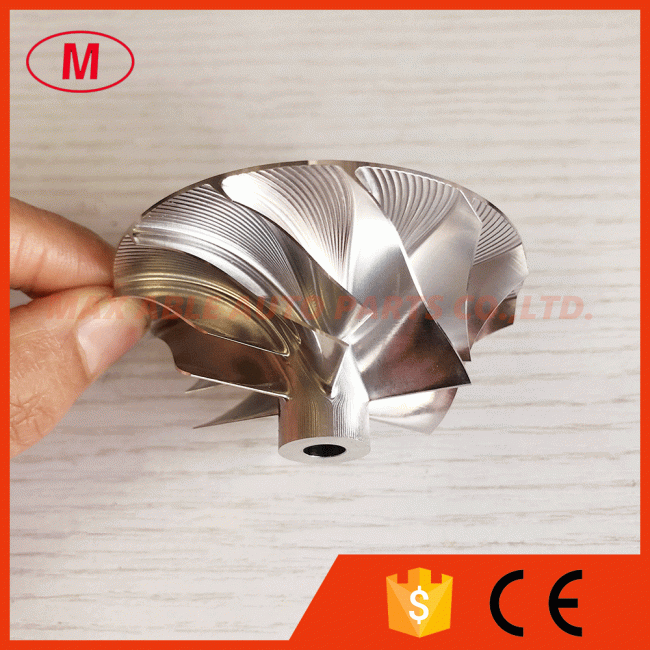

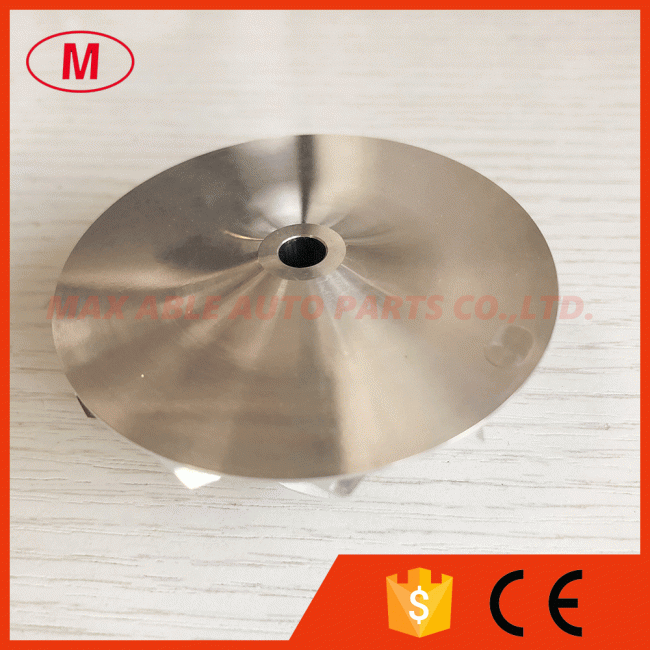

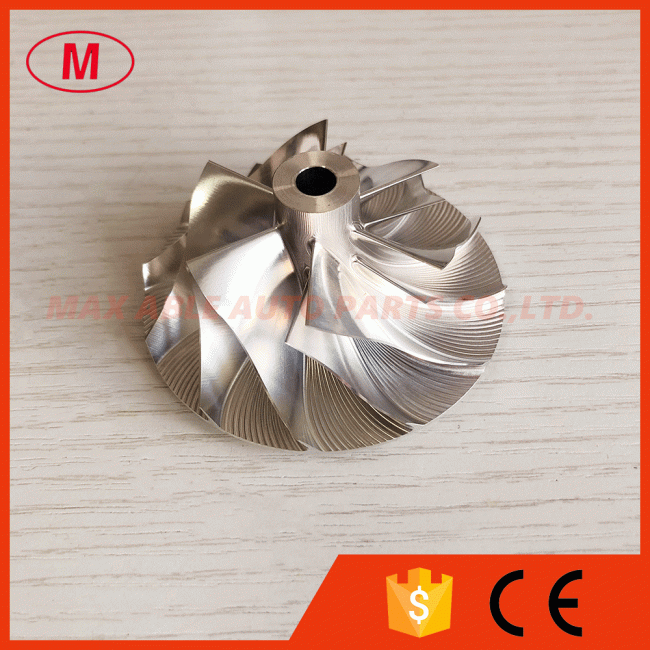

TD05H 155G6 47.05/68.01mm 6+6 blades 49378-01642/EVO X Turbo milling/aluminum 2618/billet compressor wheel

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Product Description
1. MODEL:TD05H forward
2. TD05H 155G6 47.05/68.01mm 6+6 blades 49378-01642/EVO X Turbo Billet/milling/aluminum 2618 compressor wheel
3.Size:
Nose diameter:14.22mm
Inducer:47.05mm
exducer:68.01mm
Tip height:4.69mm
Superback:2.90mm
bore size :6.50mm
Overal height:31.50mm
Cutback:0.0
Trailing angle:75
SP height angle:-4.70
Blade height:21.61mm
Splitter height:16.45mm
6+6 blades forward
it is for OE compressor housing
Tapered tip angle:0 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.

All the compressor wheel have been balanced.
