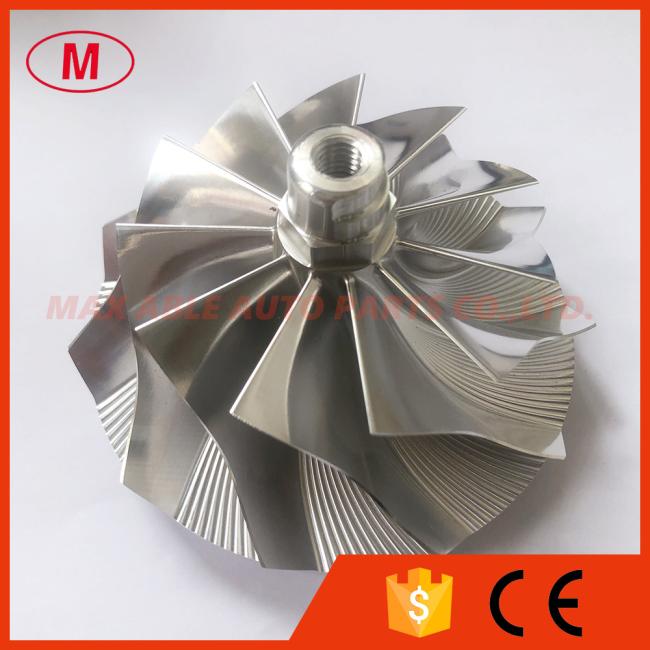

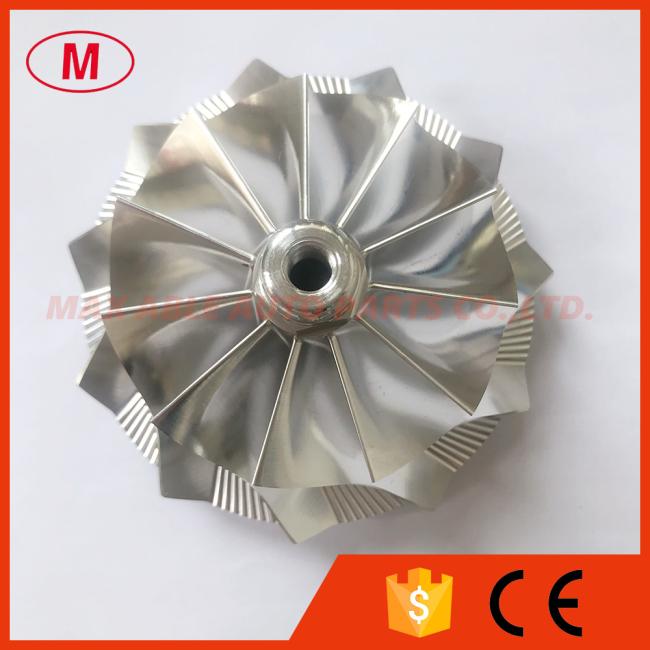

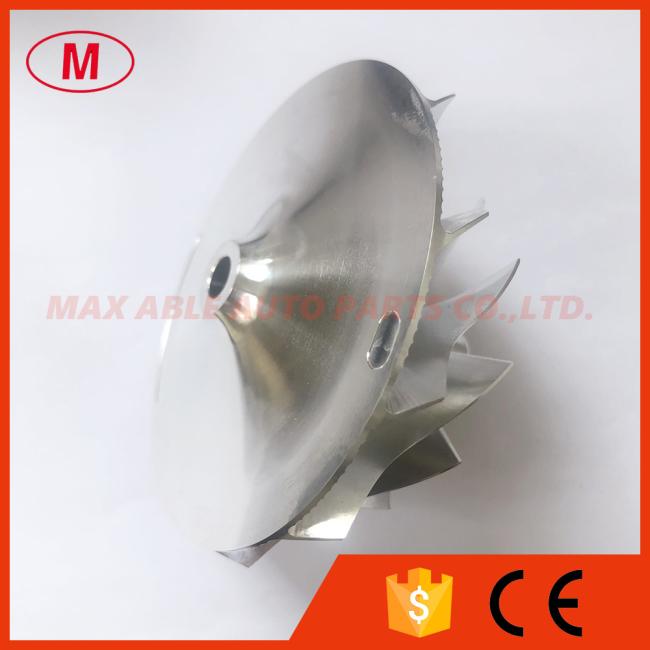

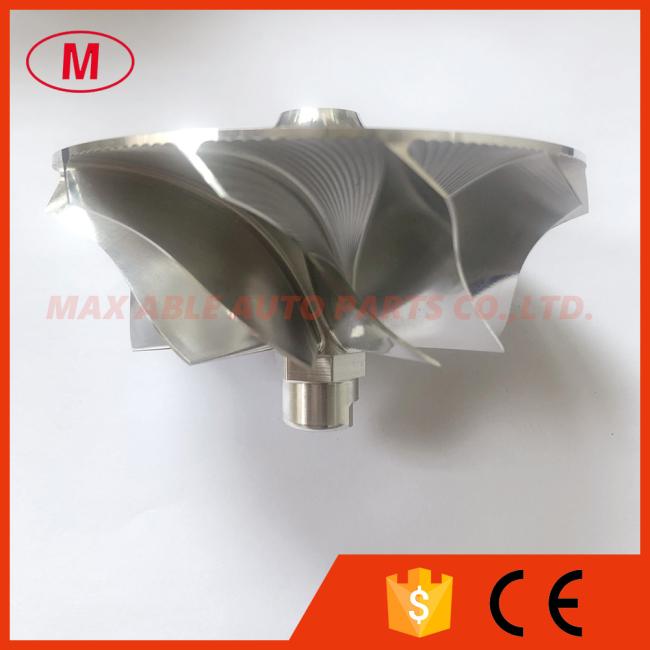

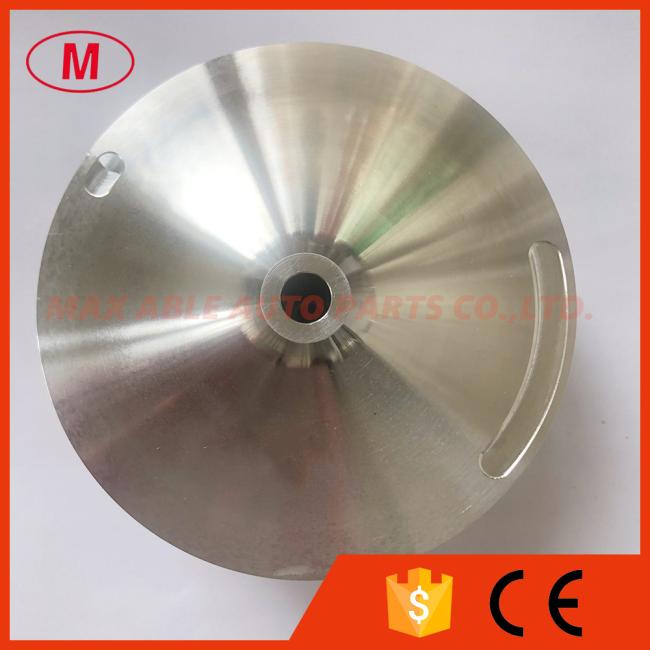

GTX4294 800269-5001 70.24/94.40mm 11+0blades Turbo milling/aluminum 2618/billet compressor wheel

1. MODEL:GTX4294 forward

2.GTX4294 800269-5001 70.24/94.40mm 11+0blades Turbocharger milling/aluminum 2618/billet compressor wheel

3.Size:

Nose diameter:19.10mm

inducer:70.24mm

Exduder:94.40mm

Tapered tip exducer:98.45mm

Tip height:8.62mm

Superback:9.51mm

Overall height:58.77mm

bore size :8.25mm

Bore type:Threaded-M8x1.25LHT

Trailing Angle:45 degree

Cutback:0.0mm

Splitter height:0.00mm

SP height angle:0.00

Blade height:32.91mm

11+0 blades

Tapered tip Angle:17 degree

Forward rotation

It is for OE compressor housing

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

All the billet compressor wheels have been balanced.

The more models we also have.
