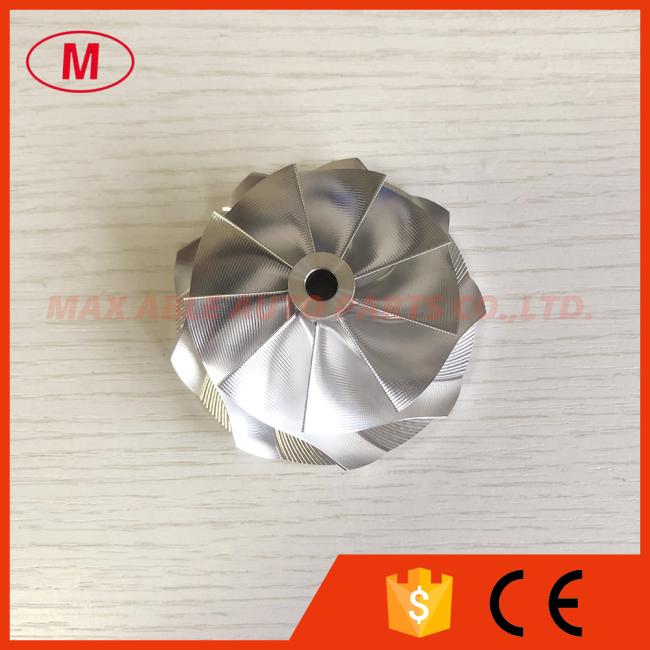

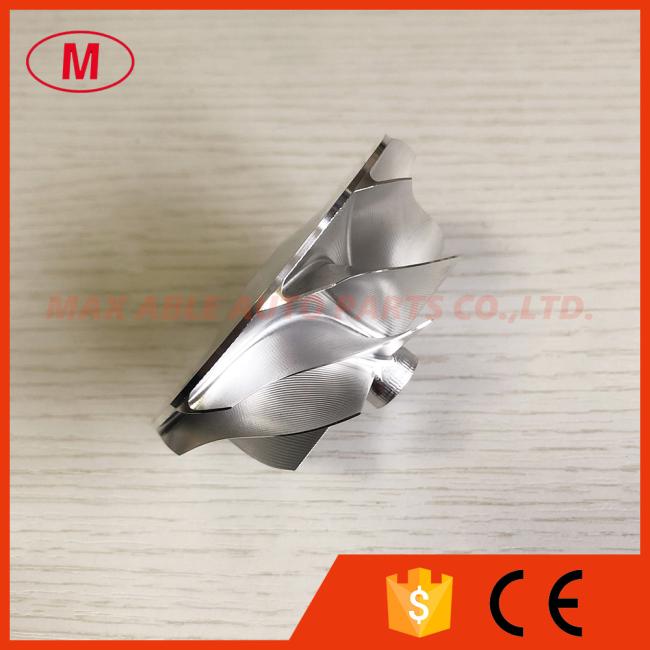

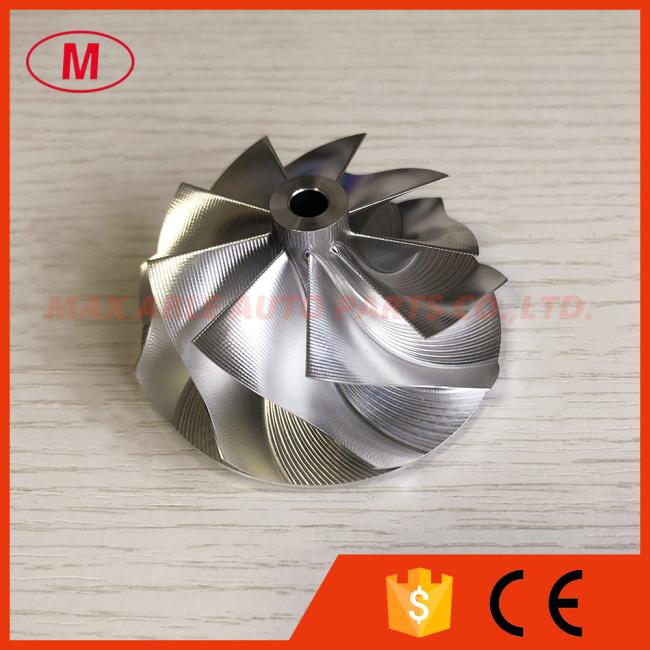

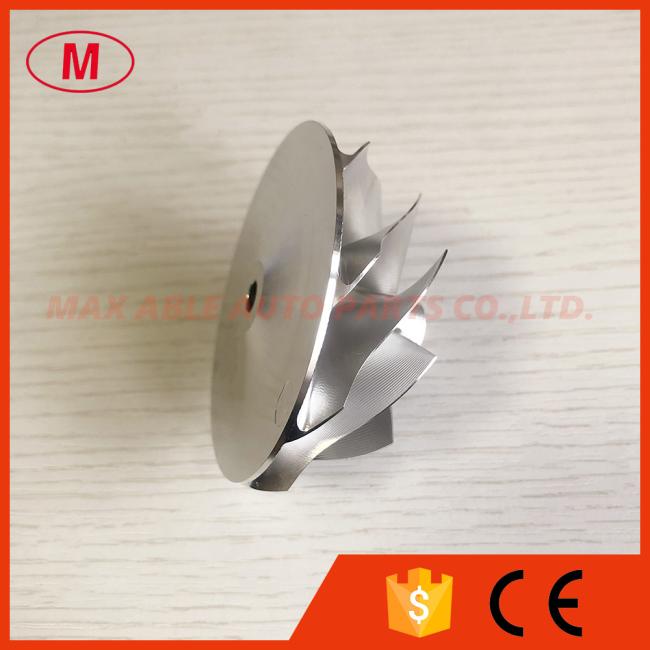

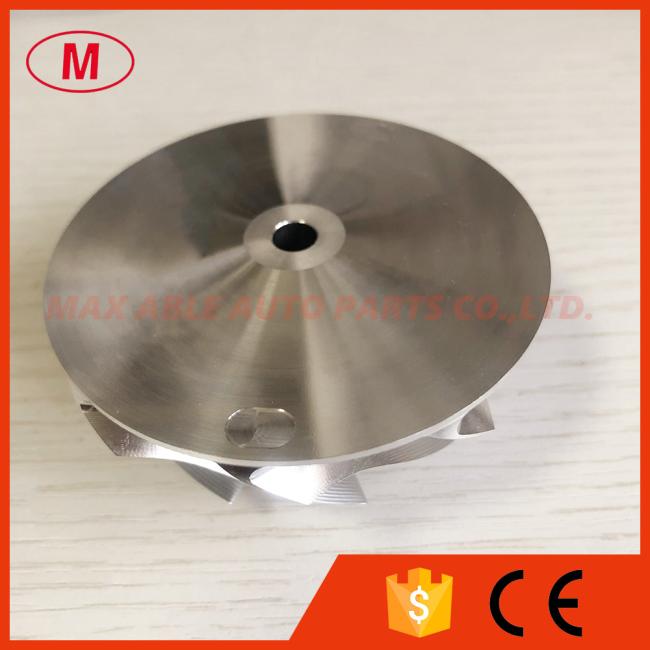

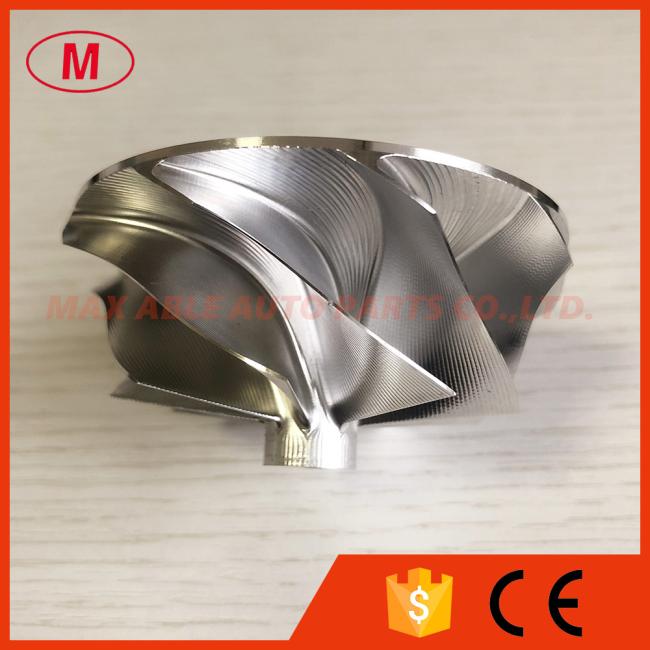

G25-660 54.28/67.40mm 9+0 Blades point milling turbo aluminum 2618/Milling/billet compressor wheel for 858161-5003S

1.Model:GT25-660 FORWARD

2. G25-660 54.28/67.40mm 9+0 Blades point milling turbo billet/aluminum 2618/Milling compressor wheel for 858161-5003S/877895-5002S/5005S/877895-5006S/871389-5010S-5011S
3.Size:

Nose diameter:12.40mm

Inducer:54.28mm

Exducer:67.40mm

Tapered tip exducer:69.80mm

Tip height:7.17mm

Trailing angle:35

Superback:2.23mm

Bore:6.00

Cutback:6.6

Overall height:33.85mm

SP Height angle:0.00

Blades height:26.05mm

Splitter height:0.00mm

9+0 blades

Tapered tip angle:11.4 degree

Forward rotation

It is for OE compressor housing

4.Good quality and competitive price

5.if you want to know more details ,please send email to me !

6.Application:

858161-5003S/877895-5002S/5005S/877895-5006S/871389-5010S-5011S

All the compressor wheel have been balanced.
