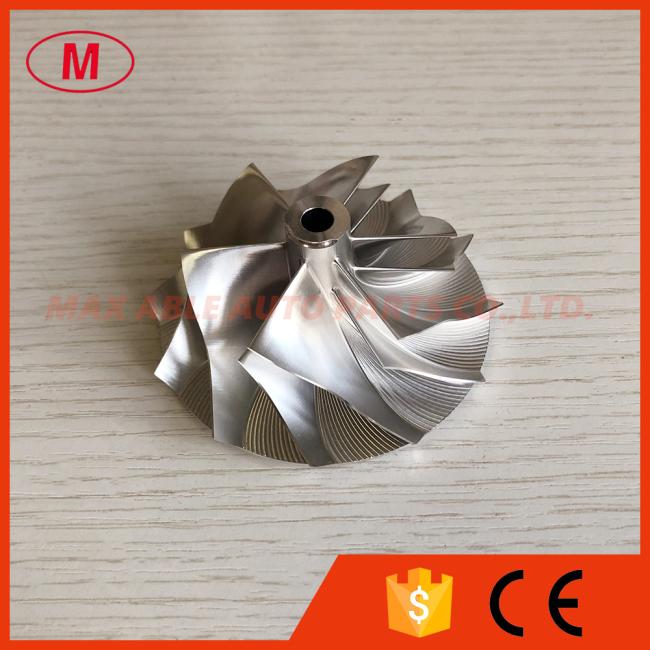

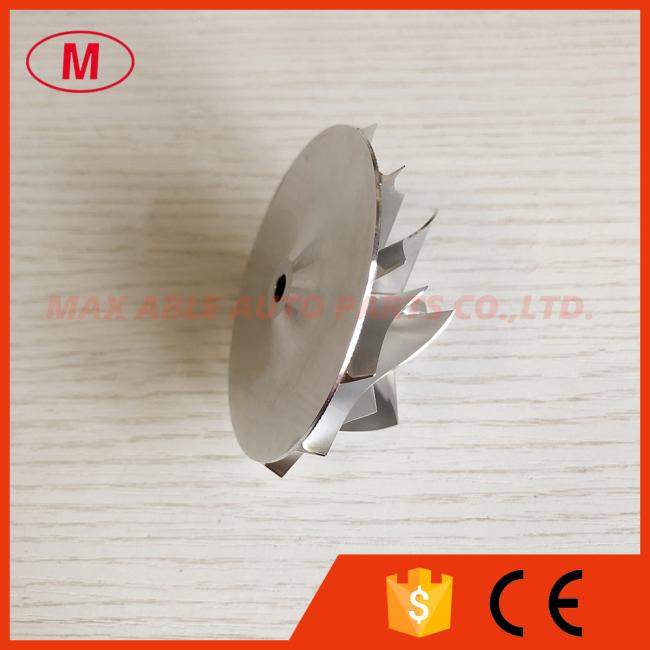

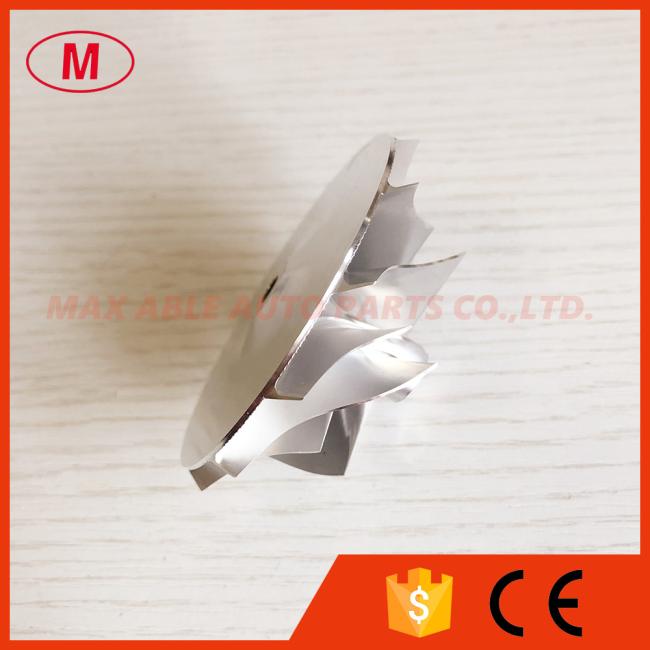

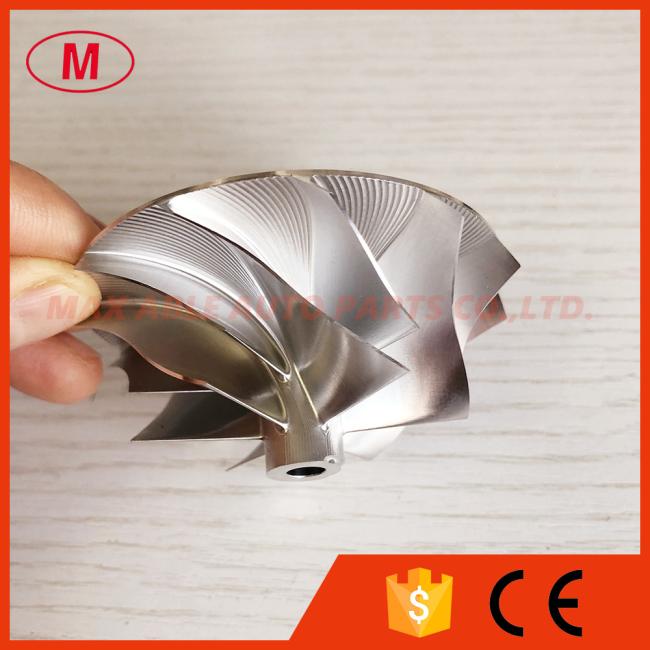

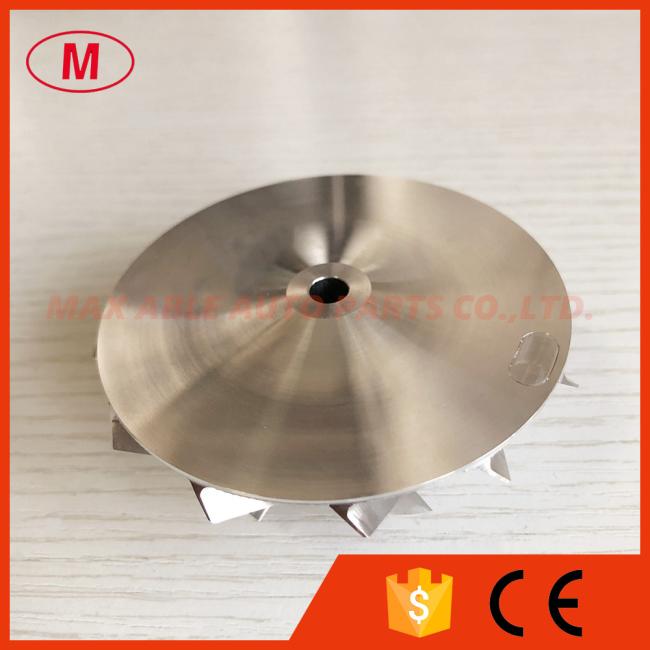

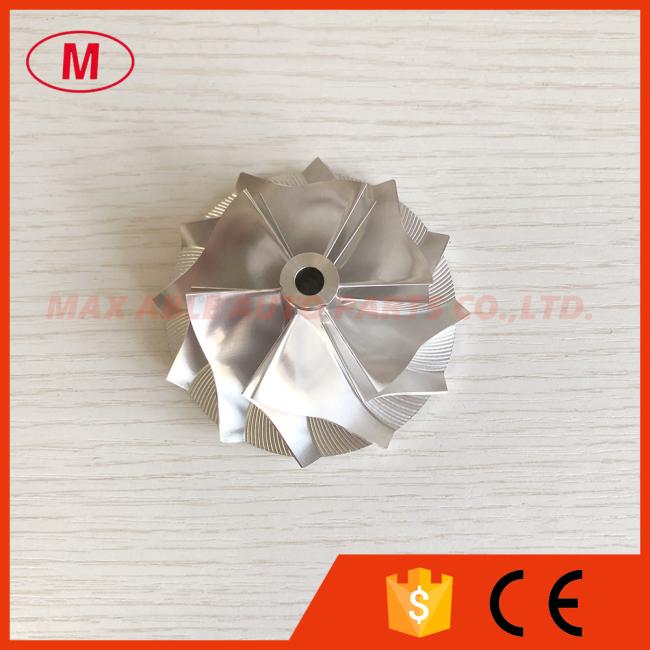

GT2871 452546-0005 53.00/70.98mm 6+6 blades turbo milling/aluminum 2618/billet compressor wheel for 452546-0005/Trim56

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description
1. MODEL:GT2871 forward
2.GT2871 452546-0005 53.00/70.98mm 6+6 blades turbo Billet/milling/aluminum 2618 compressor wheel for 452546-0005/Trim56
3.Size:
Nose diameter:12.30mm
Inducer:53.00mm
exducer:70.98mm
Tapered tip exducer:75.71mm
Tip height:5.09mm
Superback:2.32mm
bore size :5.99mm
Overall height:32.70mm
Cutback:3.0
Trailing Angle:50
splitter height:16.90mm
sp height angle:-0.70
Blades height:24.73mm
6+6 blades forward
it is custom size ,please check carefully before buying.
Tapered tip Angle:30 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.

All the compressor wheel have been balanced.
