K04 41.00/51.00.mm 11+0 blades high performance Turbocharger milling/aluminum 2618/billet compressor wheel

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description

1. MODEL:K04 forward

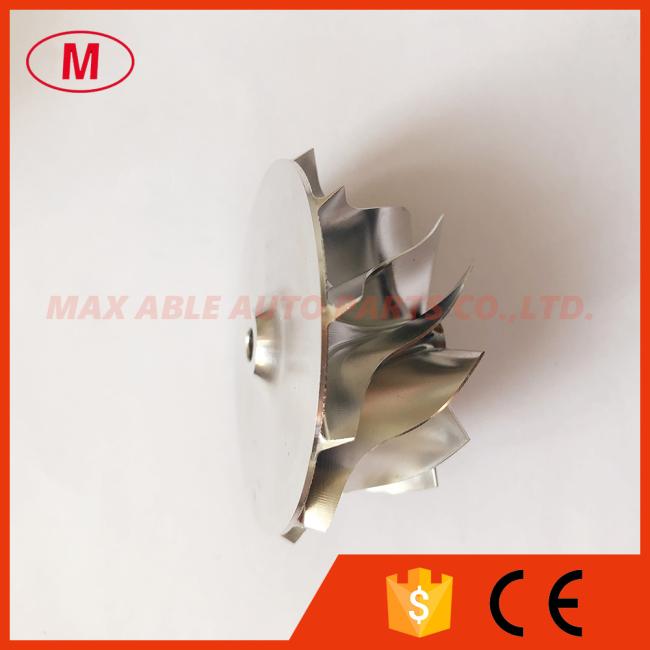

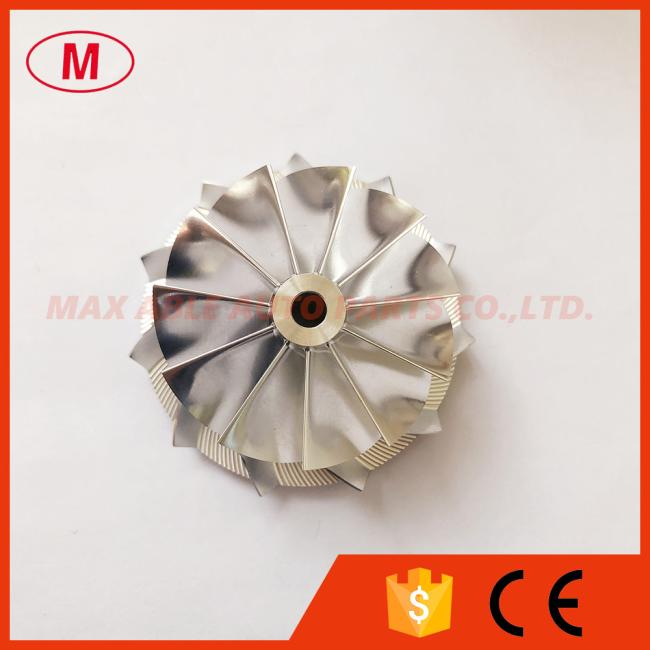

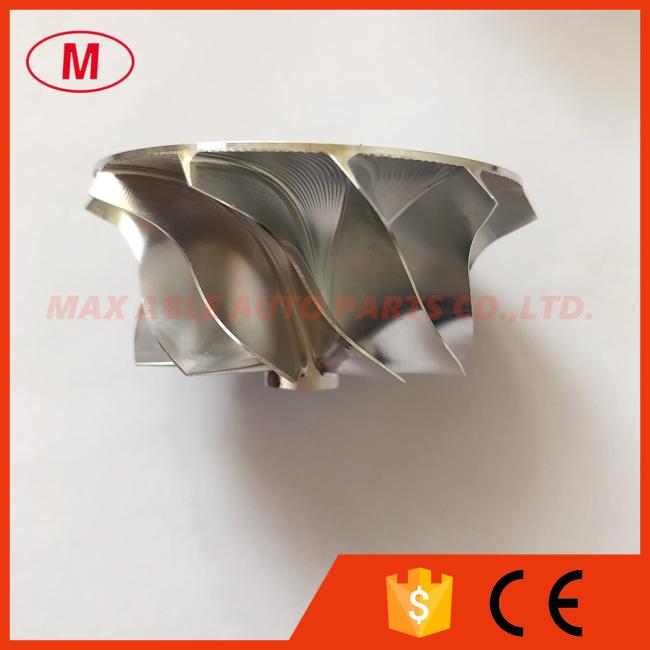

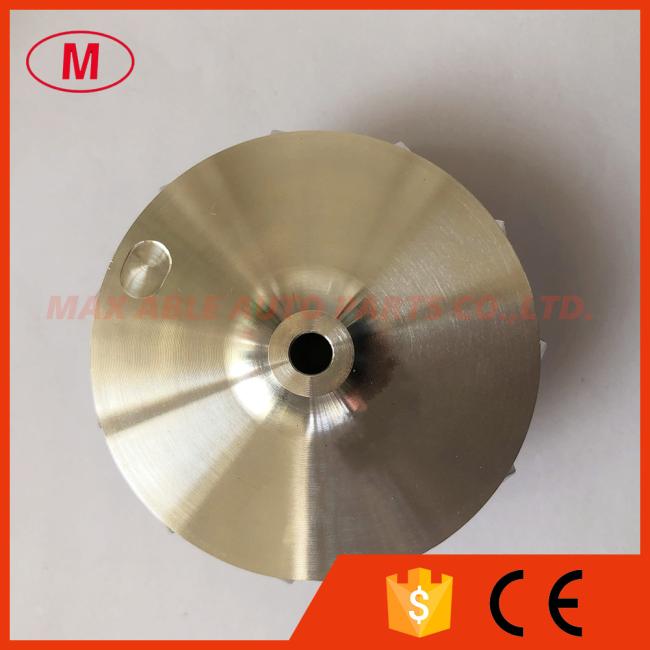

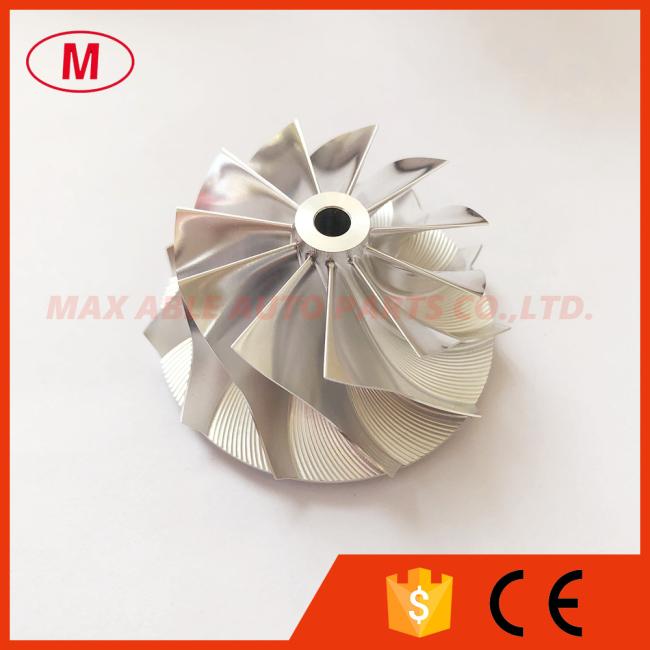

2.K04 41.00/51.00.mm 11+0 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel for Veloster
3.Size:

Nose diameter:9.50mm

Inducer:41.00mm

Exducer:51.00mm

Tapered tip Exducer:54.57mm

Tip height:4.09mm

Superback:2.60mm

Bore size :4.61mm

bore type:through

Overall height:27.60mm

Trailing Angle:60 degree

Cutback:2.0

Blade height:22.90mm

SP height Angle:-6.00

Splitter height:11.70mm

Tapered tip Angle:30 degree

11+0 blades

Forward rotation

It is for OE compressor housing

4.High quality and competitive price.

5.Any questions please send email to me

All the billet compressor wheels have been balanced.
