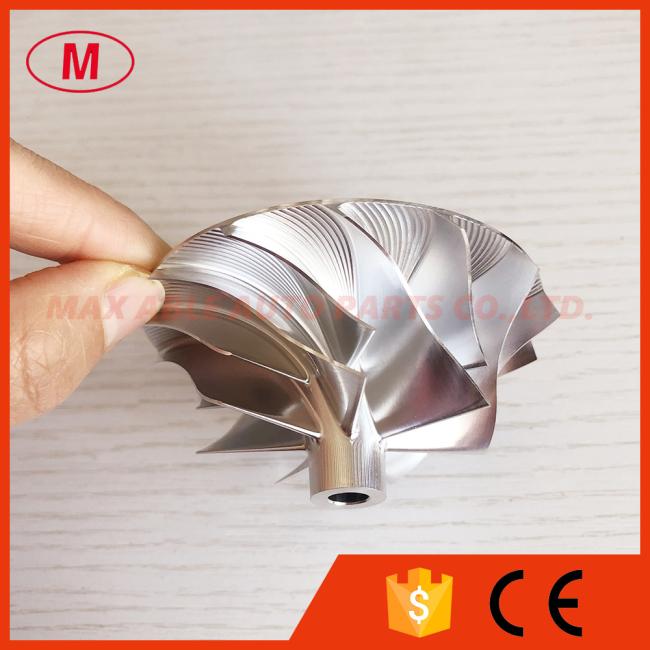

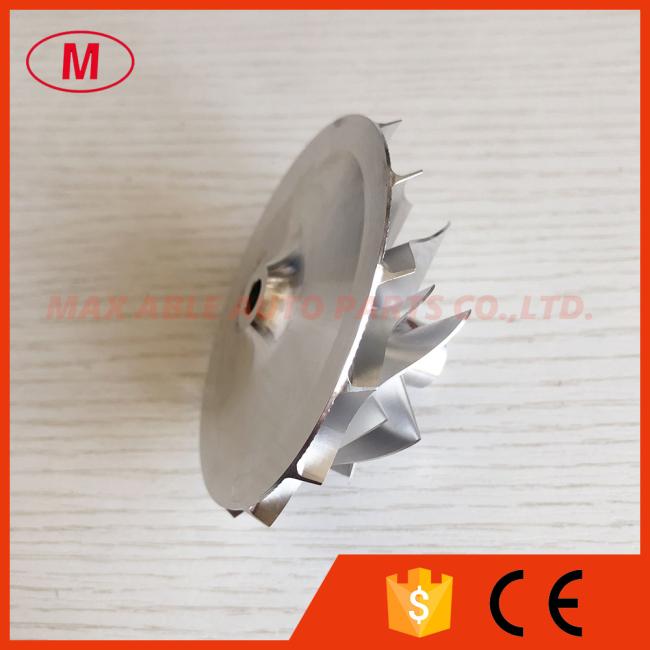

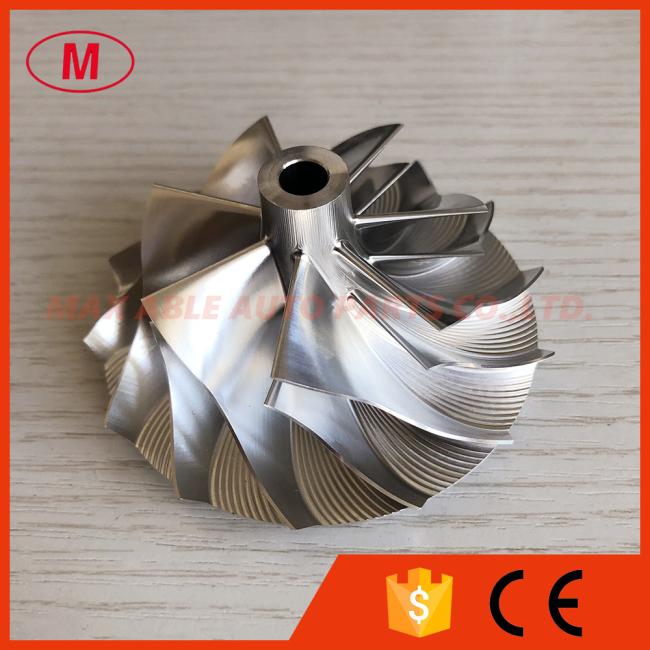

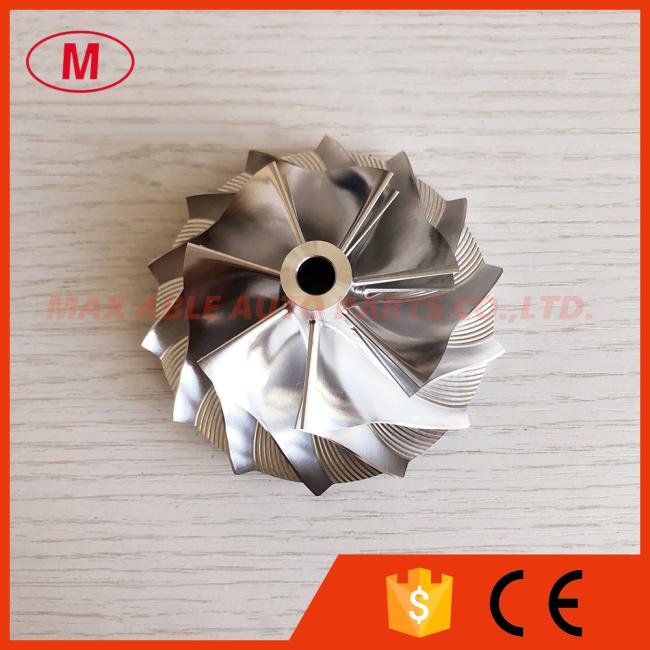

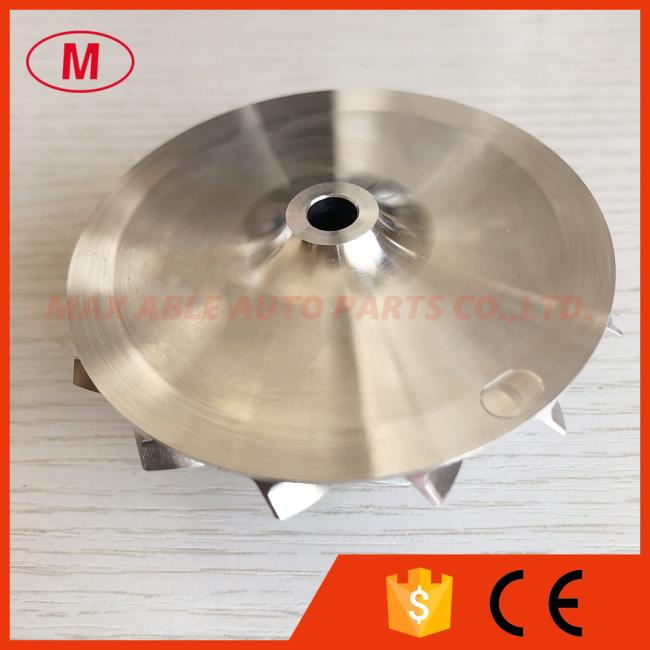

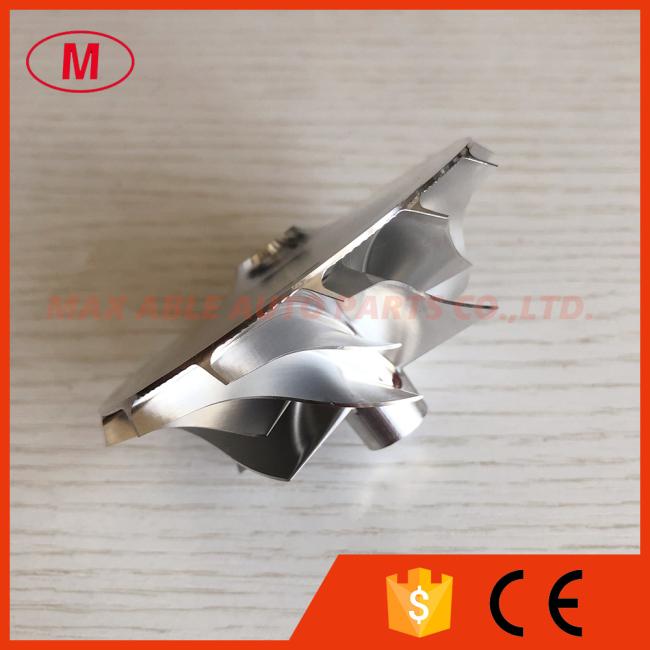

K26 55.40/77.00mm 7+7 blades performance turbo milling/aluminum 2618/billet compressor wheel

1.Model:K26 forward
2.K26 55.40/77.00mm 7+7 blades high performance turbo milling/aluminum 2618/billet compressor wheel

3.SIZE:

Nose Diameter:13.26mm

inducer:55.40mm

Exducer:77.00mm

Tapered tip exducer:81.71mm

Tip height:5.08mm

Superback:5.30mm

Overall height:40.30mm

bore size :7.02mm

bore type:through

Trailing angle:60 degree

Cutback:3.0mm

SP Height angle:-3.00

Blade height:25.92mm

Splitter height:17.05mm

7+7blades

forward rotation

Tapered tip angle:30 degree

It is custom size ,please check carefully before buying.

4.Good quality and competitive price

5. aluminum 2618/milling/ billet high performance compressor wheel

6.Please send email to me or talk to me on online ,if you want to know more details.

All the compressro wheels have been balanced.
