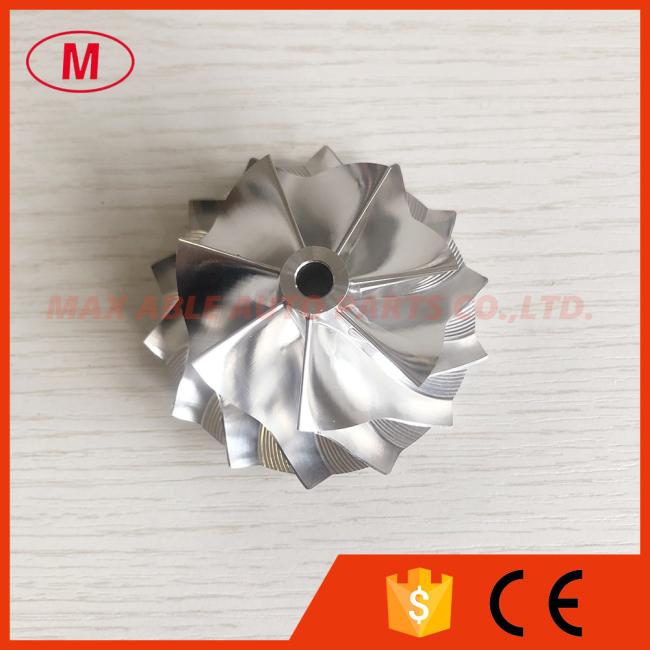

RHF55 48.62/65.00mm 7+7 blades high performance aluminum 2618/Billet compressor wheel isuzu

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Product Description
1. MODEL:RHF55 forward
2.RHF55 48.62/65.00mm 7+7 blades high performance Turbo aluminum 2618/milling/ Billet compressor wheel
3.Size:
Nose diameter:11.45m
Inducer:48.62mm
exducer:65.00mm
Tapered tip exducer:69.99mm
Tip height :5.32mm
superback:4.53mm
Overall height:37.92mm
Bore size:6.10mm
bore type:through
Trailing angle:45 degree
Cutback:0.0mm
SP height angle:0.00
Splitter height:15.70mm
Blade height:29.66mm
7+7 blades
Forward
Tapered tip angle:30 degree
It is for OE compressor housing
4.High quality and competitive price.
5.Any questions please send email to me.
