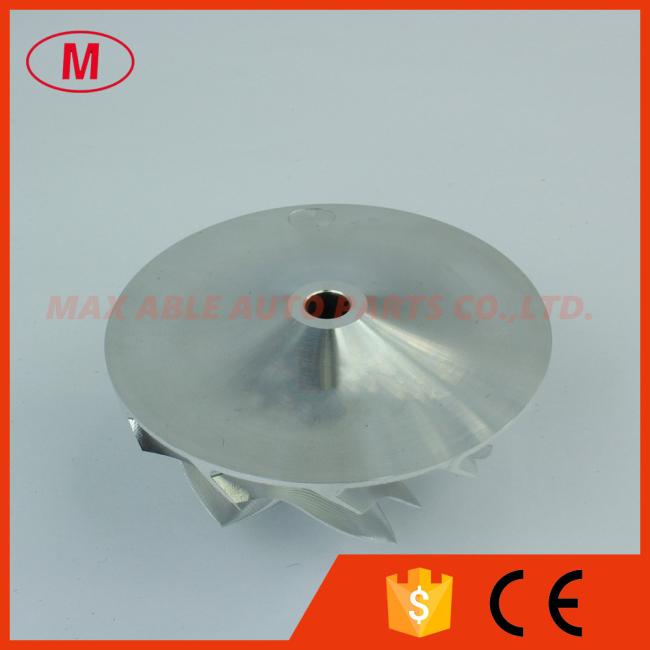

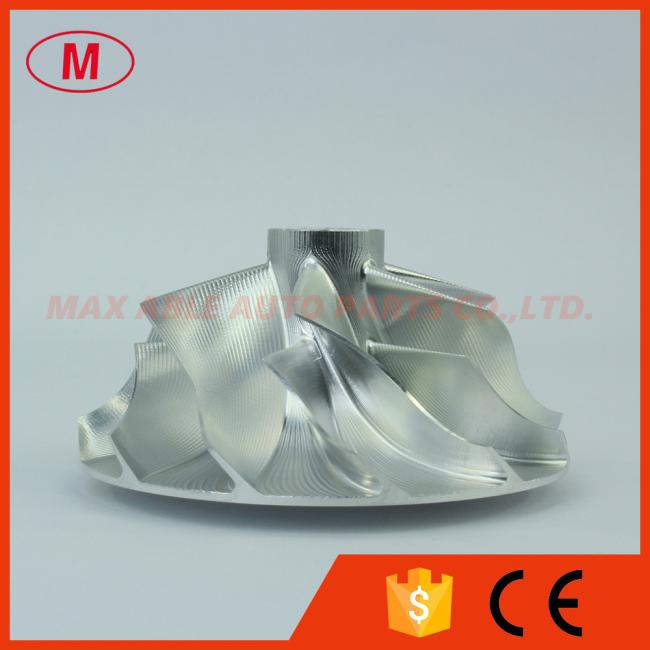

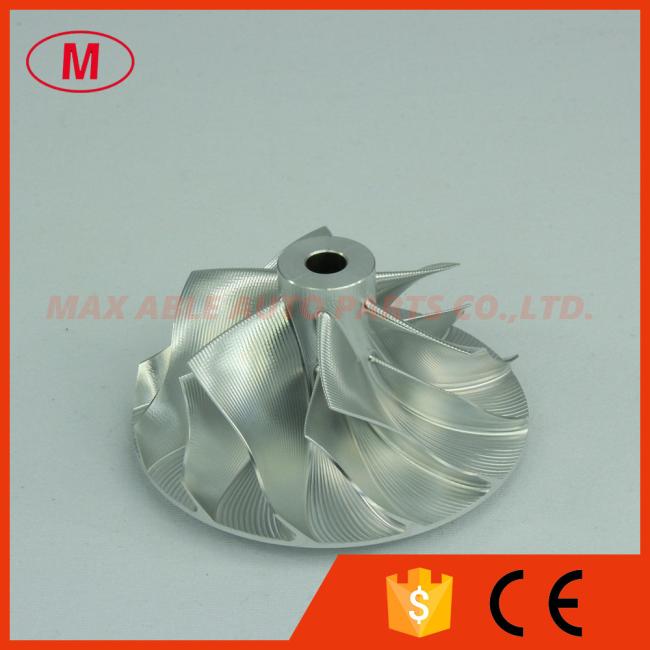

RHF55 F55-22B 6+6 blades 48.30/62.00mm turbo milling/aluminum 2618/billet compressor wheel for VU24/F55-22B/342727

Price Negotiable
Price: DISCUSS
MOQ: 1PC
Delivery Time: 3-7 DAYS
Brand: NO
Product Description





1. MODEL:RHF55 forward
2.RHF55 F55-22B 6+6 blades 48.30/62.00mm turbo milling/aluminum 2618/billet compressor wheel for VU24/F55-22B/342727/171212742E FerrariTC142ML01
3.Size:
Nose diameter:14.80mm
Inducer:48.30mm
exducer:62.00mm
Tip height:5.68mm
Superback:3.60mm
bore size :6.11mm
Overall height:33.00mm
Cutback:16.00
Trailing Angle:40 degree
Blade height:24.92mm
sp Height angle:1.80
Splitter height:15.05mm
6+6 blades forward rotation
It is for OE compressor housing
Tapered tip Angle:0 degree

4.High quality and competitive price.
5.if you want more details, please send email to me.

All the compressor wheel have been balanced.
