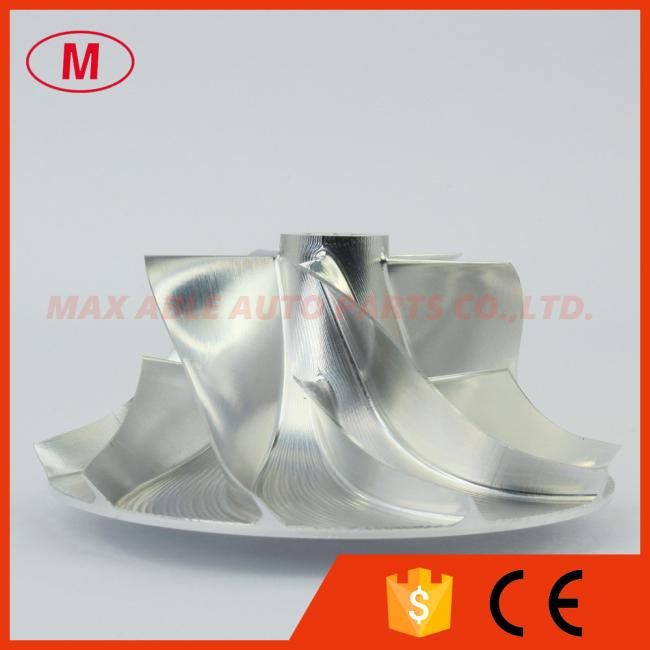

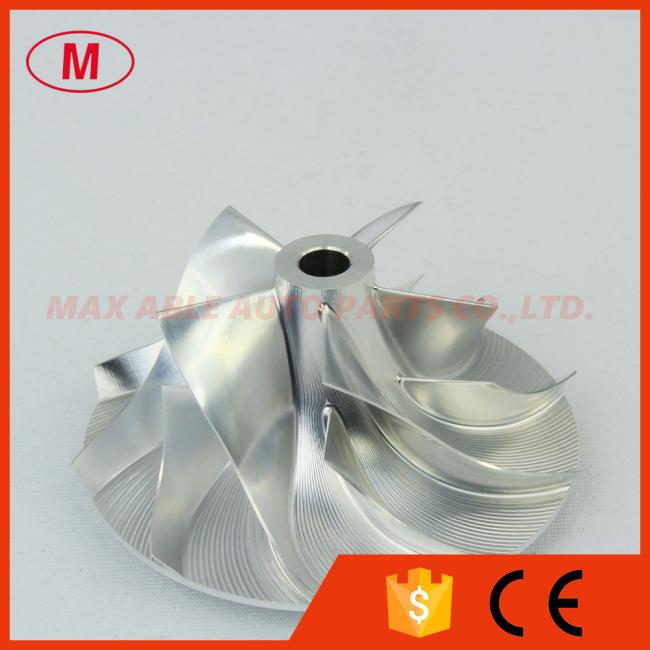

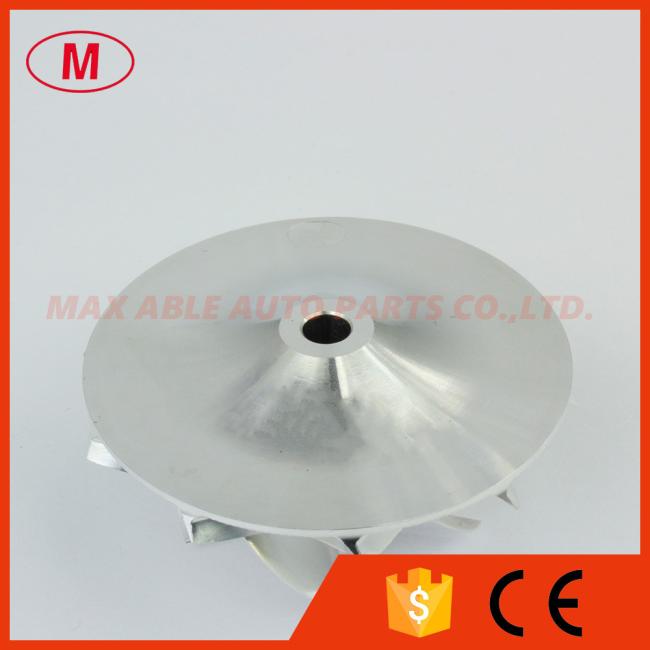

GTA2052V 717697-0003 34.85/52.00mm 5+5 blades high performance turbo milling/aluminum 2618/billet compressor wheel

1.Model:GTA2052V forward

2.GTA2052V 717697-0003 34.85/52.00mm 5+5 blades high performance turbo milling/aluminum 2618/billet compressor wheel for 752610-0009 , 752610-0010 , 752610-0012 , 752610-0013 , 752610-0015 , 752610-0025 , 752610-0026 , 752610-0029 , 752610-0032 , 752610-5009S , 752610-5010S , 752610-5012S , 752610-5013S , 752610-5015S , 752610-5025S , 752610-5026S , 752610-5029S , 752610-5032S

3.SIZE:

Nose Diameter:10.00mm

inducer:34.85mm

Exducer:52.00mm

Ttapered tip exducer:54.92mm

Tip height:3.53mm

Superback:3.90mm

Overall height:27.00mm

bore size :5.08mm

bore type:through

Trailing angle:60 degree

Cutback:0.0

SP Height angle:-10.10

Blade height:21.10mm

Splitter height:11.90mm

5+5blades

forward rotation

Tapered tip angle:30 degree

It is for OE compressor housing

Application:

752610-0009 ,

752610-0010 ,

752610-0012 ,

752610-0013 ,

752610-0015 ,

752610-0025 ,

752610-0026

, 752610-0029 ,

752610-0032 ,

752610-5009S ,

752610-5010S ,

752610-5012S ,

752610-5013S ,

752610-5015S ,

752610-5025S ,

752610-5026S ,

752610-5029S ,

752610-5032S

4.Good quality and competitive price

5. aluminum 2618/milling/ billet high performance compressor wheel

6.Please send email to me or talk to me on online ,if you want to know more details.

All the compressro wheels have been balanced.

we can produce as your requirement ,the minimun order 5pcs
