S200 59.90/85.90mm 6+6 blades Turbo milling/aluminum 2618/billet compressor wheel

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description
1. MODEL:S200 forward

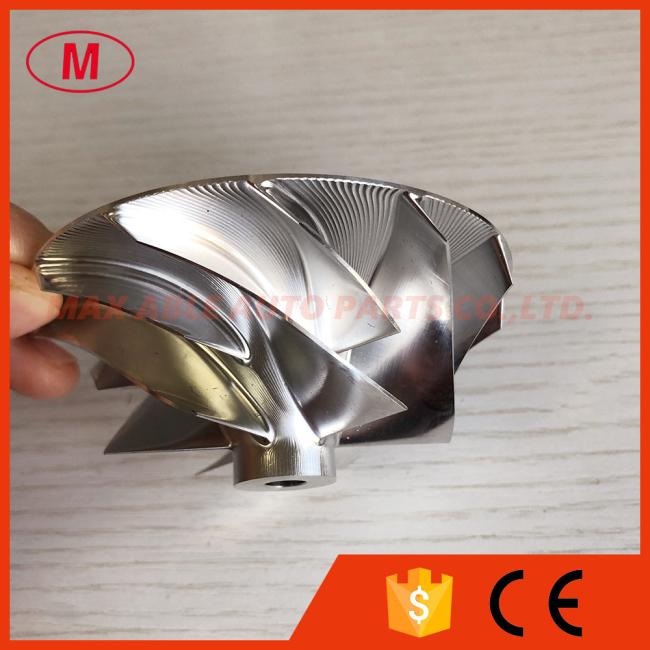

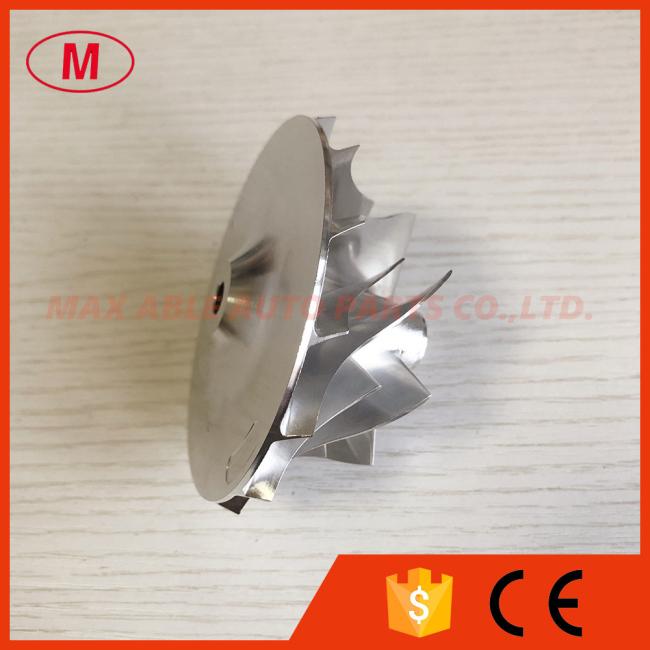

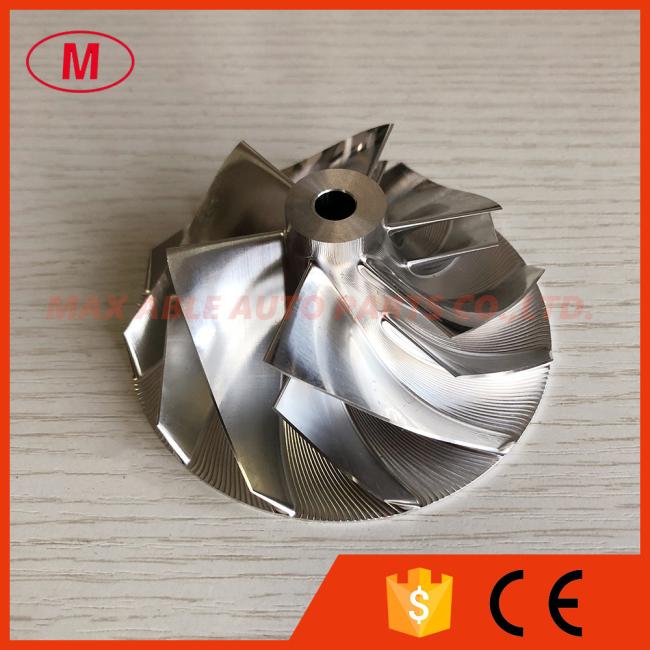

2.S200 59.90/85.90mm 6+6 blades Turbo milling/aluminum 2618/billet compressor wheel
3.Size:
Nose diameter:17.50mm
Inducer:59.90mm
exducer:85.90mm
Tip height:7.00mm
Superback:0.00mm
bore size :7.00mm
Overall height:34.41mm
​Trailing Angle:45
Cutback:0.0
Tapered tip Angle:0 degree
Blade height:28.50mm
Splitter height:17.30mm
sp height angle:-4.20
6+6 blades forward
it is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.

All the compressor wheel have been balanced.
