RHF5 45.28/60.00mm 7+7blades high performance Turbo milling/aluminum 2618/billet compressor wheel VF23/1441AA171

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days after payment
Product Description
1. MODEL:RHF5 forward

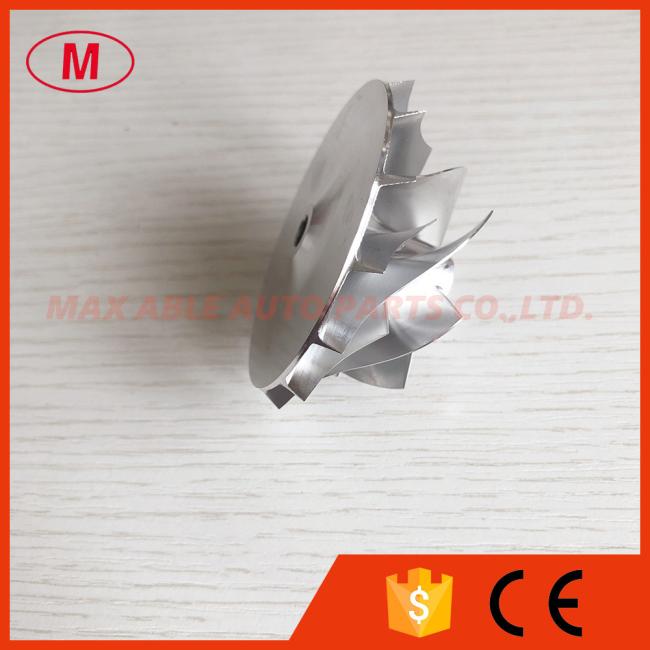

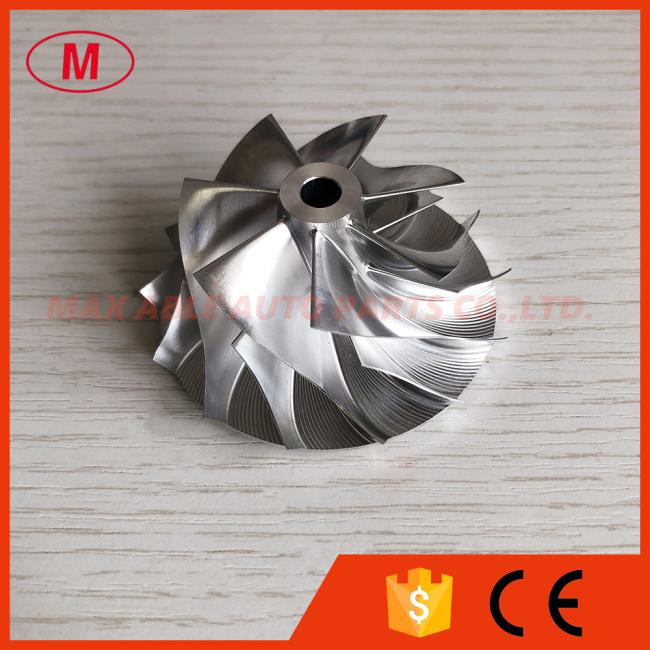

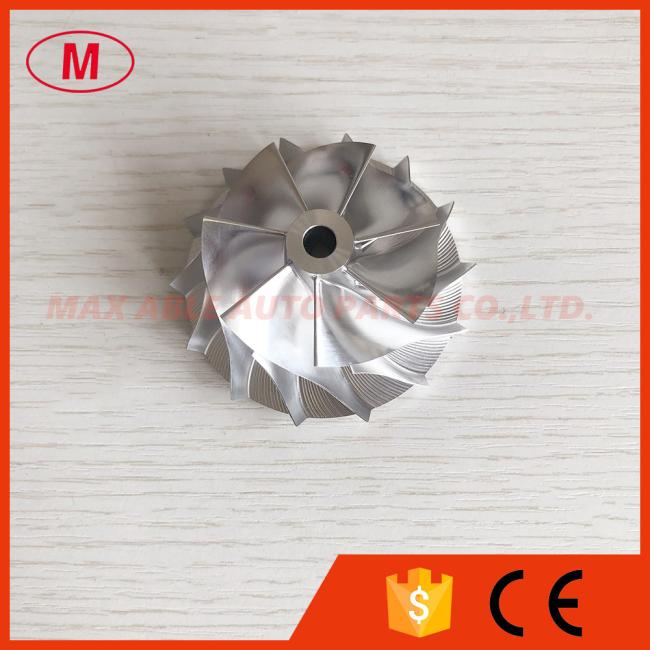

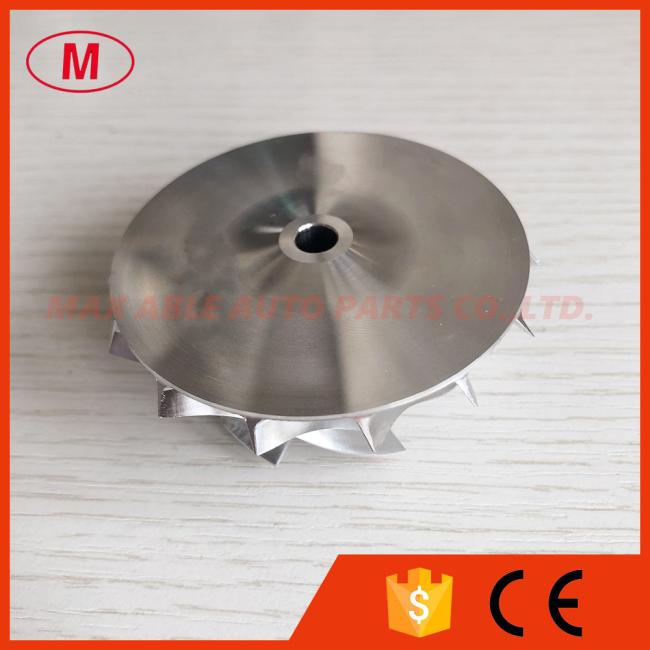

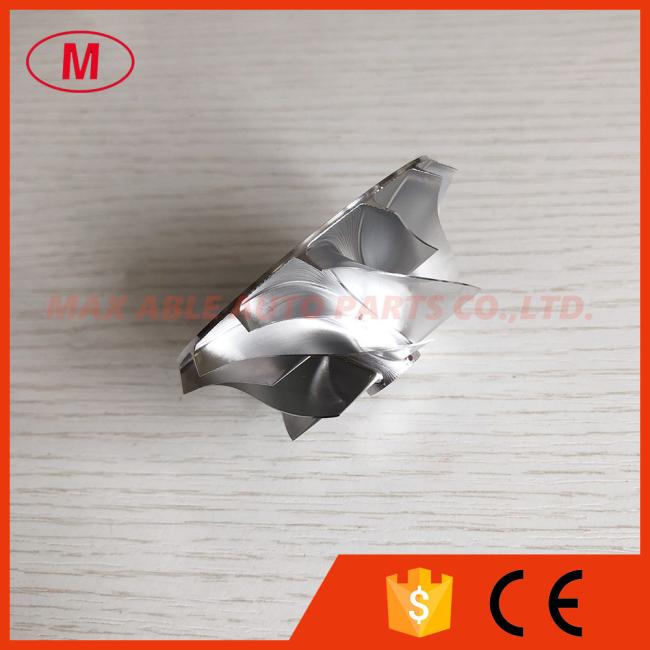

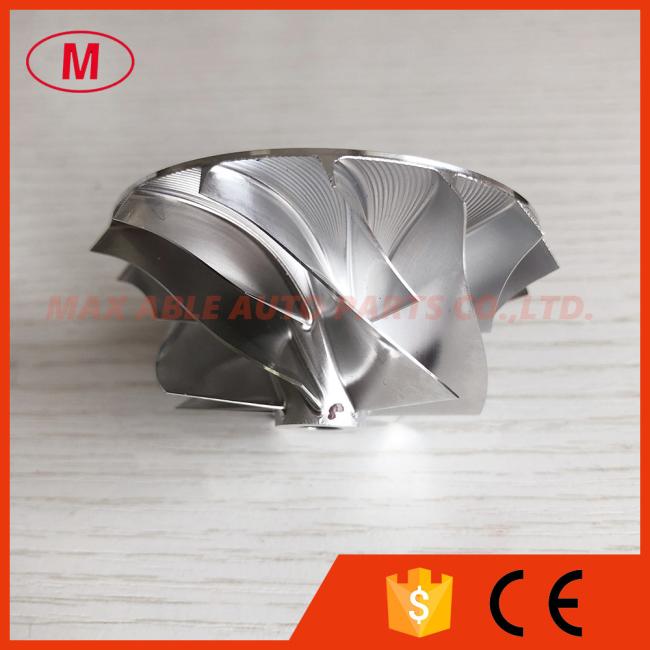

2.RHF5 45.28/60.00mm 7+7 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel for VF23/1441AA171
3.Size:
Nose diameter:12.50mm
Inducer:45.28mm
exducer:60.00mm
Tapered tip exducer:65.06mm
Tip height:5.39mm
Superback:1.85mm
bore size :6.11mm
Overall height:29.32mm
Trailing angle:75
Cutback:3.0
SP Height angle:2.00
Blades height:25.40mm
Splitter height:14.05mm
7+7 blades
forward rotation
Tapered tip angle:30 degree
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.

All the compressor wheel have been balanced.
