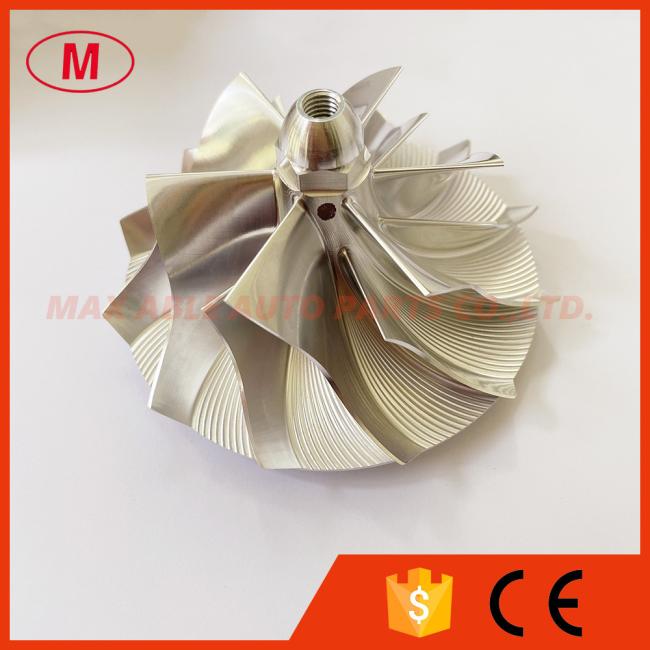

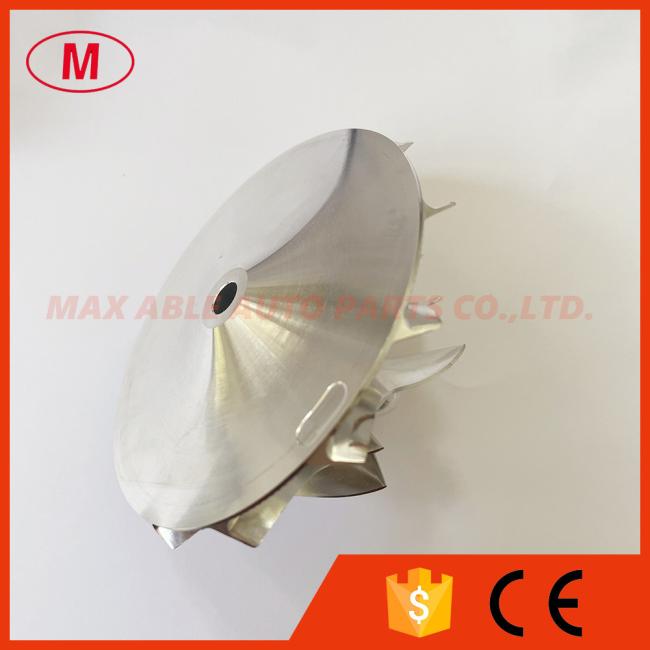

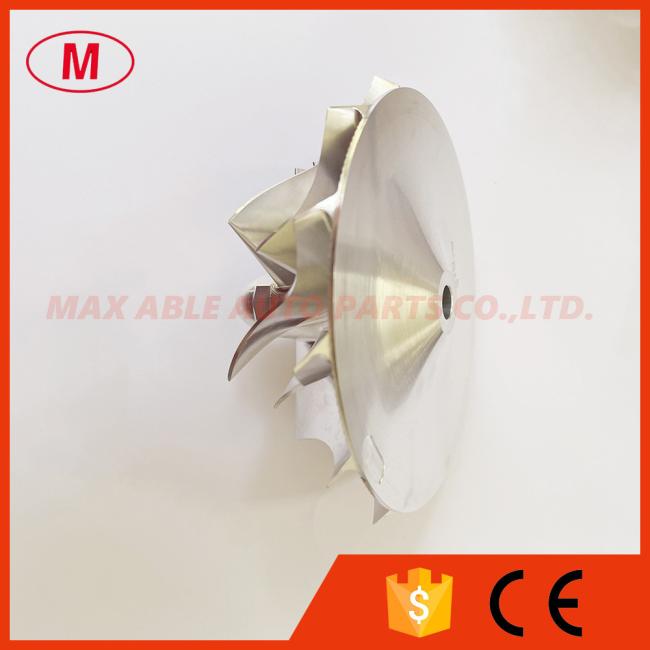

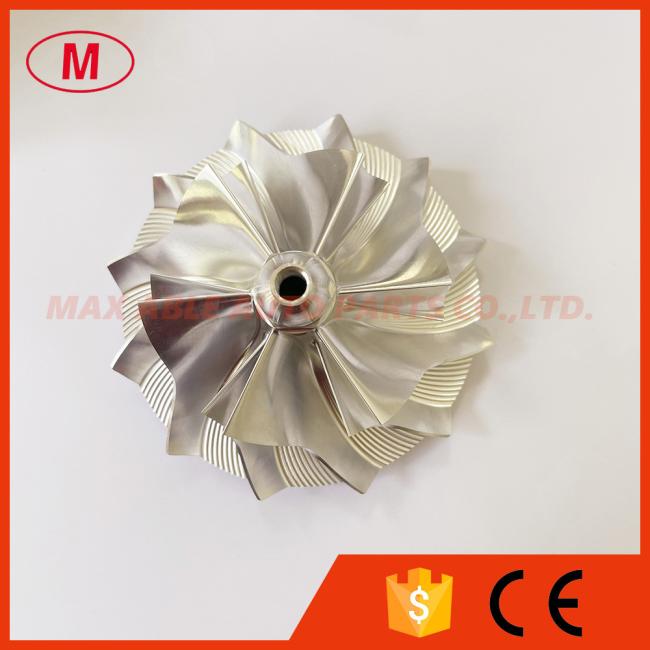

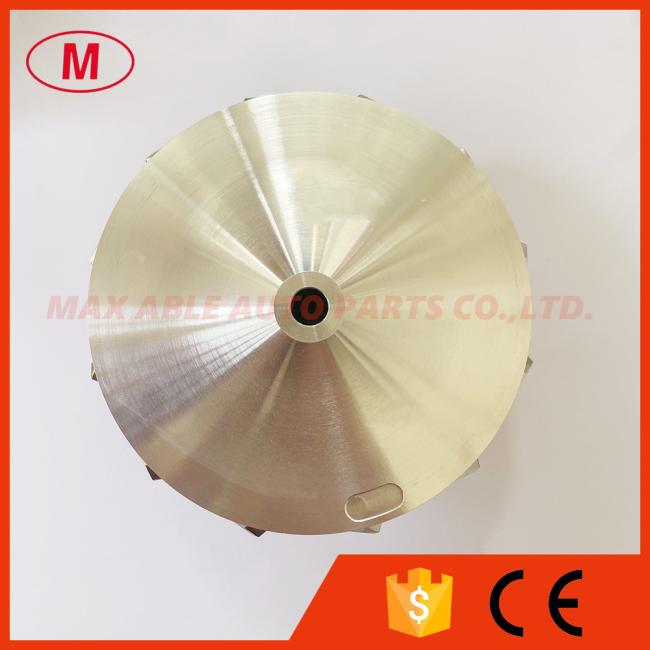

GT3794 65.90/91.40mm 6+6 blades Splitter High,Bullet Head milling/aluminum 2618/billet compressor wheel for chevy 6.6L

Price Negotiable
Price: DISCUSS
MOQ: 1PC
Delivery Time: 3-7 DAYS
Brand: NO
Product Description
1. MODEL:GT3794 forward
2.GT3794 65.90/91.40mm 6+6 blades Splitter High,Bullet Head Turbocharger milling/aluminum 2618/billet compressor wheel for chevy 6.6L
3.Size:
Nose diameter:17.32mm
Inducer:65.90mm
exducer:91.40mm
Tapered tip exducer:98.00mm
Tip height:6.72mm
Superback:5.55mm
Overall height:53.50mm
bore size :7.48mm
Bore type:Threaded-M7x1.0LHT
Trailing angle:45
Cutback:0.0
SP Height angle:-7.10
Blades height:33.01mm
Splitter height:24.25mm
6+6 blades
forward rotation
Tapered tip angle:30 degree
It is custom size ,please check carefully before buying.
4.High quality and competitive price.
5.if you want more details, please send email to me.

All the compressor wheel have been balanced.
