TF035 6+6 blades 42.00/51.00mm high performance Turbo milling/aluminum 2618/billet compressor wheel

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description



1. MODEL:TF035 forward

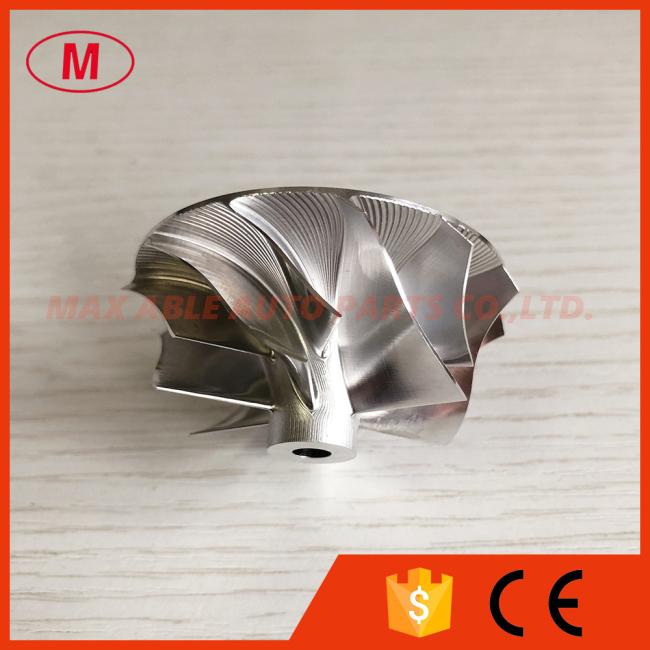

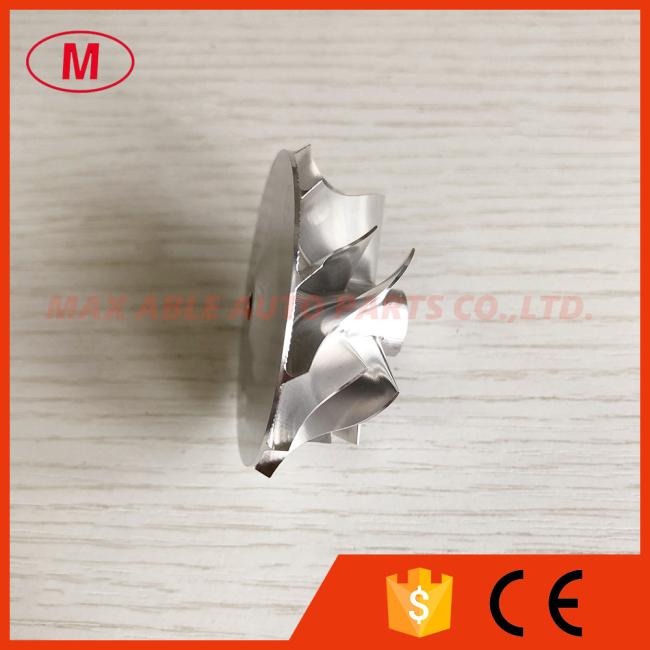

2.TF035 6+6 blades 42.00/51.00mm high performance Turbo milling/aluminum 2618/billet compressor wheel

3.Size:

Nose diameter:11.53mm

Inducer:42.00mm

Exducer:51.00mm

Tapered tip exducer:54.11mm

Tip height:3.69mm

Superback:1.90mm

Overall height:25.30mm

bore size :5.00mm

Trailing angle:45

Cutback:0.0

SP height angle:-4.70

blade height:18.90mm

Splitter height:13.50mm

6+6 Blades

forward rotation

Tapered tip angle:30 degree

It is custom size ,please check carefully before buying

4.High quality and competitive price.

5.if you want more details, please send email to me.

All the compressor wheel have been balanced

we can also produce as your requirement.
