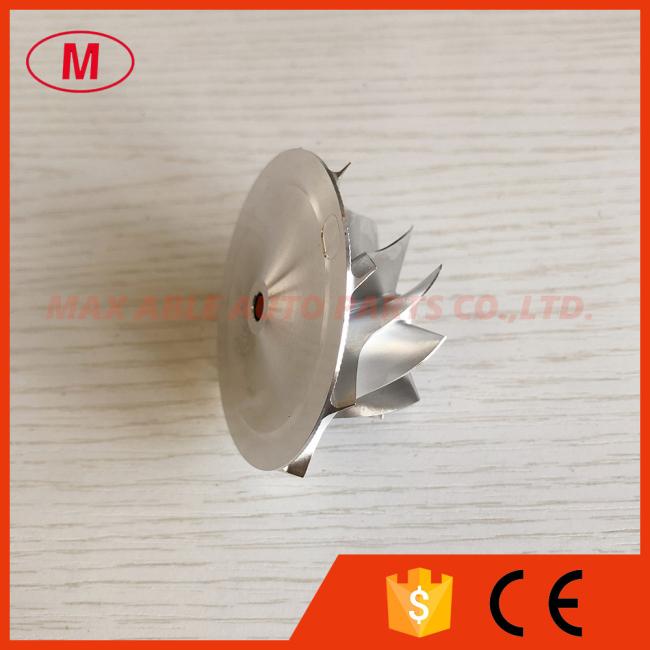

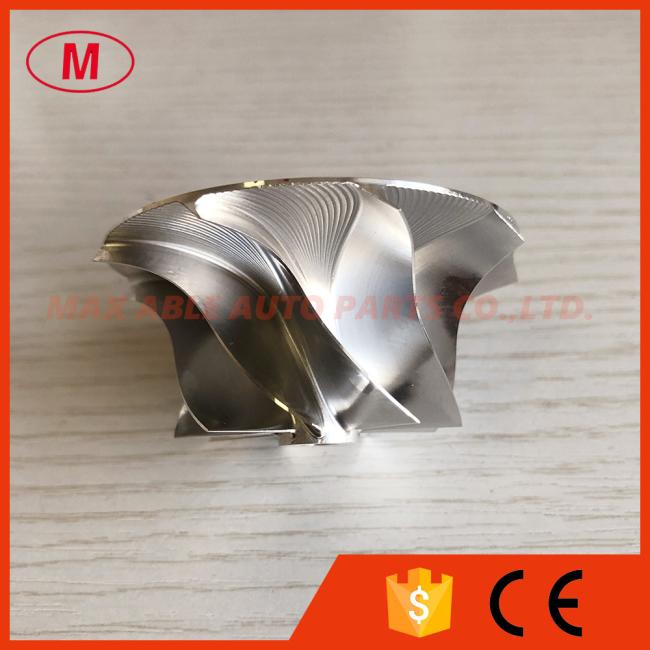

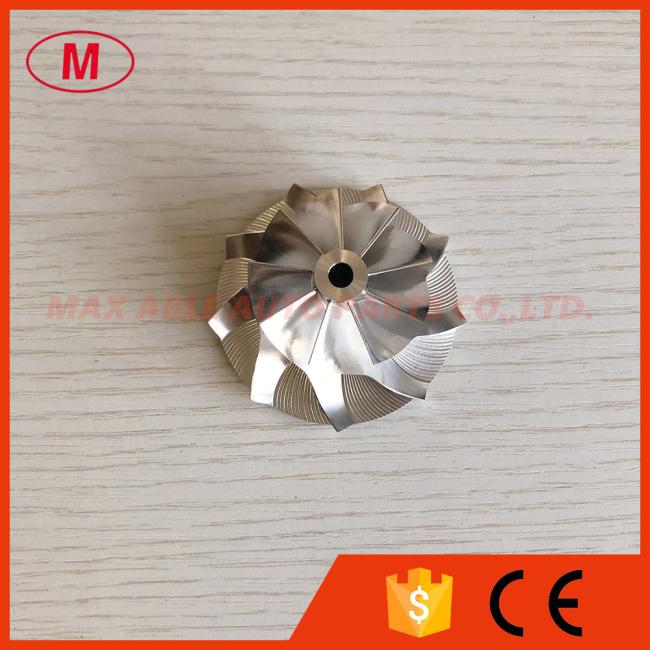

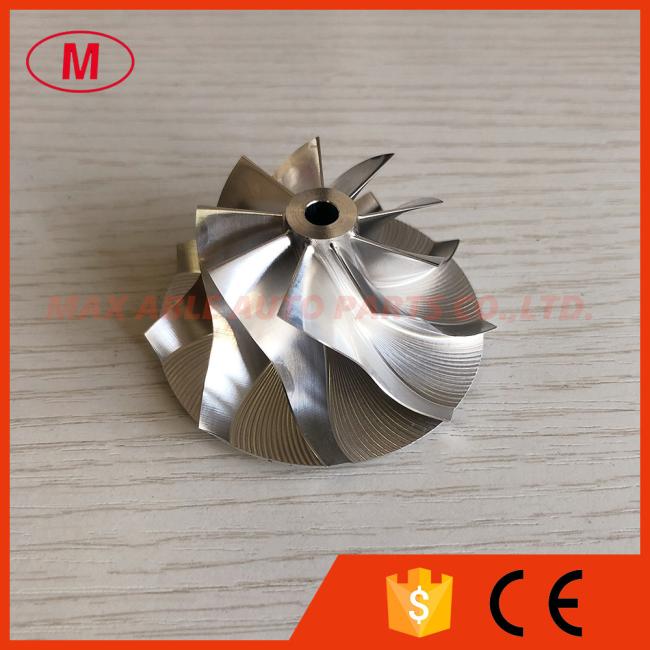

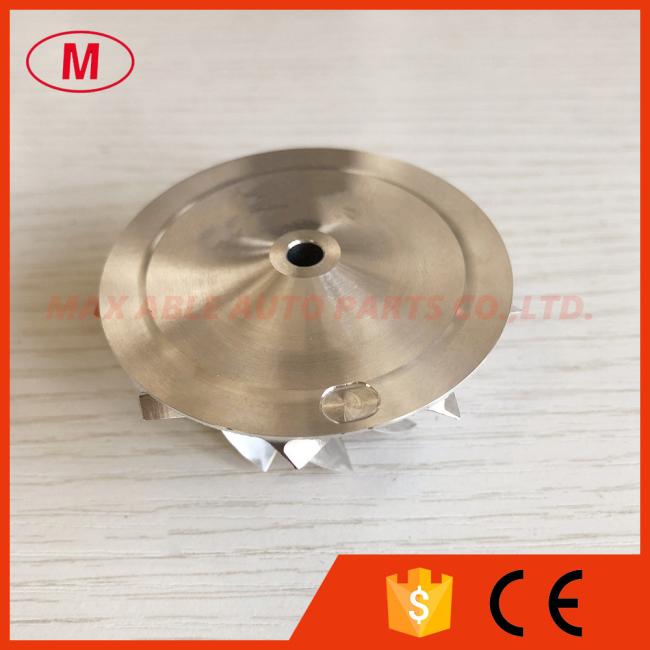

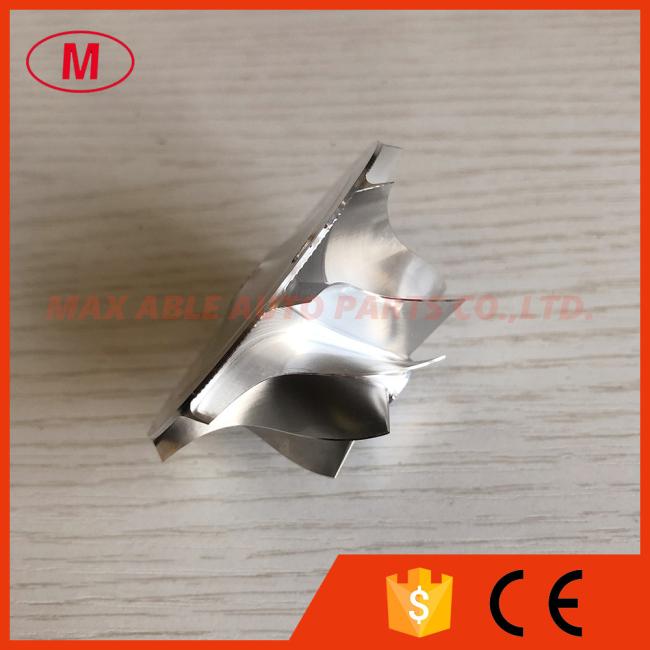

CT10V 38.87/58.01mm 17291-0L040 9+0 blades high performance turbo milling/aluminum 2618/Billet compressor wheel

1. MODEL:CT10V forward

2. CT10V 38.87/58.01mm 17291-0L040 9+0blades high performance turbo billet/milling/aluminum 2618 compressor wheel for Land Cruiser 2.0/3.0D 17201-0L040/30100/30101/30160/10181/30110/30010/33110/30180/30150

3.Size:

Nose diameter:10.99mm

inducer:38.87mm

Exducer:58.01mm

Tapered tip exducer:61.60mm

Tip height:4.11mm

Superback:2.45mm

Overall height:29.61mm

Bore size:5.10mm

Trailing angle:45

Cutback:0.0

Sp height angle:0.00

Splitter height:0.00mm

Blade height:25.68mm

9+0 blades

Forward rotation

Tapered tip angle:30 degree

It is for OE compressor housing

Application:

17201-0L040

17201-30100

17201-30101

17201-30160

17201-10181

17201-30110

17201-30010

17201-33110

17201-30180

17201-30150

4.High quality and competitive price.

5.Any questions please send email to me,we have many size.

All the compressor wheel have been balanced.
