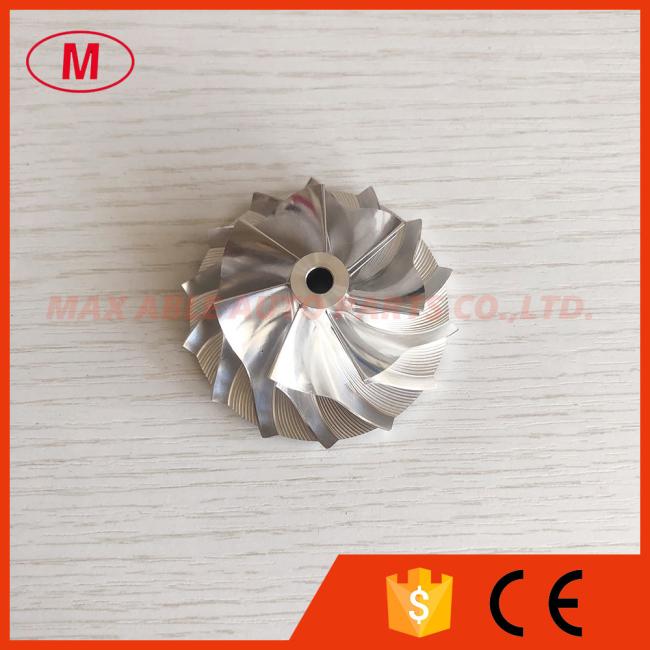

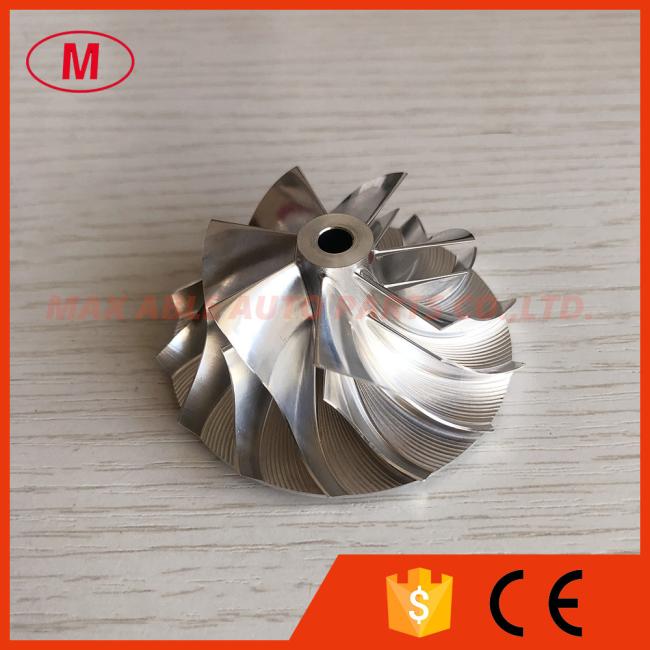

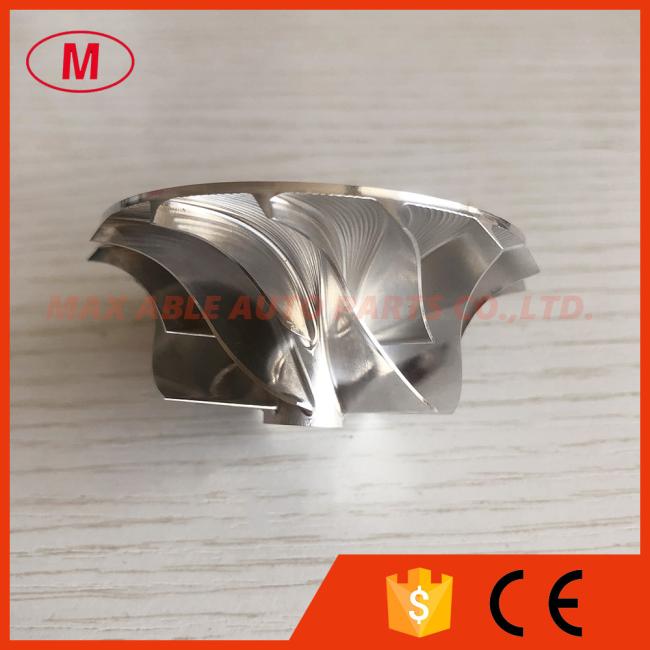

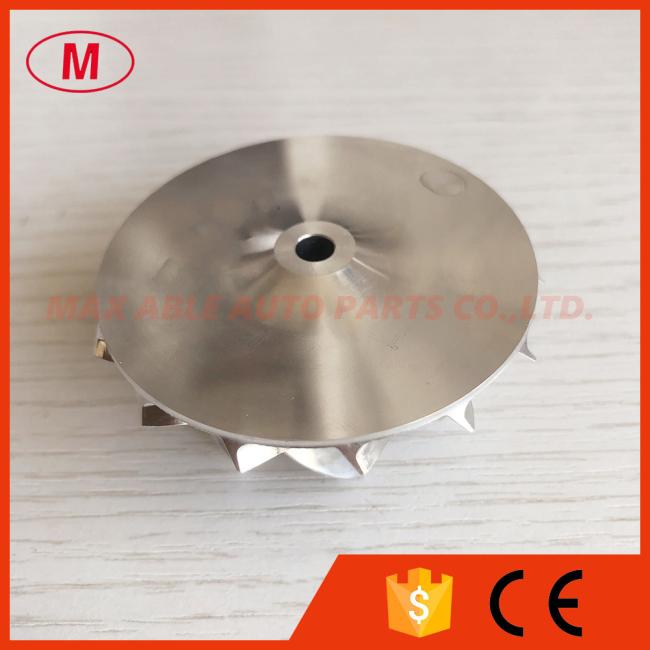

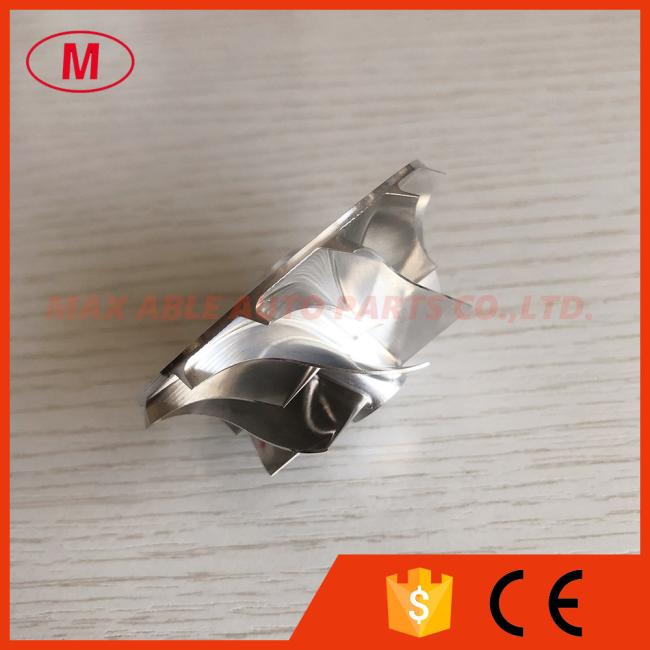

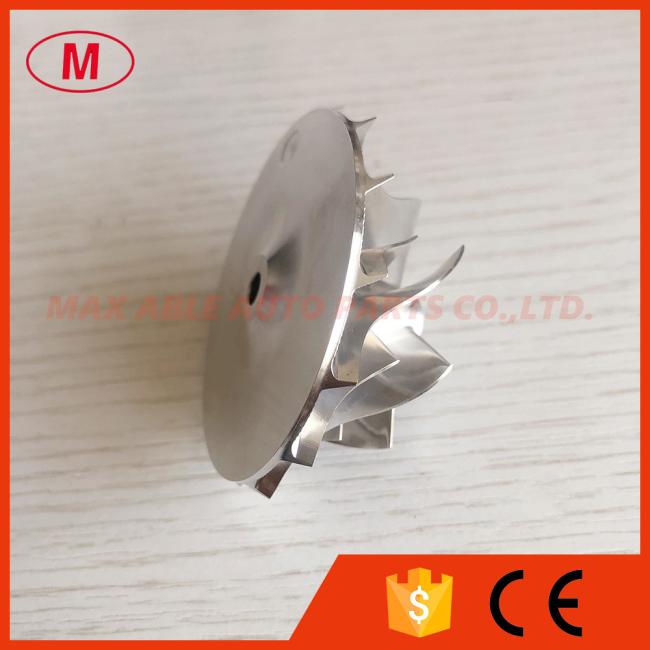

TD04 7+7 blades 49189-43400 40.62/55.93mm high performance turbo milling/aluminum 2618/billet compressor wheel

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Product Description
1. MODEL:TD04 13T-6 forward
2.TD04 7+7 blades 49189-43400 40.62/55.93mm high performance turbo Billet/milling/aluminum 2618 compressor wheel for 49189-02914/02913/02912/02911 I-vecoTruckDailyIV3.0HPI,F1C
3.Size:
Nose Diameter:11.00mm
Inducer:40.62mm
exducer:55.93mm
Tapered tip exducer:59.77mm
Overall height:26.40mm
bore size :5.00mm
bore type:through
Tip height:4.33mm
Superback:1.95mm
Blade height:22.50mm
Trailing Angle:65
Cutback:2.5
splitter height:14.00mm
SP height angle:0.00
7+7 blades forward
Tapered tip angle:30 degree
It is for OE compressor housing.
4.High quality and competitive price.
5.if you want more details, please send email to me.

All the compressor wheel have been balanced.
