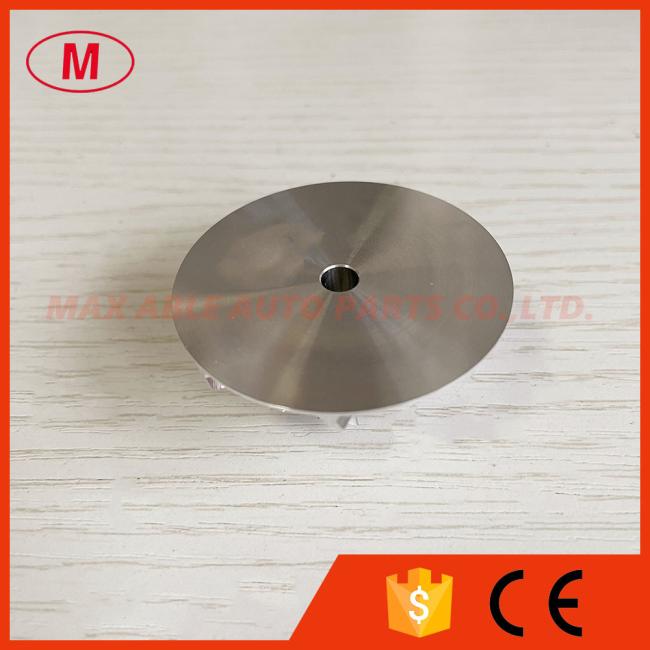

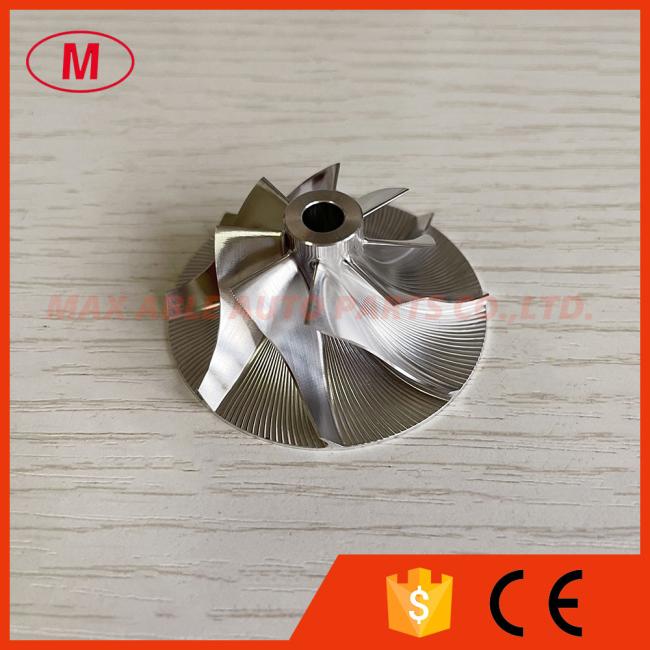

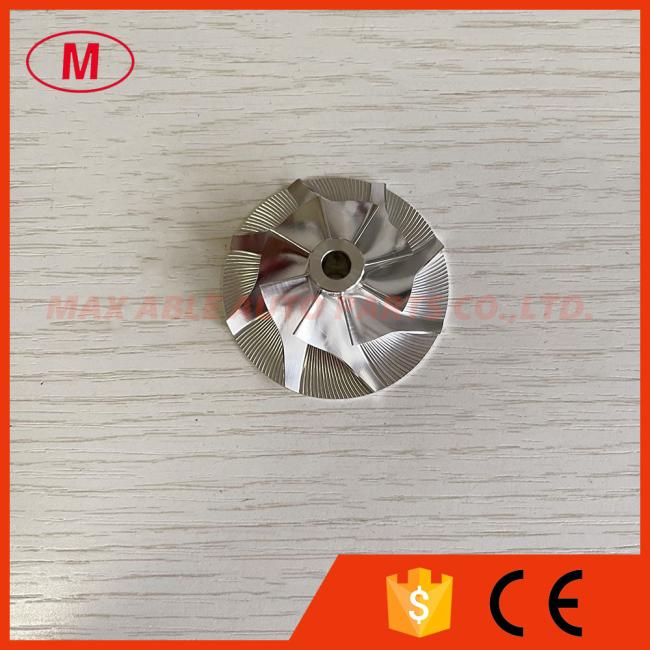

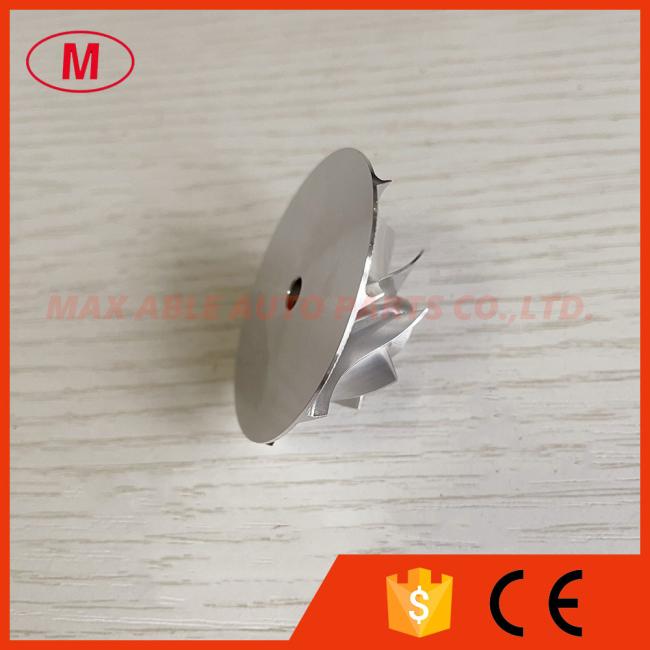

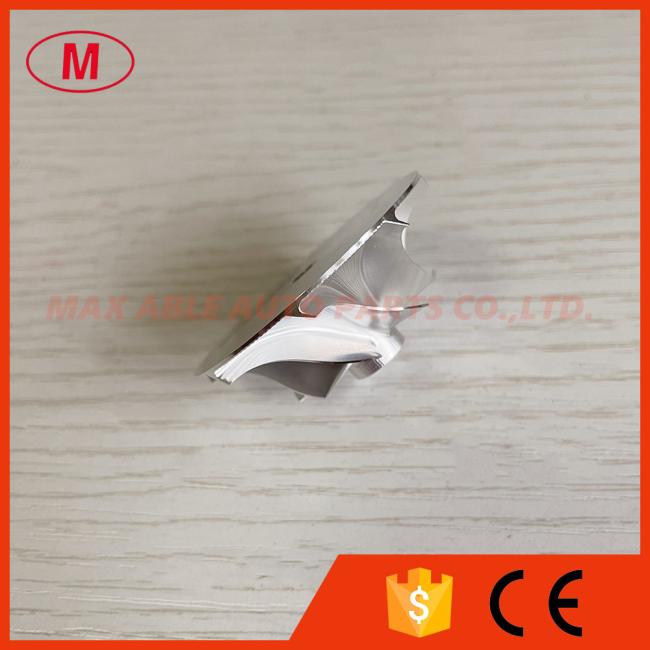

RHB5 NN136003 28.03/45.00mm 8+0 blades turbo milling/Aluminum 2618/billet compressor wheel for MVI,MVIE Penta(marine)

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description
1. MODEL: RHB5 forward​
2.RHB5 NN136003 28.03/45.00mm 8+0 blades turbo Billet/milling/Aluminum 2618 compressor wheel for MVI,MVIE Penta(marine)/TMD2003/TMD/2003T/2003TB/2003TB-SOLAS
3.Size:
Nose diameter:9.90mm
Inducer:28.03mm
exducer:45.00mm
Tip height:3.32mm
Superback:0.00mm
bore size :5.11mm
Overall height:18.23mm
Cutback:1.0
Splitter height:0.00
SP height angle:0.00
Trailing Angle:50
Blade height:14.55mm
8+0 blades forward
It is for OE compressor housing
Tapered tip Angle:0 degree
4.High quality and competitive price.
5.if you want more details, please send email to me.
All the billet wheels have been balanced.
