HX40 60.00/85.00mm 11+0 blades point milling high performance Turbocharger milling/Aluminum 2618/billet compressor wheel

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days
Brand: NO
Product Description

1. MODEL:HX40 Forward

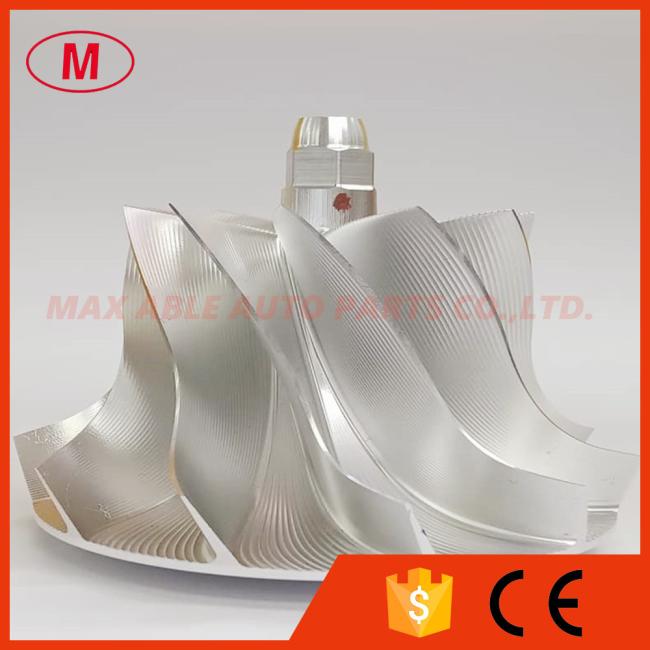

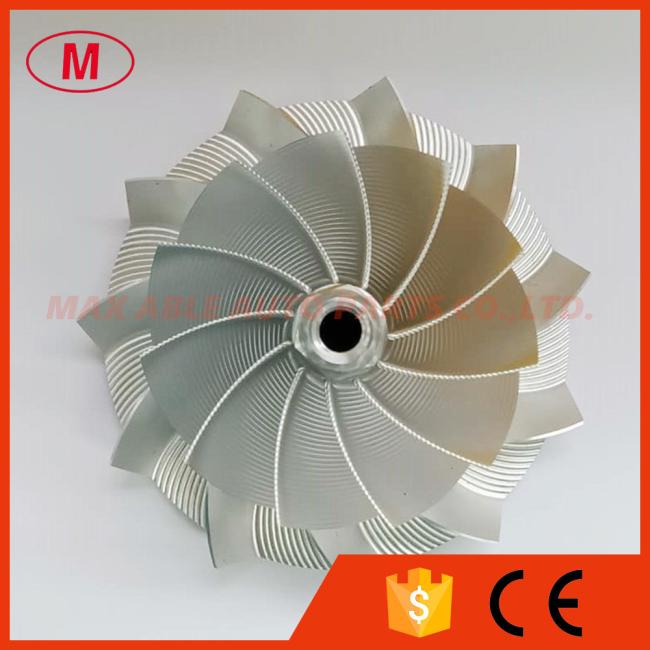

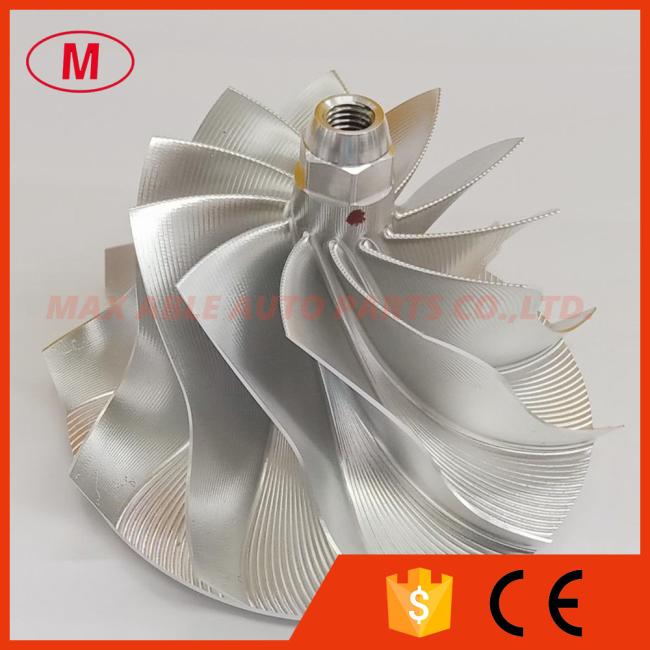

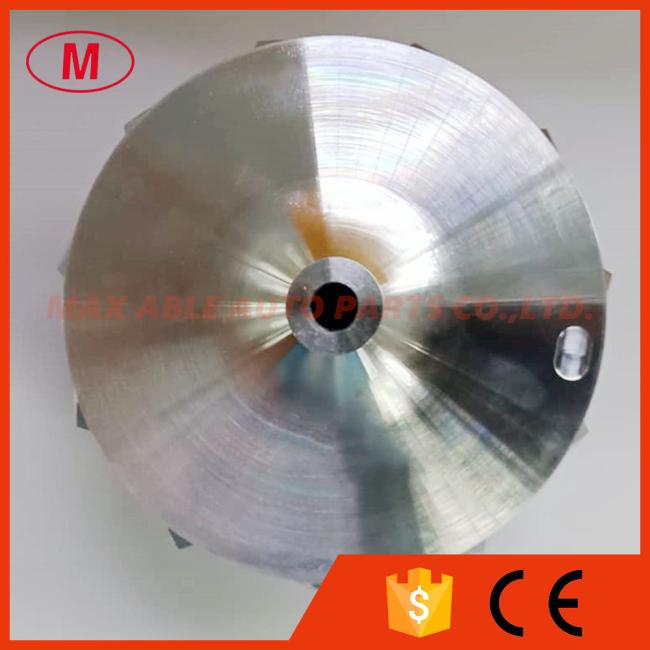

2.HX40 60.00/85.00mm 11+0 blades point milling high performance Turbocharger milling/Aluminum 2618/billet compressor wheel

3.Size:

Nose diameter:14.08mm

inducer:60.00mm

Exducer:85.00mm

Tapered tip exducer:92.00mm

Tip height :9.65mm

superback:4.05mm

Bore size:7.00mm

Bore type:Threaded-M7x1.0LHT

Overall height:60.50mm

Trailing angle:60

Cutback:-10.0

Sp Height angle:0.00

Splitter height:0.00mm

Blade height:43.44mm

Tapered tip angle: 22 degree

11+0 blades Forward rototion

It is custom size ,please check carefully before buying.

4.High quality and competitive price.

5.Any questions please send email to me.





skype : maxabledieselparts

wechat/whatsapp:+86-18018657719
