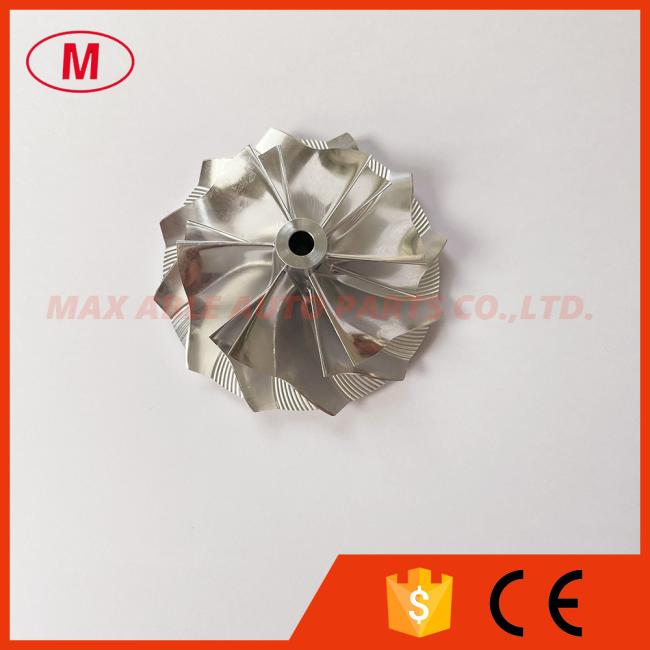

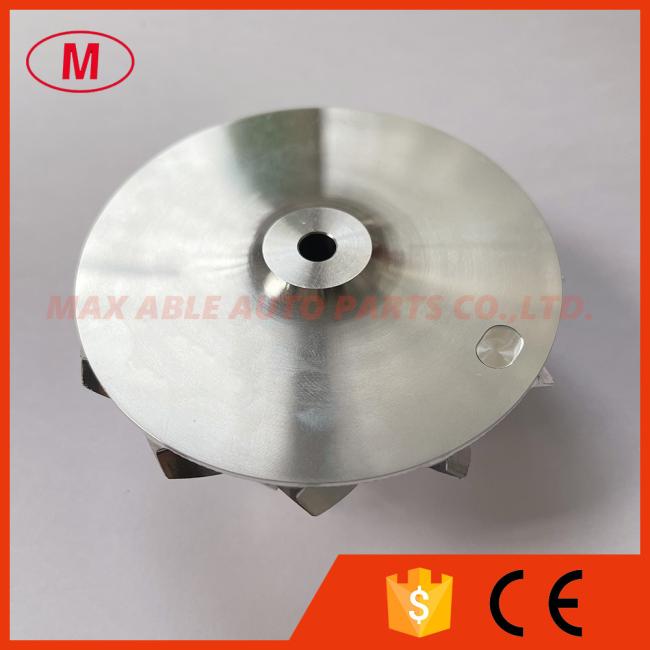

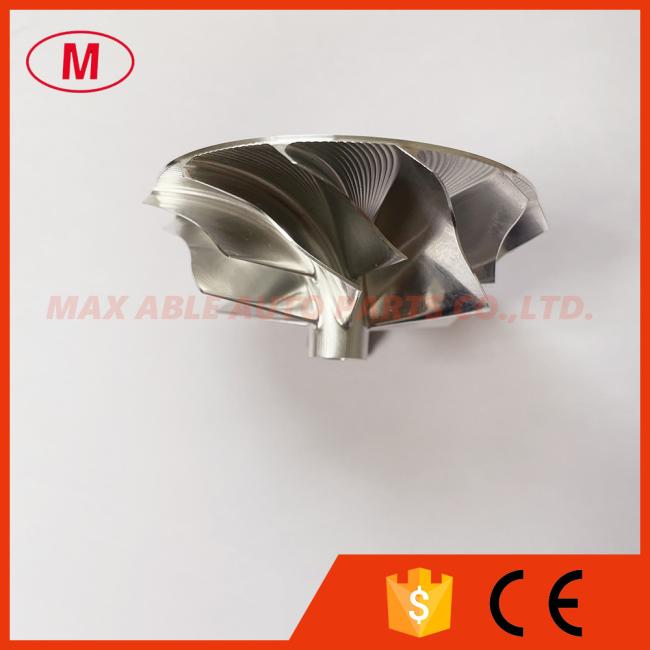

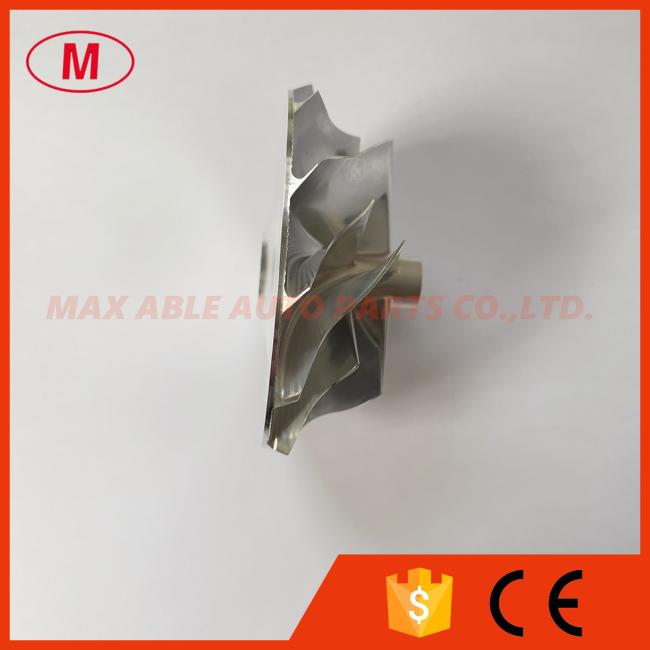

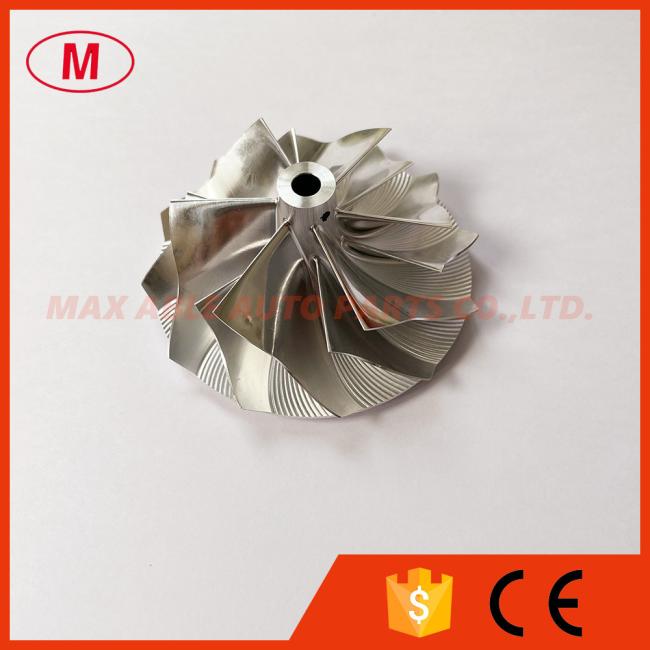

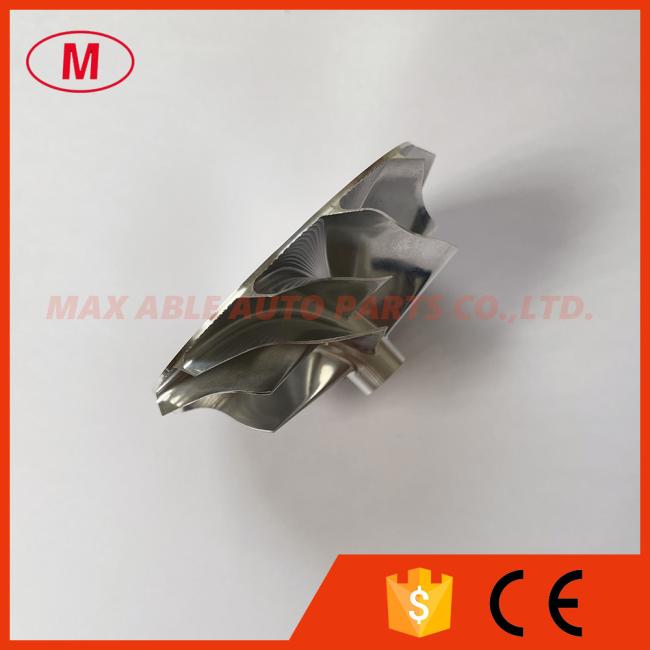

K16 56.07/70.00mm 6+6 blades 5324-123-2206 Upgrade high performance turbo milling/aluminum 2618/billet compressor wheel

1. MODEL:K16 forward

2.K16 56.07/70.00mm 6+6 blades 5324-123-2206 Upgrade high performance turbo milling/aluminum 2618/billet compressor wheel for 1855-970-0000 Upgrade  Audi TTRS

3.Size:

Nose diameter:11.03mm

inducer:56.07mm

Exduder:70.00mm

Tapered tip exducer:74.42mm

Tip height:4.83mm

Superback:2.67mm

Overall height:32.32mm

bore size :5.41mm

bore type:through

Trailing Angle:60 degree

Cutback:8.0

SP height angle:0.00

Blade height:23.72mm

Splitter height:15.35mm

6+6 blades

forward rotation

It is Custom size,please check carefully before buying.

Tapered tip Angle: 30 degree

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

The more models we also have.
