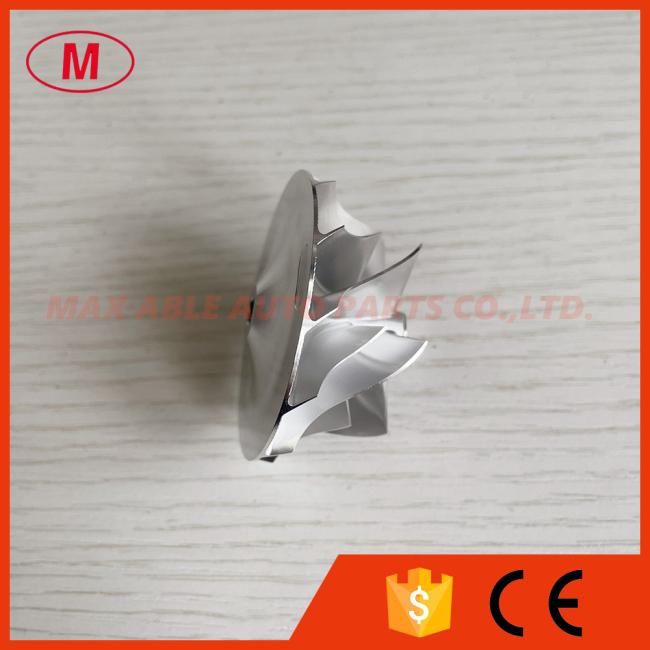

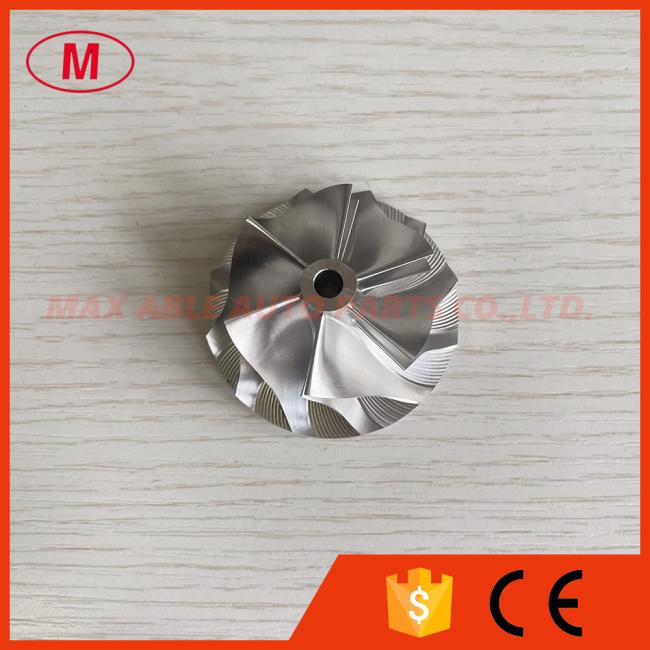

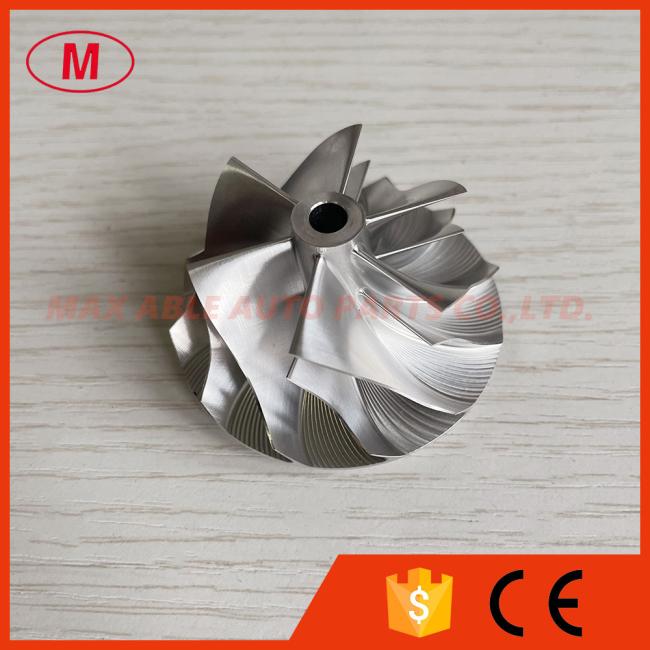

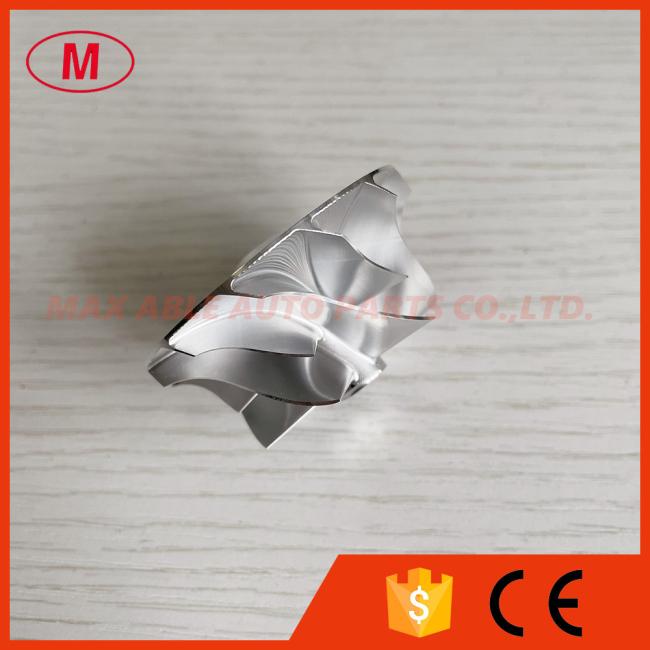

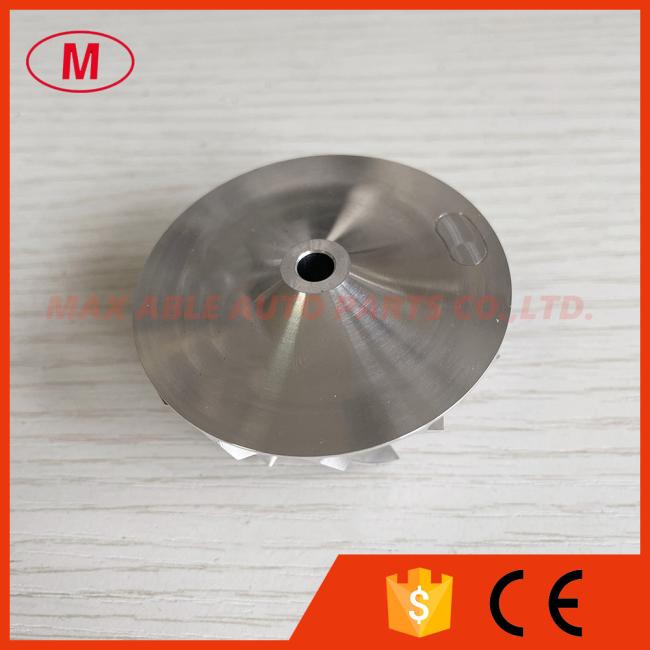

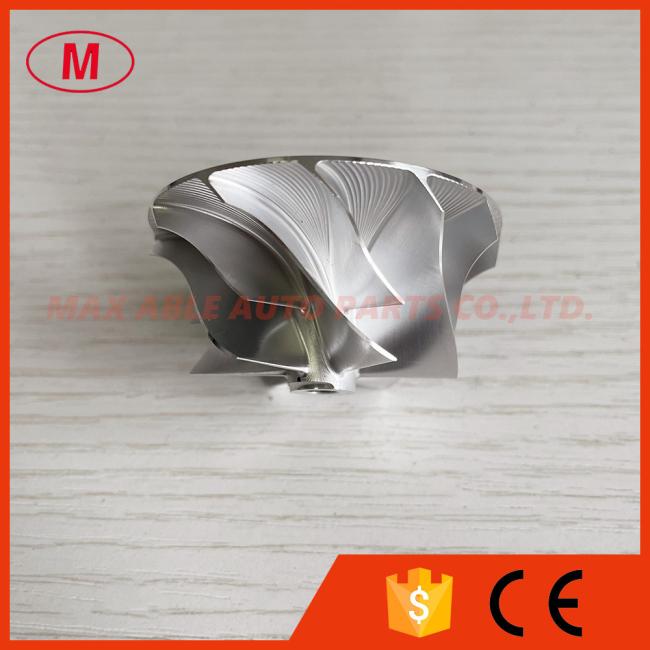

RHF4V 39.34/52.50mm 6+6 blades Turbocharger milling/aluminum 2618/billet compressor wheel for VB17 TOYOTA

Price Negotiable
Price: Negotiable
MOQ: 1PC
Delivery Time: 3-7 days after payment
Product Description
1. MODEL:RHF4V forward
2.RHF4V 39.34/52.50mm 6+6 blades high performance Turbocharger Billet/milling/aluminum 2618 compressor wheel for VB17 toyota
3.Size:
Nose diameter:9.92mm
Inducer:39.34mm
exducer:52.50mm
Tip height:4.94mm
Superback:3.74mm
bore size :5.10mm
Overall height:28.66mm
Trailing angle:45 degree
Cutback:0.0
SP Height angle:-7.00
Blades height:22.65mm
Splitter height:15.35mm
6+6blades
forward rotation
Tapered tip angle:0 degree
It is for OE compressor housing
4.High quality and competitive price.
5.if you want more details, please send email to me.

All the compressor wheel have been balanced.

Skype: maxabledieselparts

Wechat/Whatsapp:+86-18018657719
