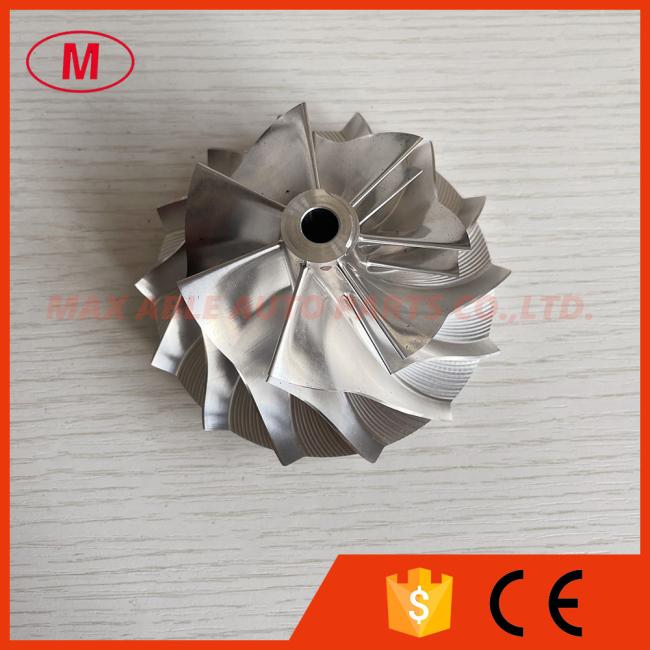

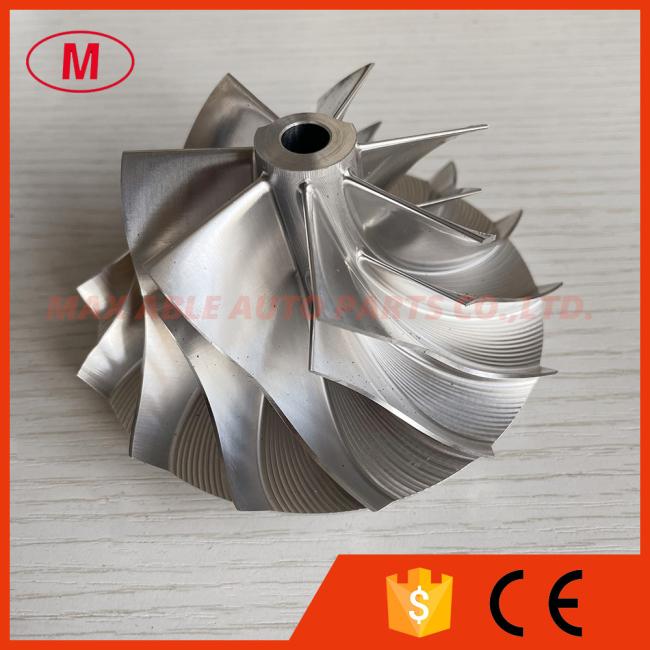

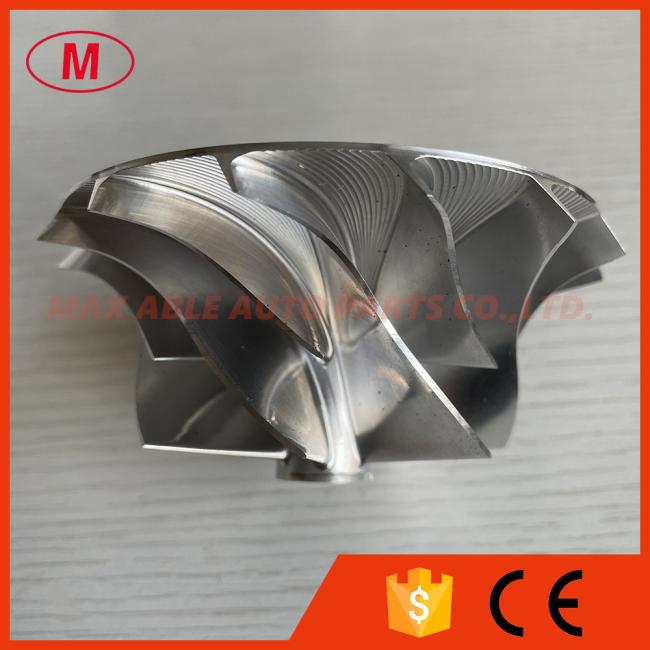

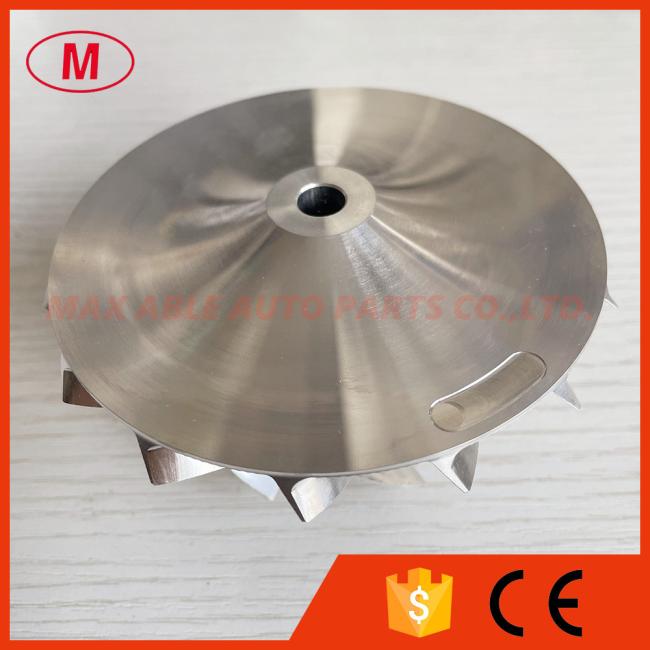

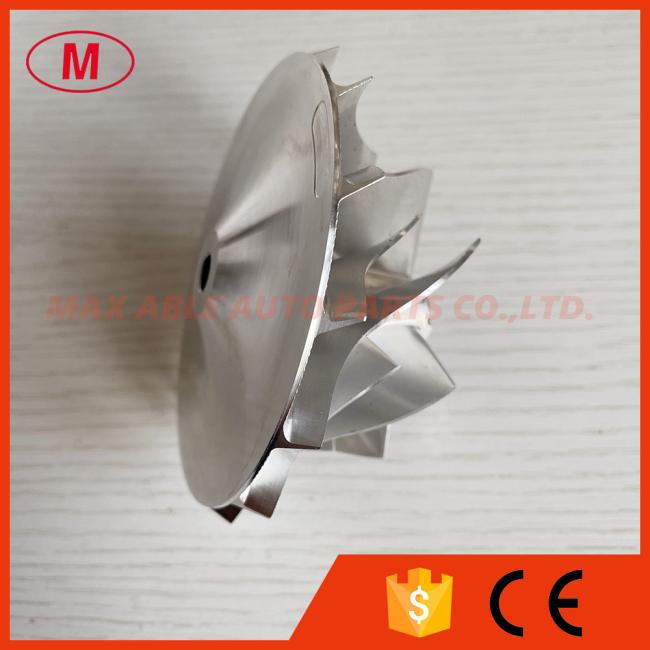

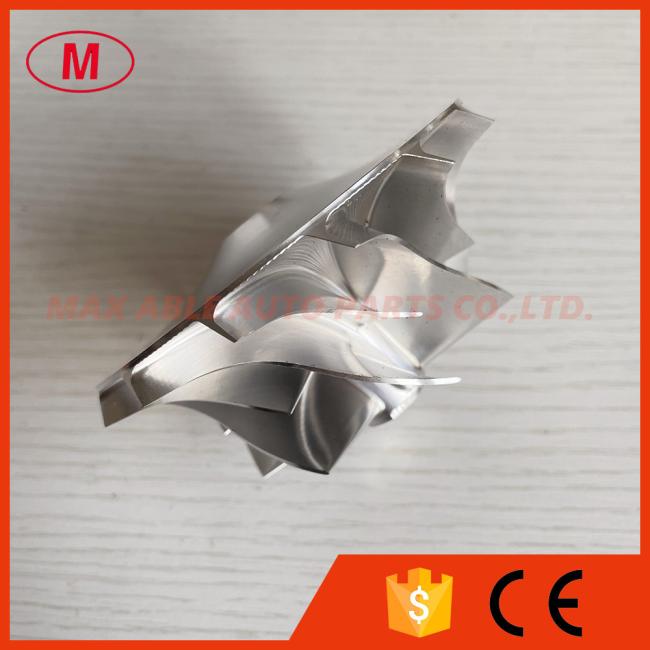

S300 66.10/92.61mm 7+7 blades 171449 turbo milling/aluminum 2618/billet compressor wheel for S366

1. MODEL:S300 forward rotation

2. S300 66.10/92.61mm 7+7 blades 171449 turbo milling/aluminum 2618/billet compressor wheel for S366

3.Size:

Nose diameter:16.73mm

inducer:66.10mm

Exduder:92.61mm

Tapered tip exducer:99.44mm

Tip height:6.91mm

Superback:6.95mm

Overall height:50.58mm

bore size:8.01mm

bore type:through

Trailing Angle:45 degree

Cutback:5.9

SP height angle:-4.80

Blades height:40.35mm

Splitter height:24.75mm

Tapered tip Angle: 30 degree

7+7 blades

Forward rotation

It is for OE compressor housing.

4.High quality and competitive price.

5.if you want more details, please send email to me.

We can produce as your requirement.

All the turbine shaft and compressor wheel have balanced .

The more models we also have.
