EPDM Self Adhesive Waterproof Membrane for Easy Application and Waterproofing Project
Self adhesive EPDM rubber waterproof membrane
EPDM Self adhesive waterproof membrane is made from ethylene propylene diene monomer (EPDM), adding into some chemical auxiliaries, for example, carbon black, nanophase modifier, plasticizer, vulcanization accelerator and glue releasing film on the surface, it is one kind of polymer waterproof membrane with excellent performance elasticity.
| Thickness | 0.5mm, 1.0mm, 1.2mm, 1.5mm, 2.0mm. |
| Roll Length | 20m or customized |
| Width | 1m, 1.2m, 1.5m, 2.0m, 3m or customized |
| Color | black, white. |
Type1 EPDM Smooth Surface
Type2 laminated fabric on the surface
Type3 EPDM Membrane with one side self-adhesive
Type4 EPDM Membrane with two sides self-adhesive
| No. | Items | JL1 | JL2 | |
| 1 | Tensile Strength (MPa) | 23℃ | ≥7.5 | ≥4.0 |
| 60℃ | ≥2.3 | ≥0.8 | ||
| 2 | Breaking Elongation | 23℃ | ≥450% | ≥400% |
| -20℃ | ≥200% | ≥200% | ||
| 3 | Tear Strength kN/m | ≥25 | ≥18 | |
| 4 | Impermeability, 0.3Mpa, 30 minutes | No leaking | No leaking | |
| 5 | Low Temperature Flexibility | -40℃ | -30℃ | |
| 6 | Thermal Stability (mm) | Extend | ≤2 | ≤2 |
| Shrink | ≤4 | ≤4 | ||
| 7 | Hot Air Aging (80℃×168h) | Tensile Retention | ≥80% | ≥90% |
| Breaking Elongation Retention | ≥70% | ≥70% | ||
| 8 | Alkali Resistance, Saturated Ca(OH)2 Solution, 23℃×168h | Tensile Retention | ≥80% | ≥80% |
| Breaking Elongation Retention | ≥80% | ≥90% | ||
| 9 | Ozone Aging(40℃×168h) | Elongation 40%, 500pphm | No crack | No crack |
| 10 | Artificial Weathering Aging | Tensile Retention | ≥80% | ≥80% |
| Breaking Elongation Retention | ≥70% | ≥70% | ||
| 11 | Bonding Peel Strength (Sheet and Sheet) | N/mm (Standard Test Conditions) | ≥1.5 | ≥1.5 |
| Soaking Retention Rate(23℃×168h) | ≥70% | ≥70% | ||
1) Good weather fastness and dimensional stability.
2) Excellent performance to high and low temperature (-40℃ ~ +80℃), UV resistant and anti-corrosion.
3) Higher tensile strength and better extensibility under normal construction conditions.
4) Easy installation, solid joint, and no environmental pollution.
5) Good rooting penetration resistance.
1) Roofs, basement, toilet, bridge, underground, tunnel and dam.
2) Industrial and civil building waterproof.
3) Geo-synthetic liner for swimming pool, channels, irrigation system.
4) Especially for projects with high requirements in durability, anti-corrosion and deformation.

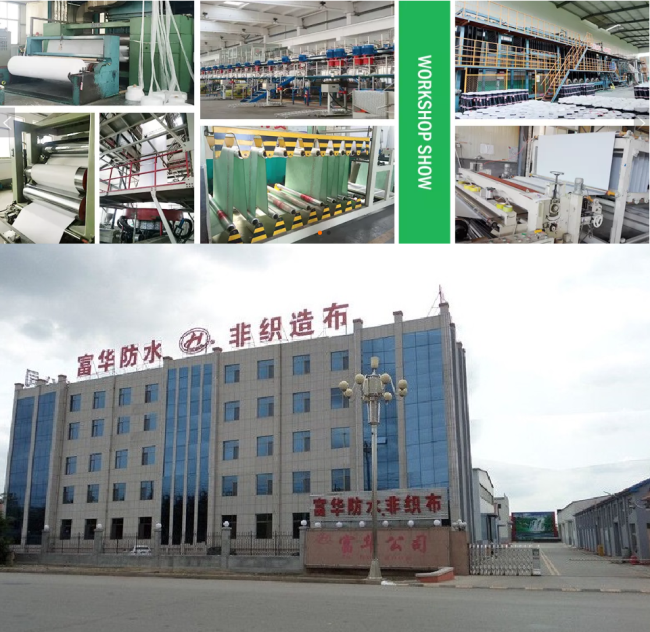

Fuhua Waterproofing technology Co., Ltd is one professional manufacturer in waterproof materials. It was built since 1998 and covers an area of more than 30,000 square meters, with registered capital USD1,500,000. The company is located in Shouguang City, Shandong Province.
Q1:How to get the sample?
A :We can provide you free samples for quality inspection.
Q2:What's are the MOQ?
A :The MOQ is 500 square meters usually.Also we can according to your condition to set the MOQ.
Q3:How about the delivery time?
A :Delivery time about 7days after your deposit or L/C at sight.
Q4:Can we visit your factory to inspect the goods for the order?
A :Welcome to visit our factory to inspect the quality.We sincerely hope to establish a honest business relationship.
