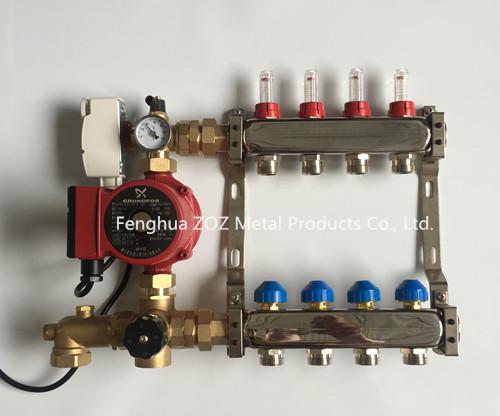

4 Loop Heating Manifold with Mixing Valve and Pump
Stainless steel 304L Heating Manifolds
Material: Stainless steel 304
Pipe body height:40.7mm x 40mm
Available size: 1” BSP Female
Thickness: 1.6mm
Branch pipeline quantity: 2 - 12 loop
Water Outlet distance: 50 mm
Finish: Hand polished
Manifolds are manufactured from Stainless steel 304L 40.7+/_0.2 mm diameter tube.

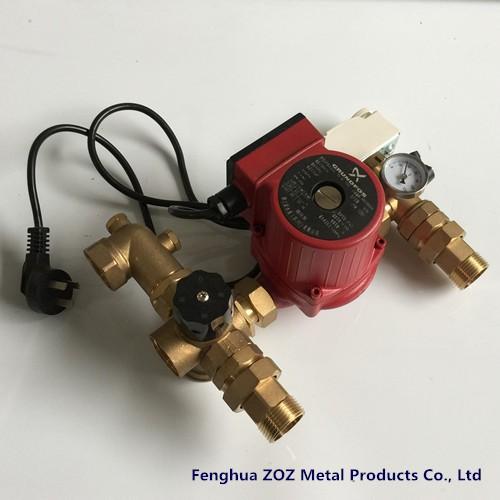

Underfloor Manifold with Grundfos Pump Set with Mixing Valve
Center distance: 210mm
Maximum static Pressure - 16 bar
Maximum Temperature - 110 deg C
Adjustable control range 35-65 deg C

Stainless Steel Hydronic Underfloor Heating Manifold 4 L:oop
ZOZ hardware is manufacturer of radiant floor heating systems
Our specialize in heating systems radiant floor heating manifolds production
100% leakage testing
Certificate: ISO9001,CE,ROHS
A warranty of 5 years applies to the stainless steel manifolds , warranty of 3 years applies to the manifold accessories.
LCL order:15days
Full container order:25days
Exports to Europe and United States
