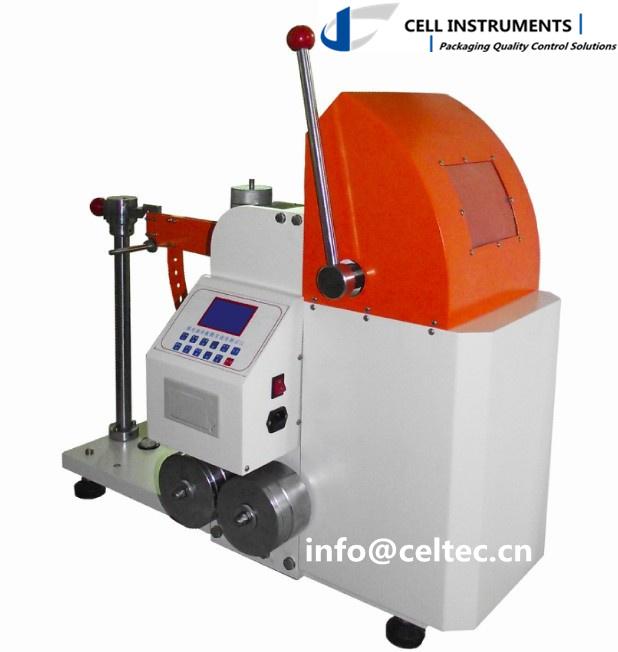

Board puncture resistance tester Cardboard puncture force tester ISO 3036 DIN 53142 Paperboard Stiffness Tester
Board puncture resistance tester measures the energy required to puncture board with a pyramidal head affixed to a pendulum arm. This energy includes the energy to tear the material and the energy to bend it out of the way of the point.
Board puncture resistance tester features
1. PVC menu type operation panel
2. Microcomputer control with data statistics, storage and printing function
3. Auto measuring and intelligent judgment, real time display of test result
4. Four gears adjustable
5. Protection design and stable performance
Board puncture resistance tester technical data
| Test range | (1~48)J |
| Four gears | A ＜6J; B＜12J; C＜24J; D＜48J |
| Resolution | 0.001J |
| Pressure head | (100±2)kpa |
| Friction sleeve resistance | ＜0.25J |
| Pyramidal head | edge length 60mm×60mm×60mm height 25±0.7mm |
| Dimension | 900mm*410mm*800mm |
Board puncture resistance tester Standards
ISO 3036 Board -- Determination of puncture resistance
ASTM D 781 standard test methods for puncture and stiffness of paperboard,and corrugated an solid fiberboard
DIN 53142 Testing of board; puncture test
TAPPI T 803 Puncture test of container board
