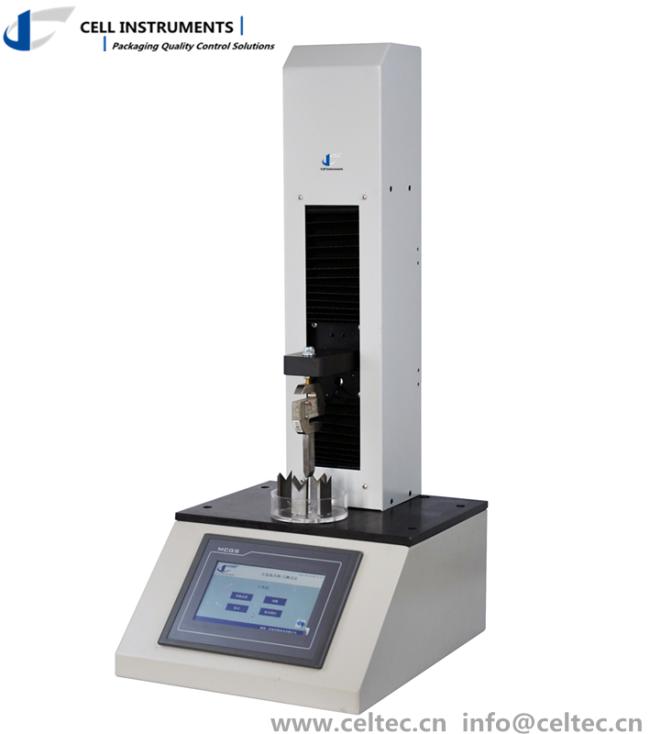

Ampoule Bottle Breaking Tester Iso 9187 Drop Test Equipment Burst Test Equipment Puncture Resistance Test
Price:
Get An Offer
MOQ:
1 SET
Delivery Time:
3~5 days
Brand:
Cell Instruments
Product Description

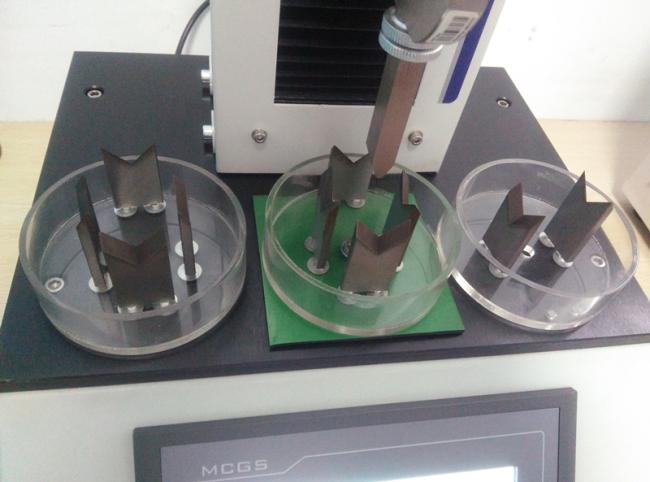

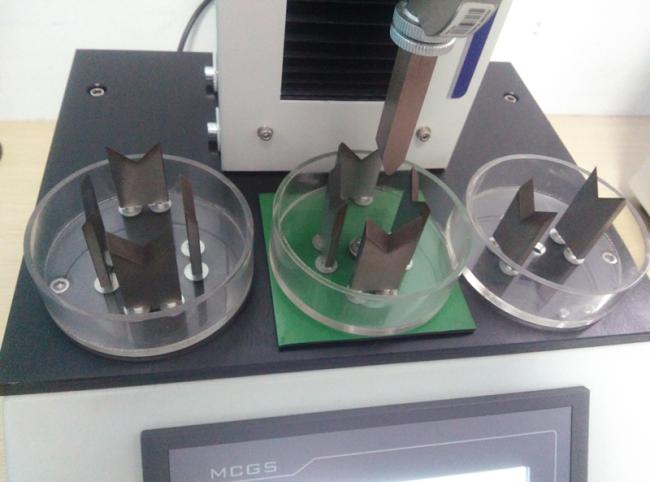

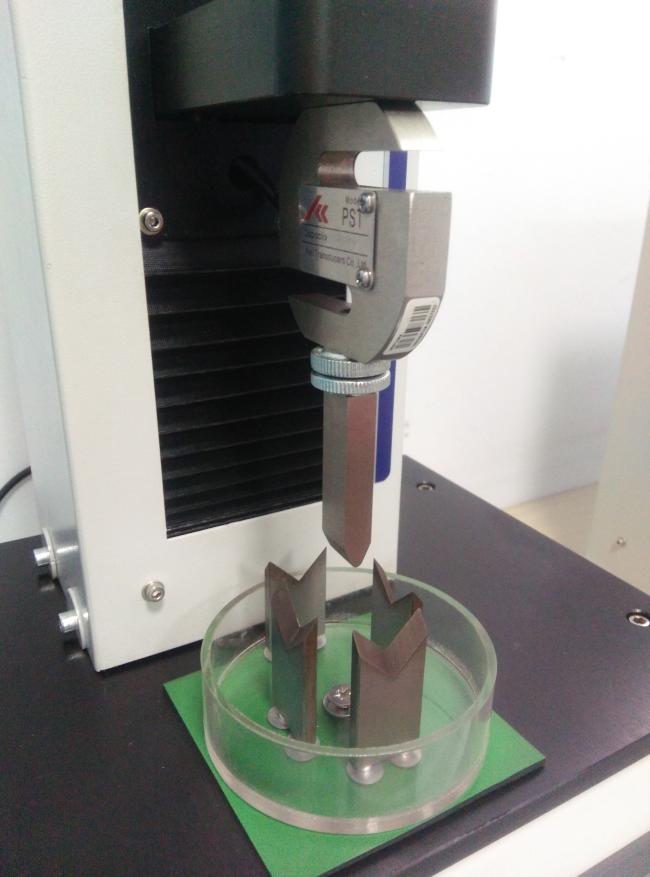

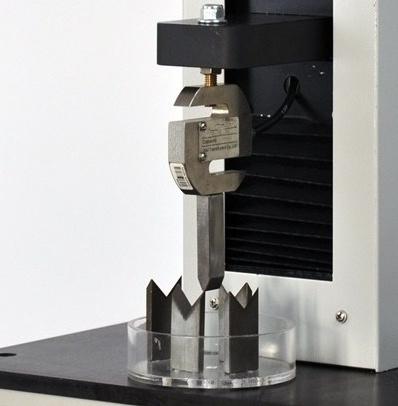

Ampoule bottle breaking tester DIN/ISO 9187 is used to measure the force to separate the ampoule and neck. A proper breaking force of the neck is crucial for both the pharmaceutical safety and clinical application.
Ampoule bottle breaking tester DIN/ISO 9187 Features
1. 7 inch TFT touch screen operation .
2. PLC programmable logic controller
3. Precision ball screw for accurate speed and displacement.
4. Different specifications of 1ml,2ml,5ml,10ml,20ml,capacity test fixtures
5. Test speed is adjustable.
6. Microprinter for easy data output
7. RS 232 and professional software (optional)
8. Multiple fixtures available for other types of pulling and compression tests used in medical packaging
9. Limiting device and automatic returning function
Ampoule bottle breaking tester DIN/ISO 9187 technical specifications
|
Test Range
|
0-200N (Standard) |
|
Speed
|
10 mm/m (other speeds available) |
|
Dimension
|
400mm (L) ×340mm (W) ×800mm (H) |
|
Power
|
AC 110~220V |
