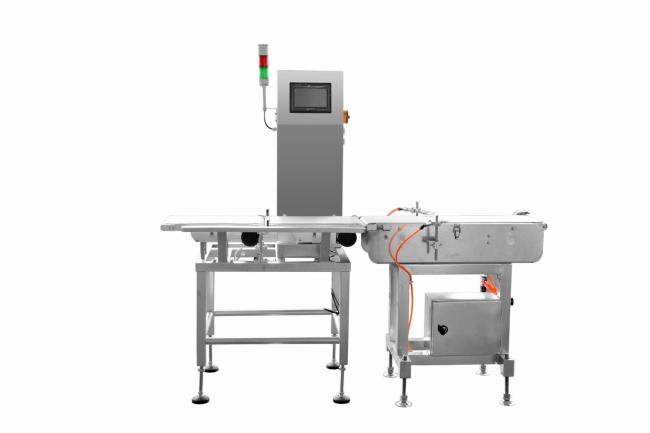

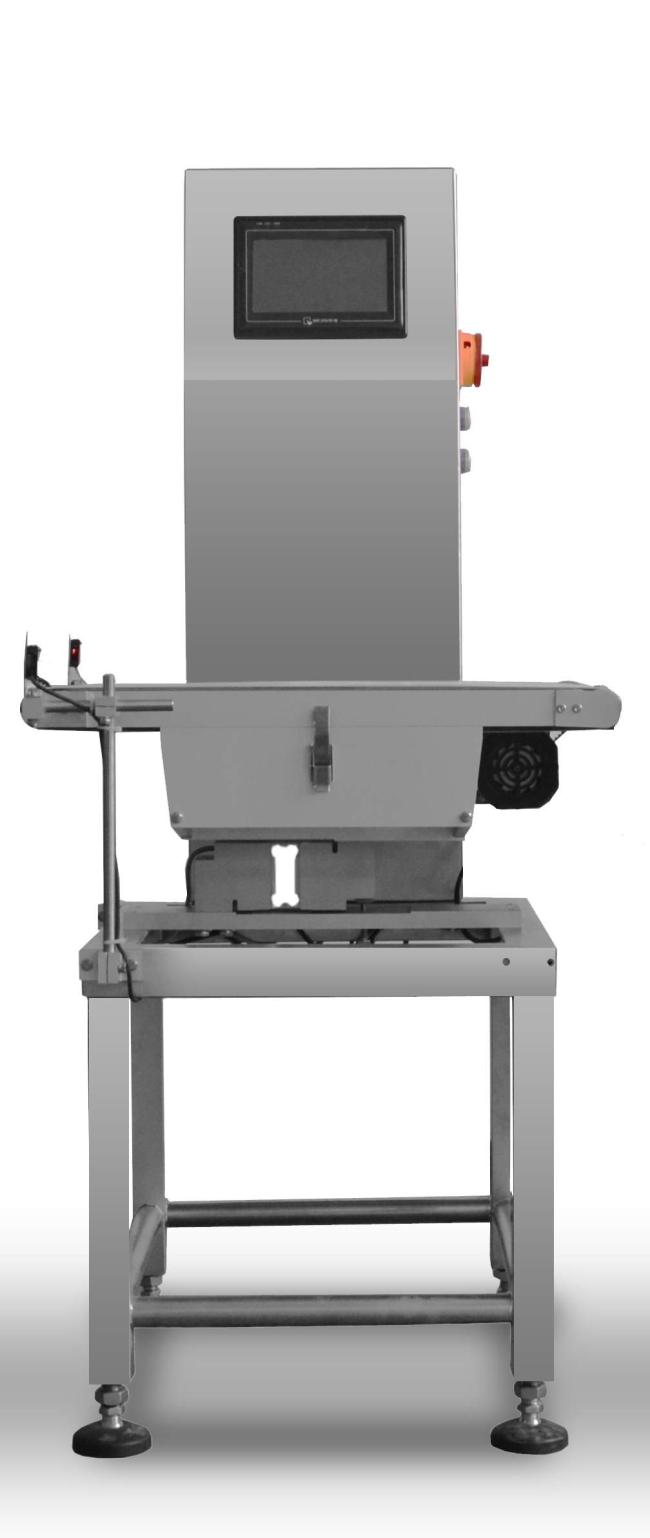

check weigher JL-IXL-230 for small product weigh sorting(high speed with high accuracy
check weigher,weight check machine,weight sorting machine,weight sort machine,online check weigher,online weight checker,online weigher,online weight sorting machine,online weight pick
1 High speed, high sensitivity, high stability dynamic weight checking
2 Accurate and efficient rejector system
3 Professional human-machine interface design;
4 User-friendly features:
5 top-level craft, professional mechanical design;
6 Good environmental adaptability and stability;
7 brief user parameter setting
Detecting Range
10~600g 20~2000g 20~2000g 20~5000g 0.2~10kg 0.5~20kg
Scale Interval 0.5g 0.1g 0.1g 0.2g 1g 1g
Accuracy 0.1g 0.2g 0.2g 0.5g 1g 2g
Detecting Speed(Max speed)
250pcs/min 200pcs/min 155pcs/min 140pcs/min 105pcs/min 75pcs/min
Belt Speed
70m/min 70m/min 70m/min 70m/min 70m/min 60m/min
The weighed product size
Width 150mm 220mm 220mm 290mm 390mm 490mm
Length 200mm 250mm 350mm 400mm 500mm 700mm
Weigher platform size
Width 160mm 230mm 230mm 300mm 400mm 500mm
Length 280mm 350mm 450mm 500mm 650mm 800mm
Operation Screen 7-inch Touch LCD Screen
Product Storage Quantity 100 kinds
Segments Number of Sorting 2 or 3
Rejecter Rejecter Optional
Power Supply 220V (Optional)
Degree of Protection IP30/IP54/IP66
Body Material Stainless Steel (SUS304)
| Weight capacity | 10~600g | 20~2000g | 20~2000g | 50~5000g | ||
| Mini scale | 0.05g | 0.1g | 0.1g | 0.2g | ||
| Best accuracy | ±0.1g | ±0.2g | ±0.2g | ±0.5g | ||
