High Accuracy Broken Needle Detector Jc-600-P metal detector (Support Print) for Garments, Toys, Textile

metal detector,needle detector,detector metal,detector needle,detector de metal,needle detection,broken needle detector,industrial metal detector,needle metal detecteor,hashima needle detector,oshima needle detector,conveyor needle detector,conveyor metal detector,Conveyor belt metals detector,oshima metal detector,hashima metal detector,easement metal detector,easement needle detector,food metal detector,metal detector for foods,metal detector for knitting

Automatic conveyor type
[Range of Application]
It can be used to detect underwear, shirts, knitted sweaters, down and feather garments, shoes, scoks, beddings as well as plush medium and small toys.




[Main features]
1. ABS plastic shell.
2. Cycled, 9 pairs of scnsor, excellentanti-disturbance performance.

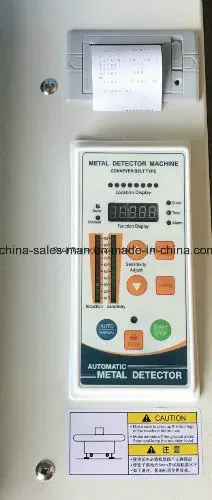

3. Based on LED bar displayed control panel.
4.Support print function, to support out the work record,
5. Smart counter.
6. Hi accuracy detection locating technology, LED indication.
6. Alarm functions can be divided into three types, saying sound, lamplight and frequency display.
7. Optional conveying mode after alarm; Optional automatical restart.
8. Reliability mechanical frame design, Hi stable during detection.
9. Designed for universal AC power supply, switch power supply.

Automatic conveyor type
[Range of Application]
It can be used to detect underwear, shirts, knitted sweaters, down and feather garments, shoes, scoks, beddings as well as plush medium and small toys.




[Main features]
1. ABS plastic shell.
2. Cycled, 9 pairs of scnsor, excellentanti-disturbance performance.
3. Based on LED bar displayed control panel.
4.Support print function, to support out the work record,
5. Smart counter.
6. Hi accuracy detection locating technology, LED indication.
6. Alarm functions can be divided into three types, saying sound, lamplight and frequency display.
7. Optional conveying mode after alarm; Optional automatical restart.
8. Reliability mechanical frame design, Hi stable during detection.
9. Designed for universal AC power supply, switch power supply.




[ SPECIFICATIONS]
Model: JC-600/P100MM
Detection method: Magnetic induction
Detection sensitivity: 0.8mm steel to samll scissors
Detection adjustment: 10step
Detection width: 600mm
Alarm method: BuzzerLamp
Belt speed: 32m/min(50Hz)40m/min(60Hz)
Power source: AC200-240V 50-60Hz
Rated output: Appr140W
Dimension: 1650mm(L)*1050mm(W)*900mm(H)
Weight: Appr220Kg

Model	Tunnel width	Tunnel height	Detection sensitivity
JC-600/P80	600MM	80MM	>=0.8mm
JC-600/P100	600MM	100MM	>=0.8mm
JC-600/P150	600MM	150MM	>=1.0mm
JC-600/P200	600MM	200MM	>=1.2mm
JC-600/P300	600MM	300MM	>=2.0mm
JC-600/P450	600MM	450MM	>=3.0mm
