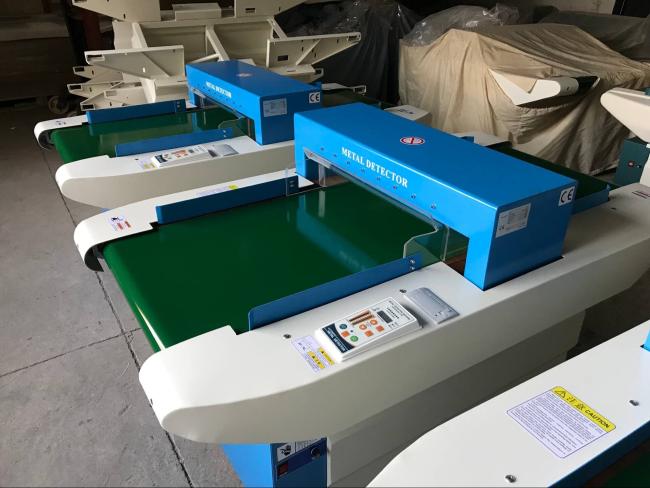

needle detector JC-600/P100 metal detector (support print) for garment,toys,shoes product inspection
needle detector, metal detector, needle detectors, industrial metal detector, automatic metal detector, metal detector machiner, metal detector equipment, tunnel metal detector,belt metal detector,garment needle detector,garment metal detector,apparel needle detector,sock metal detector,sock needle detector,shoes metal detector,shoes needle detector,toy metal detector,toy needle detector,textile metal detector,textile needle detector,cloth metal detector,cloth needle detector,needle detection machine,metal detection machine,needle check,metal check,check needle,check metal,find metal,find needle,digital metal detector, electronic metal detector,broken needle detector
Automatic conveyor type
[Range of Application]
It can be used to detect underwear, shirts, knitted sweaters, down and feather garments, shoes, scoks, beddings as well as plush medium and small toys.
[Main features]
1. ABS plastic shell.
2. Cycled, 9 pairs of scnsor, excellentanti-disturbance performance.

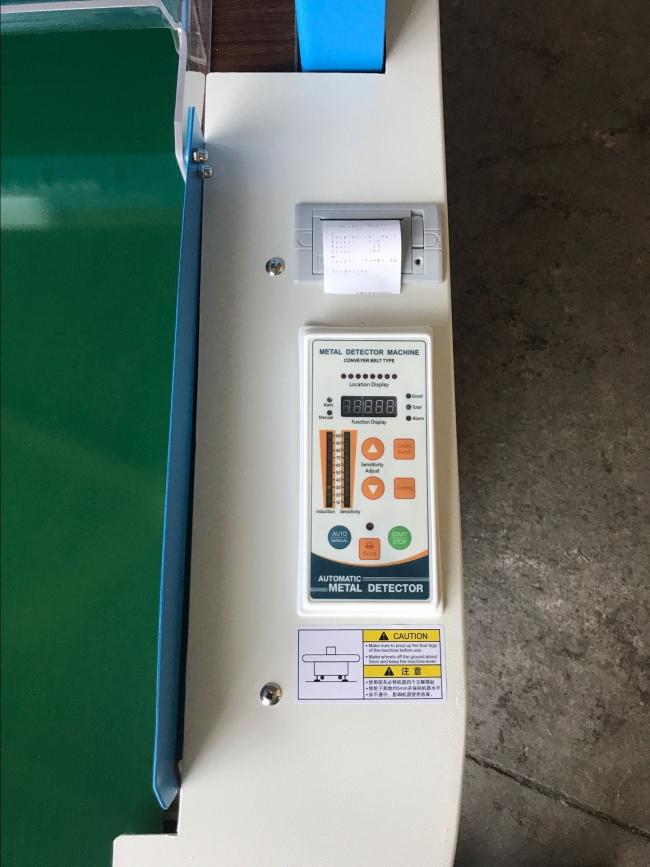

3. LCD display screen with english language.Based on LED bar displayed control panel.
4. Smart counter.
5. Hi accuracy detection locating technology, LED indication.
6. Installed printer inside of the machine, it support to print out daily detection record,
7,Alarm functions can be divided into three types, saying sound, lamplight and frequency display.
8. Optional conveying mode after alarm; Optional automatical restart.
9. Reliability mechanical frame design, Hi stable during detection.
10. Designed for universal AC power supply, switch power supply.
[SPECIFICATIONS]
| Model: | JC-600-P |
| Detection tunnel width: | 600mm |
| Detection tunnel height: | 80mm/100mm/120mm/150mm/200mm/250mm/300mm/ |
| Conveyor belt width : | 570mm |
| Motor output : | 200W |
| Speed(m/min): | 25m/m |
| Display/Operation Panel | LED display with button design |
| Display/Operation Language | English/Chinese |
| Alarm method: | Alarm and lamp flash to stop transfer |
| Conveyor belt: | Flat PVC belt |
| Power: | AC110V/220V 50-60hz |
| Net Weight:200-250kgs | 250kgs |
| Detection height | Detection Sensibility |
| 100mm | Fe or steel 0.8mm |
| 120mm | Fe or steel 1.0mm |
| 150mm | Fe or steel 1.2mm |
| 200mm | Fe or steel 1.5mm |
More info about needle detector,metal detector,conveyor metal detector, pls refer http://www.bjtoptech.com
