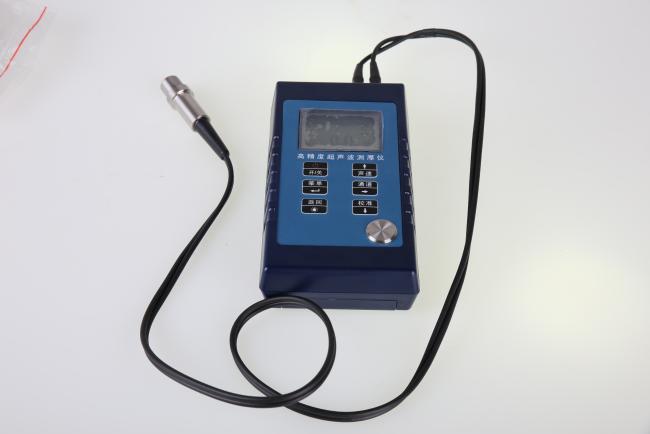

RTG-900 Wall Thickness gauge, Ultrasinic thickness gauge, UT thickness meter, thickness tester



RTG-900 Wall Thickness gauge, Ultrasinic thickness gauge,

UT thickness meter, thickness tester



RTG-900 is an advanced nondestructive testing instrument, it can accurately measure all kinds of

plank and machining parts, widely used in petroleum, chemical industry, metallurgy, shipbuilding,

aviation, aerospace and other fields.

RTG-900 can be used for any good ultrasonic conductor thickness measurement, such as metal,

plastic, ceramic, glass, composites, epoxies etc.


Parameter:

Measurement range: 0.65~500mm (steel probe segmented applicable)

Display resolution:0.01mm,0.1mm

Material Velocity: 508 ~ 9999m / s

Accuracy: ± (1% H +0.1) mm

Surface measurement limit: Φ10mm × 2.0mm

Receive Bandwidth: 1MHz ~ 10MHz (-3dB)

Power supply: 3VDC (two AA alkaline batteries)

Working time: 280 hours (automatic mode)  100 hours (back-light on)

Display: 128 × 64 dot matrix LCD screen

Dimensions: 140 (L) × 80 (W) × 40 (H) mm

Weight: 176g (with battery)

Working temperature: -10 ~ 50 ℃ (using the temperature probe, the working temperature: <350 ℃)

Humidity: 20% ~ 90% RH


Features:

English menu operation

Shut down automatically or manually

Identify a variety of probes to meet more measurement needs: 2M, 5M, 7M, ZW5P (high temperature)

Applies to pipe wall thickness measurement

Large-capacity data storage

Metric / inch Optional: Display units can be selected between millimeters and inches

Limit alarm

Measuring the speed of sound

Have a back-light function; measure is suitable for the environment in a bad light


Standard configuration:





Probe specification:
