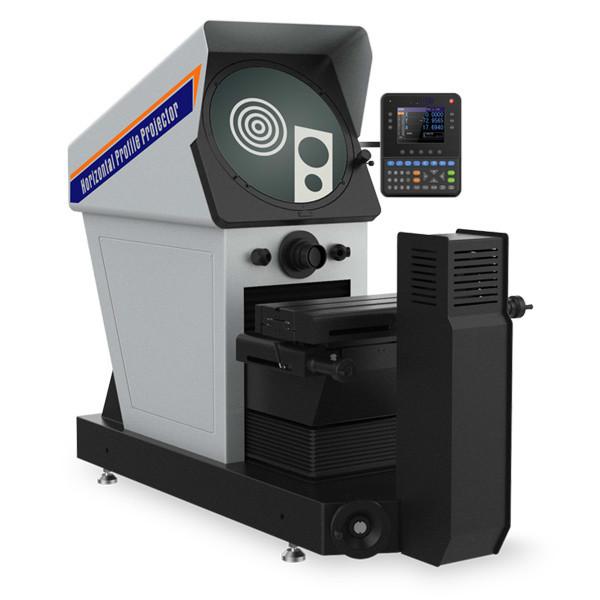

Digital Horizontal Profile Projector, Optical Projector for metal plastic workpiece RPH350-2010
Features:
1. The lifting system adopts cross roller rail and precision screw drive, which makes lifting drive
more comfortable and stable;
2. Coating process reflector, clearer image and great dustproof;
3. Adjustable contour and surface illumination, to meet with difference workpiece demand;
4. Imported high light and long using life LED illumination, to ensure precision measurement
demand;
5. High resolution optical system with clear image and magnification error is less than 0.08%;
6. Powerful Bi-axial fan cooling system,highly increase using life;
7. Powerful and colorful DRO DP400,realized fast and accurate 2D Measurement;
8. Built-in Mini-printer, can print and save data;
9. With standard 10X objective, optional 5X,20X,50X,100X objective,rotary table, foot
switch ,clamp, etc.
Specification:
| Product Name |
Digital Horizontal Profile Projector
|
| Mode |
RPH350-2010
|
| Code # |
512-350
|
| Working Stage Size |
355x126mm
|
| Working Stage Travel |
200x100mm
|
| Focusing |
90mm
|
| Accuracy |
≤4+L/200(um)
|
| Resolution |
0.0005 mm
|
| Loading Weight |
15Kg
|
| Screen |
Screen diameter:φ360mm, Effective range ≥ Ø350mm
|
|
Rotation Angle 0~360° ;Resolution: 1’or 0.01°,accuracy 6’
|
|
| Digital Readout |
DP400 (510-340) Multifunction colorful LCD digital readout
|
| Illumination |
Contour Illumination:3.2V/10W LED；Surface Illumination:220V/130W LED
|
| Working Environmental |
Temp:20℃±5℃,Humidity:40％－70％RH
|
| Power Supply |
AC110V/60Hz; 220V/50Hz,150W
|
Objective lens:
|
Objective Lens
|
RPH350-10X | RPH350-20X | RPH350-50X |
|
Code#
|
512-110 | 512-120 | 512-130 |
|
Field of View
|
φ30mm | φ15mm | φ6mm |
|
Distance
|
75mm | 69mm | 44mm |
