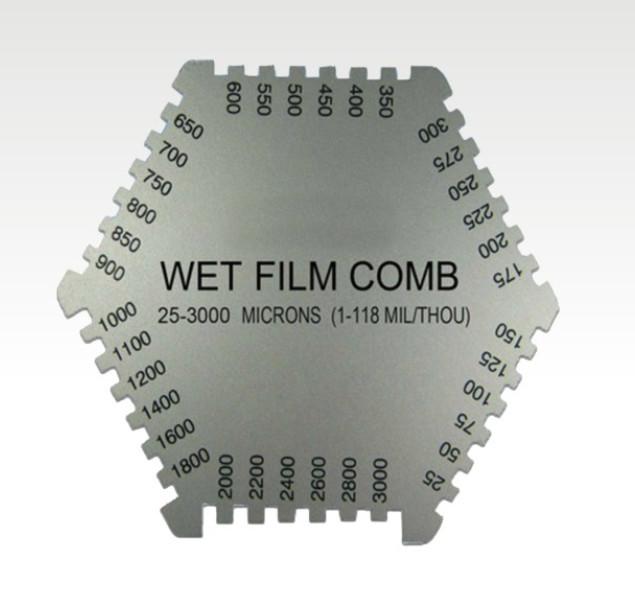

25-3000um Wet Film Thickness Gauge Comb Type, Paint Coating Thickness Tester Meter Gage

25-3000um Wet Film Thickness Gauge Comb Type,

Paint Coating Thickness Tester Meter Gage

25-3000um Wet Film Thickness Gauge Comb Type, Paint Coating Thickness Tester Meter Gage

25-3000um Wet Film Thickness Gauge Comb Type, Paint Coating Thickness Tester Meter Gage

25-3000um Wet Film Thickness Gauge Comb Type, Paint Coating Thickness Tester Meter Gage

Application

Used for checking the thickness coating of wet paint, enamel lacquer, adhensive , architectural

coating, color coating, varnish, chemical industry, or other coating that has been applied to a

smooth surface.

Measuring Procedure

1. Select appropriate comb according to approximate known thickness.

2. Hold comb perpendicular to surface coating to be measured.

3. Press into coating until the comb stands square on substrate.

4. Wet film thickness is between the highest step which is coated and the next (higher) step which

remains uncoated.

Product Parameters

TAG:  Wet Film Thickness Gauge      Wet Paint Thickness Meter

           Coating Thickness Gauge
